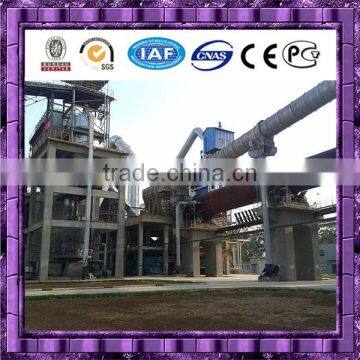

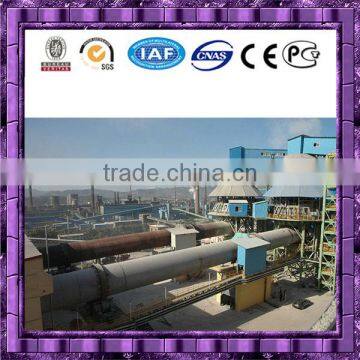

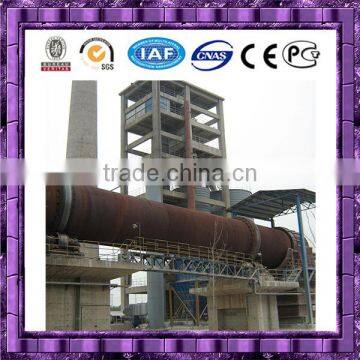

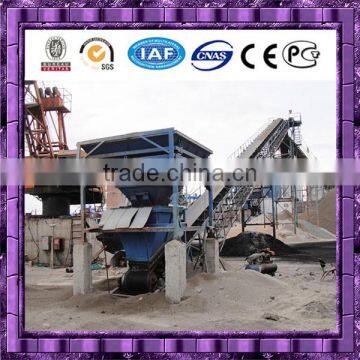

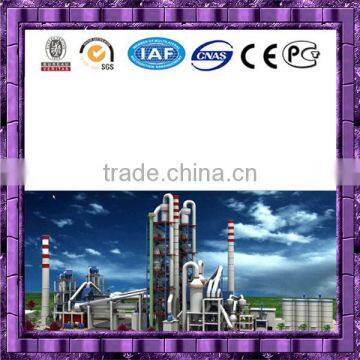

Cement plant construction project provided by Henan Yigong

the equipments are packaged into wooden case, which is suitable for long term transportation

 Cement plant construction project provided by Henan Yigong

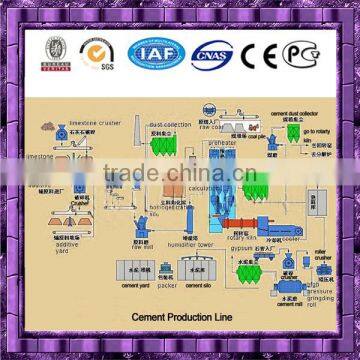

Cement production line introduction

The cement production line includes vibrating feeder, jaw crusher, impact crusher, vertical mill, preheating system, cement rotary kiln, cement ball mill, packing machine and so on.

All necessary equipments in this line can be provided by our factory. We have cement production line experts to design specific solutions for your reference.

Material needed for making cement:

Limestone: Limestone is the main raw material for cement making, but since natural limestone is usually big, we use cement limestone crusher to crush them into small particles.

Bauxite: Bauxite is the addictive. For making cement raw materials, bauxite is crushed by cement equipment into powder. Then bauxite particles and limestone particles together are ground into raw powder by raw mill.

Coal powder: Coal powder is used to be processed into cement clinker. Raw coal is crushed by cement plant then ground by cement coal mill.

Gypsum powder: Gypsum powder made by gypsum crusher and gypsum mill is put into cement clinker together with coal powder, and then the cement raw material enters into the cement mill for fine grinding.

Detailed process of the cement production line

1. Crushing and Preblending

In the cement production line, most of the material need to be broken, such as limestone,clay,iron ore and coal,etc  Limestone is the largest amount of raw material in cement production, after mining the size of limestone is large, with high hardness, so the limestone crushing plays a more important role in cement plant.

2.Raw material preparation

In the cement production line, producing each 1 ton of Portland Cement need grinding at least 3 tons of materials (including raw materials, fuel, clinker, mixed materials,gypsum).Grinding operation consumes power about 60% of total power in cement plants, raw material grinding takes more than 30%, while coal mill used in cement plant consumes 3%, cement grinding about 40%. So choosing the right grinding mills in cement plant is very important.

3. Raw naterials homogenization

Adopting the technology of homogenization could rationally get the best homo-effect and afford an eligible production to the demand

4. Preheating and precalcing

Preheater and precalcing

Preheater and calciner is key equipment for precalcing production technique.

5.Burning cement clinker in a rotary kiln

The calcination of rotary kiln is a key step of cement production, it makes directly influence on the quality of cement clinker.

6.Cement grinding

Cement grinding is used for grinding cement clinker (and gelling agent, performance tuning materials,etc) to the appropriate size (in fineness, specific surface area,said), optimizing cement grain grading, increasing the hydration area, accelerating the hydration rate to meet the requirements of cement paste setting, hardening.

Our company provides Feeder, crusher, predistributing bin, batching station, vertical mill, kiln feeding for raw material, preheater, rotary kiln, coller, clinker bin, cement mill and so on. these equipment is the main part of the cement production line.

Company details:

HENAN YIGONG MACHINERY&EQUIPMENT CO.,LTD. is a modern enterprise engaged in new building-material equipment, metallurge and mineral processing equipment, and it integrates research, development, production, with sales together. The company is located in Zhengzhou city-the transportation junction of China, and was founded in 1978. After 30-year development and evolvement, now the company owns 3 branch companies and 1 machinery research institute. Its land coverage is 50,000O square meters, of which the modern buildings occupy 15,000 square meters. It adopts the modern and scientific management mode, and constantly strives to explore and create novelty products. As a result, it has become a famous enterprise of machinery indu-stry. With many-year accumulation, Henan Chuangxin has collected rich experience in production and management, and hasbrought up a large number of technical staffs and management elites. Nowadays, the company has 660 staffs, among whom 180 are senior and medium-class technical staffs, and the medium-class technicians and above account for 60% of the total.
