Hydraulic Pre-curling And Flanging Machine in Conical Can Line
- 100 Set / Sets per Month
- SHANGHAI
- T/T
You May Like
-
Complete 18 liter square can equipment oil packing machine
-
Semi or Automatic 10-20L Conical Metal Can Making Equipment Lines
-
10-20L Conical Pail Bucket Barrel Can Production Line
-
High Quality Hot Sell 20 liter square can making machine
-
Hydraulic Tin Can Machine for Conical can body forming line
-
Hot 10-20L Paill Bucket Can Making Manufacturing Production Line
Product Details
Condition | New | Automatic Grade | Automatic | |
Usage | Metal Forming Machine | Place of Origin | Jiangxi, China | |
Brand Name | ZY | Model Number | GT3TB20 | |
Voltage | 380V | Power(W) | 5.5KW | |
Dimension(L*W*H) | 1300x700x1750mm | Weight | 900KG | |
Certification | CE | Warranty | ONE YEAR | |
After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

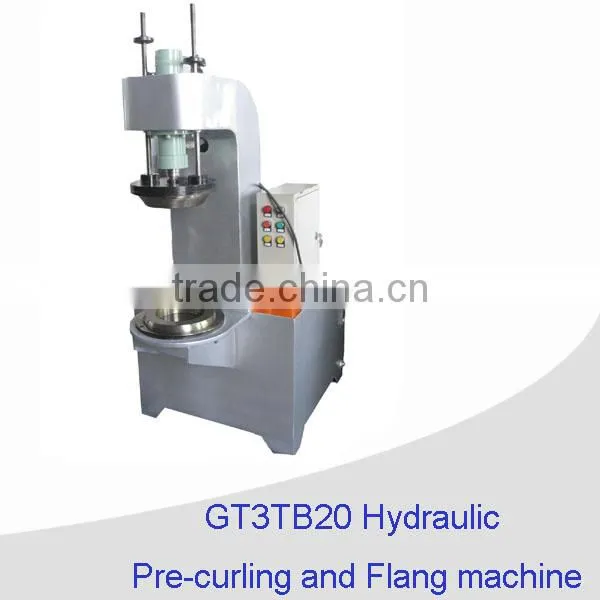

Specifications For Hydraulic Pre-curling And Flanging Machine :
1. Main Parameters( conical tin can machine equipment ):
Model: | GT3TB20 | |||
Capacity: | 15cans/min | |||
Thickness: | ≤0.5mm | |||
Diameter: | 210-300mm | |||
Height: | 270-400mm | |||
Power: | 4kw | |||
Net Weight: | 900kgs | |||
Dimension: | 1300x700x1750mm |
Usage: This machine is for conical can top pre-curling and bottom flanging.
2. Machine features( conical tin can machine equipment ):
1). They are mature products which were innovated by steady effort.
2). The hydraulic parts(such as change value, oil pump, hydro-cylinder) are manufactured by KOMPASS
3). The electronic component: SCHNEIER/ OMRON
4). Some of molds select the high alloy steel(Cr12MoV) and quenching(60-62HRC)
5). Motor: Siemens
3. Deliver time:
45 days.
4. Warranty:
One year! If there is any quality problem with our machine during the warranty period, we will offer free parts for customer for fix the machine.
5. Sample Cans

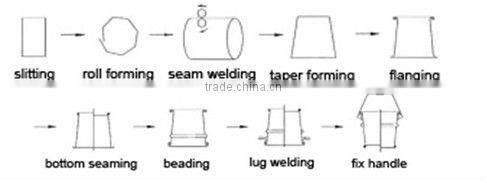

We supply complete conical can making production line
6. Machine pictures

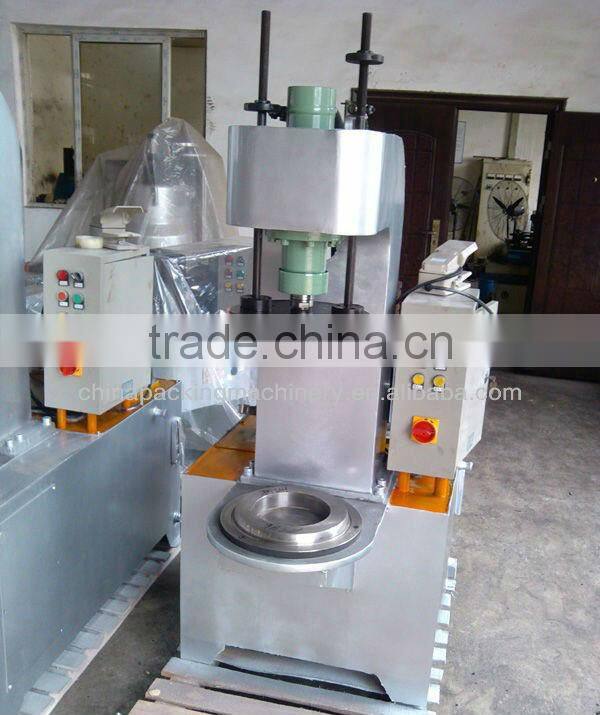

whole machine:

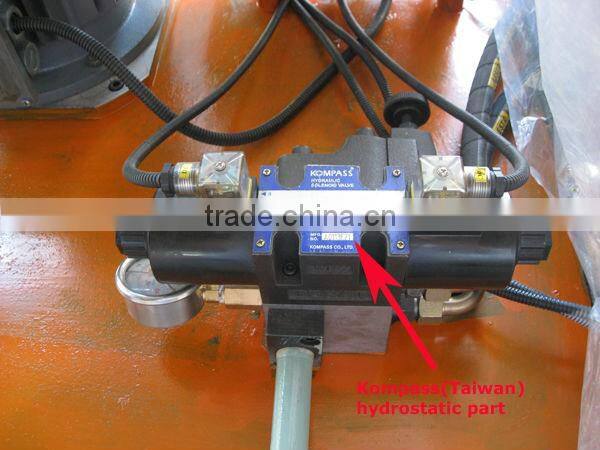

Hydraulic Part brand: kompass

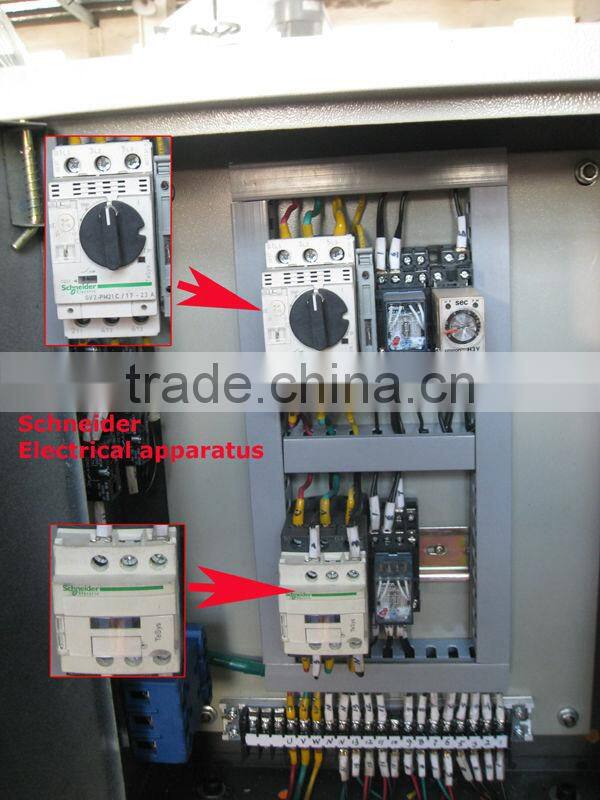

Electric Box
Jiujiang Excellent Packaging Machinery Co., Ltd . is an oiginal manufacturer in tin can machine industry for 14 years..
We supply various tin can machines and complete production lines. Our main product: 0.2-5L can making line, 1-4L rectangle can making line,10-20L cone pail making line, 10-20L cylinder pail making line,18L square can line.
Our products have been exported to Dubai, Spain, Greece, Egypt, Indonesia, Tanzania, Vietnam and so on.
Welcome to contact us and visit our factory!
