Help CenterAutomatic Food Tin Can Welding Machine
Related Products
-
Automatic Food Can Manufacturing EquipmentUS$ 52,000 - 62,000MOQ: 1 Set -
Automatic Machines for Tin Can Welding MachineUS$ 52,000 - 62,000MOQ: 1 Set
-
Automatic Seam Welding Machine Small Tin CanUS$ 52,000 - 62,000MOQ: 1 Set
-
Automatic Tin Can Seam Welding MachineUS$ 52,000 - 62,000MOQ: 1 Set
-
Gold Supplier Automatic Welding Machine for Tin CansUS$ 52,000 - 62,000MOQ: 1 Set
Specification for tin can welding machine
1. Machine features:
1) Apply to the welding of various cans, such as food cans, increased material cans, aerosol cans, chemical tanks;
2) Can body internal and external pre-painting machine and can body drier are optional to be added in production line.
2. Uses and characteristics
The product is applied to barrels,special equipment for welding cans.Control board with a new generation of digital circuits,MCU chip control cycle adjustment current,to ensure seamless weld point.Machine moves mocrocomputer control,frequency control,stable and reliable.Air Reserve wire up power adjustable,replacement pot-shaped convenient. Electrical,pneumatic and mechanical components,to use more imported original,quality assurance.
3. Our major component suppliers
1) PLC(Programmable Logic Controller) is purchased from Japanese MITSUBISHI.
2) Low voltage apparatus are produced by SCHNEIDER.
3) IGBT(Insulated Gate Bipolar Transistor) is bought from Japanese FUJI.
4) OMRON is our sensor supplier.
5) HMI(Human Machine Interface) is purchased from WEINTEC Labs.,Inc in Taiwan
4. Main technical parameters:
Model |
FH18-52ZD |
Linear rate of welding |
6-36m/min |
Production capability |
60-120 cans/min |
Applicable can diameter |
52-105mm |
Applicable can height |
70-320 mm |
Applicable material |
Tinplate ni plate |
Applicable material thickness |
0.16-0.30mm |
Applicable copper wire diameter |
1.38mm-1.5mm |
Cooling water |
Temperature:12-18°C |
Pressure: 0.4Mpa,discharge:10L/min | |
Power |
380V±5%,50Hz |
Total power |
18KVA |
Dimension |
1750*1100*1800mm |
Weight |
1800kg |
5. Sample cans:

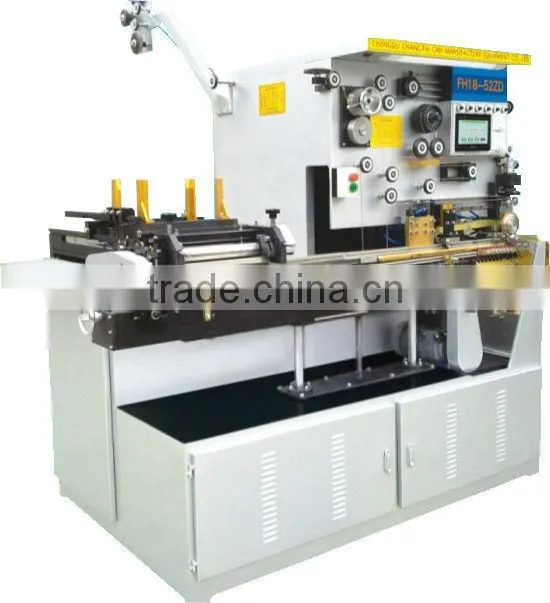

6. Machine photos:
7. Flow chart:
1. Packaging
Our products usually packed in plywood case.
2. Shipping
Our products usually use marine transportation.
This product's deliver time is 50 days.
Our products' warranty is 1 year!
If there is any quality problem with our machine during the warranty period, we will offer free parts for customer for fix the machine.
Company introduction:
Jiujiang Excellent Packaging Machinery Co., Ltd. is located in Jiujiang City in Jiangxi Province and is specialized in manufacturing various tin can making machine,soap making machine,automatic tin can producton line and semi-automatic tin can production line.
With an experienced and professional team, we have exported our products to many countries and regions all over the world. Our products enjoy a good reputation among our customers.
We welcome customers, business associations and friends from all parts of the world to contact us and seek cooperation for mutual benefits.
At the same standard lever of machines quality,we think if the price is suitable for both of us ,we can come to an agreement and copperation.
