Automatic tin can seam welder for paint / food can machine /welder machine
1. Product Specification
Linear rate of welding |
6-36m/min |
Production capability |
60~120Cans/min |
Applicable can diameter |
Ø52~ø99mm |
Applicable can height |
70~320mm |
Applicable material |
Tinplate steel-based Chrome |
Applicable material thickness |
0.16~0.30mm |
Seam welding landing |
0.4mm 0.6mm |
Seam point distance |
0.5~0.8mm |
Applicable copper wire diameter |
ø 1.38mm ø 1.5mm |
Cooling water |
Temperature:12-18°C Pressure:0.4~05Mpa Discharge:10L/min |
Power |
380V±5% 50HZ |
Total power |
18KVA |
Dimension |
1750×1100×1800mm |
Weight |
1800Kg |
Usage of Automatic food can tin box making machine
1.Apply to the welding of vairous can food cans,increased material cans,aerosol cans, chemical tanks
2.Can body internal and extemal prepainting machine and can body drier are optional tobe added in production line
Our major component suppliers of Automatic food can tin box making machine
1, PLC(Programmable Logic Controller) is purchased from Japanese MITSUBISHI.
2, Low voltage apparatus are produced by SCHNEIDER.
3, IGBT(Insulated Gate Bipolar Transistor) is bought from Japanese FUJI.
4,OMRON is our sensor supplier.
5, HMI(Human Machine Interface) is purchased from WEINTEC Labs.,Inc in Taiwan.
Can making technology process
Cutting-----rounding-----welding-----coating-----drying-----pre-curling and expanding-----flanging-----seaming bottom-----beading and curling
Applicable types of cans
aerosol can ,food cans ,increased material cans, chemical tanks.
Apply to the welding of aerosol can also welding food cans

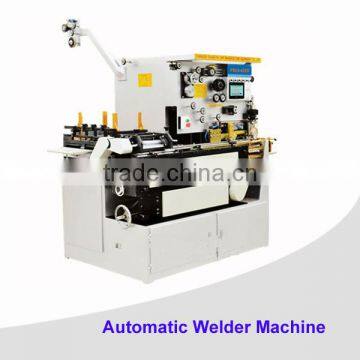

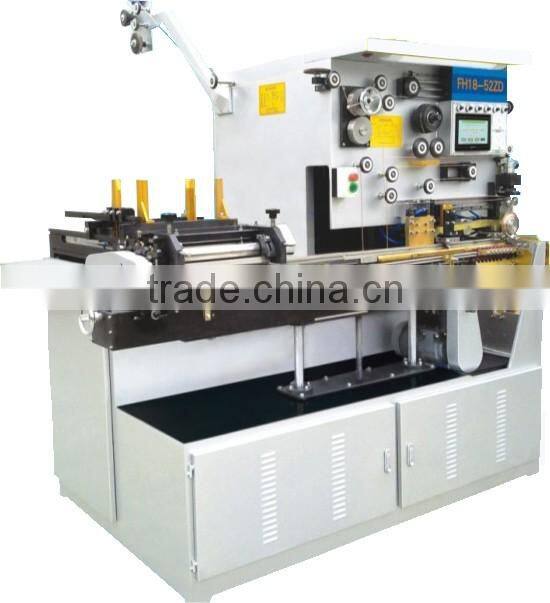

2. Product Images
This product's deliver time is 60 days.
Our products' warranty is 1 year!
If there is any quality problem with our machine during the warranty period, we will offer free parts for customer for fix the machine.
If you want to know more information about this machine,please contact us!
