Specifications
1.Original manufacturer2.High quality and best service
3.14 years experience
4.At a good price
5.Export to many countries

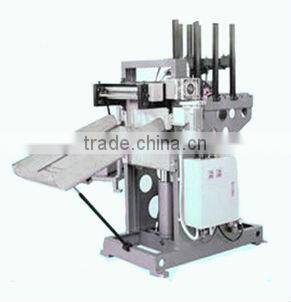

High Quality Automatic food can roll forming equipment
Model:ZDJY120-320/ZDJY120-280
Usage:Manage to improve on rear end feeding semi-auto seam welder into full auto welder. It saves labour and prevents scratching of tin can body.
Features:
1. The 8 type roll forming machine can make the tinplate soft and no straight edge, Material automatic lift.
2. This machine is installed with Japanese Mitsubishi PLC.
3. Controlled by photo switch, connected with welder machine.
4. Match with a semi-automatic welding mahcine to achieve synchronous production, saving labor.
The main technical parameters:
Model | ZDJY120-320/ZDJY120-280 |
Thickness | 0.15~0.35mm |
Diameter | 52~180mm |
Height | 70~320/70~280 mm |
Capacity | 30~120cans/min |
Power | 380V,50HZ,1kw |
Net Weight | 350kg/340kg |
Dimension | 700*1100*1200mm/650*1100*1200 mm |
Sample Can:
We can also provide another roll fomer machines for your reference:
Flow chart:
JIUJIANG EXCELLENT PACKAGING MACHINERY CO., LTD
Our company was located inJiujiang City, Jiangxi Province where nearby Changjiang River and under the foot of Mt.Lu, with the convenient transportation.
Our company is specialized in cans making machines’ producing and sale.
Our leading products include production line equipments for narrow-neck cans, 1-20L round and square cans, 5-25L pail cans, and other different kinds of special purpose cans, such as alcohol cans and biscuit cans.
Our products has been exported to many countries, such as Kuwait, Dubai, Indonesia, Vietnam, Palestine, Cameroon, Chile, England, Russia, America, Greece, Japan and so on.
The Company Gate:
Office:
Factory:
Sample Room:
Customer first is the business principle of our factory. Being quality-centred is our eternal pursuit.
Welcome to visit our factory!
