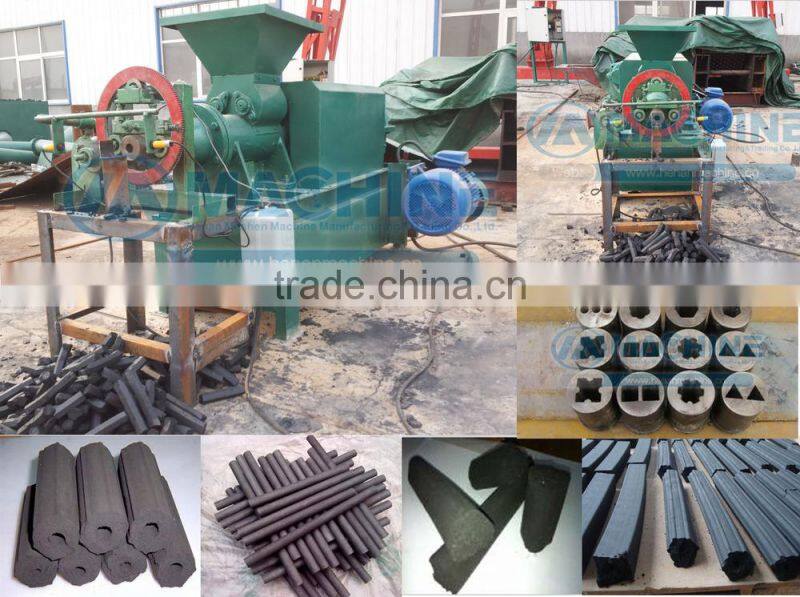

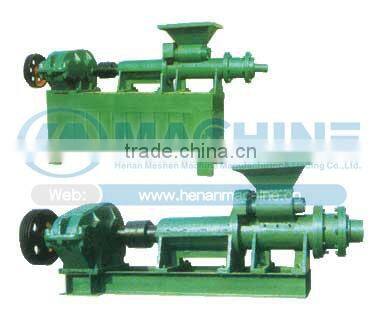

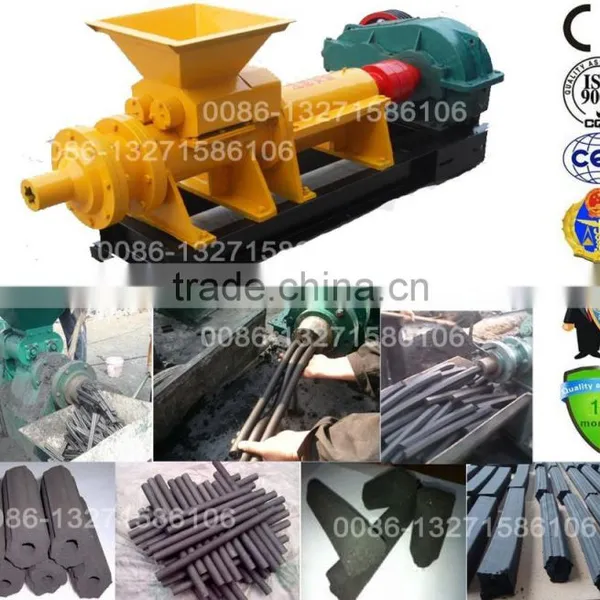

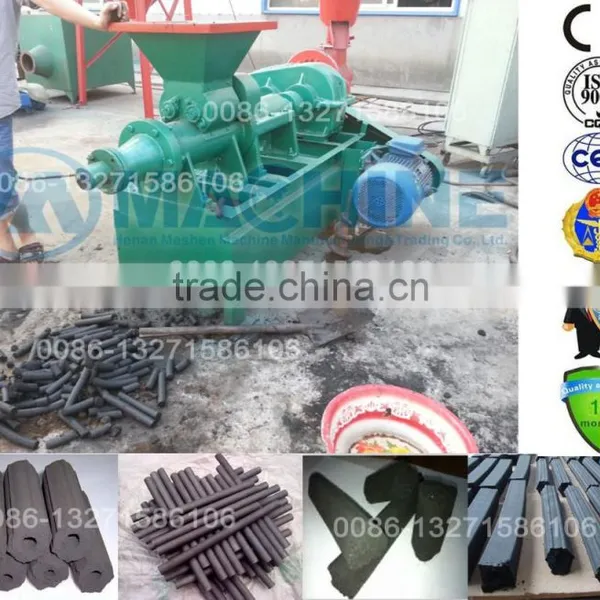

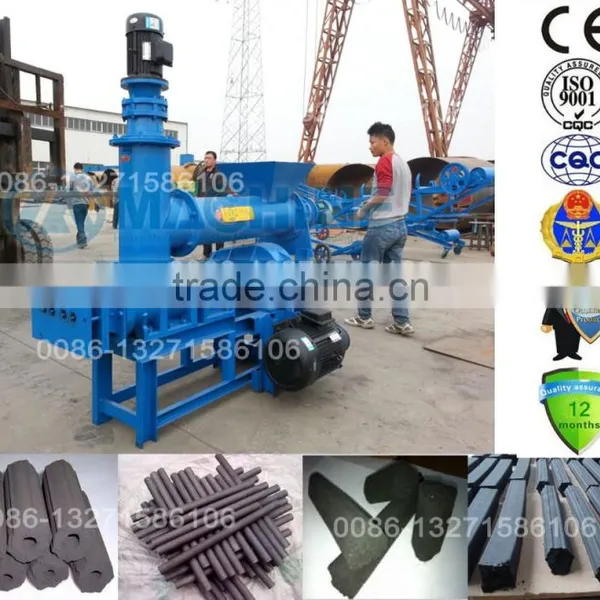

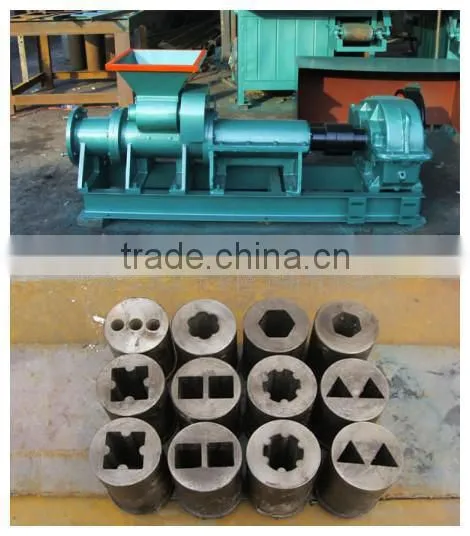

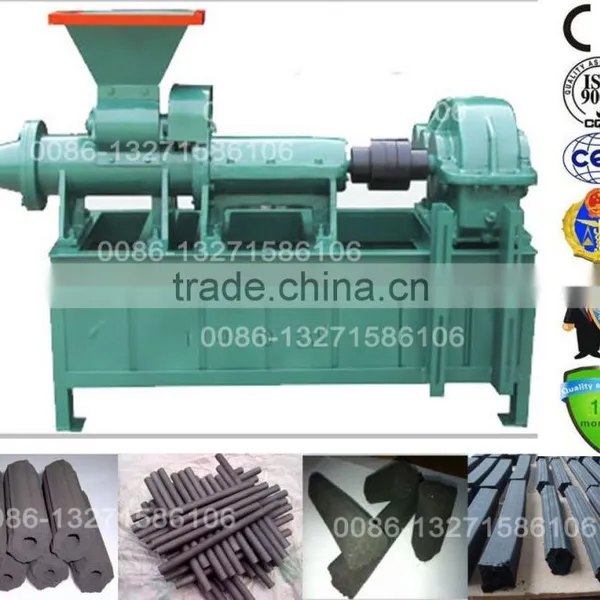

sawdust charcoal powder briquetting machine
1 General Description of sawdust charcoal powder briquetting machine
Our coal briquettes extruder use the application of the principle of the spiral extrusion , which make it become a certain intensity round or hexagon, triangle, ect charcoal/coal rods by working for the powered coal/charcoal mixed with binder.It is widely used in chemical industry ,metallurgy and ceramic industry , which is the ideal equipments of enterprise specialized in efficient production and reducing consumption.
2 Working principle of sawdust charcoal powder briquetting machine

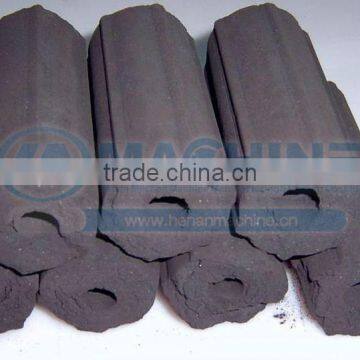

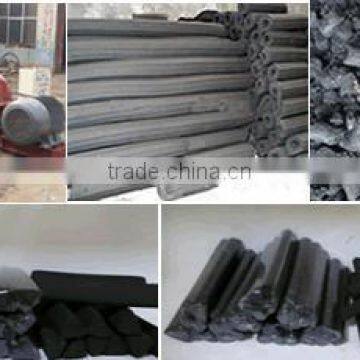

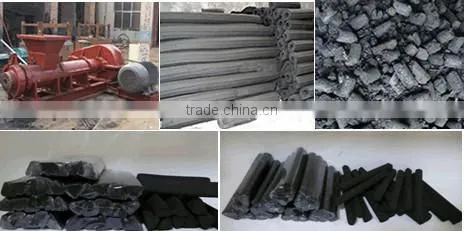

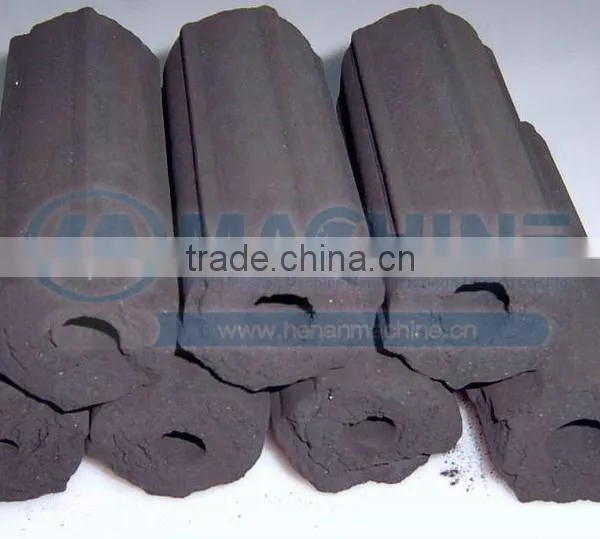

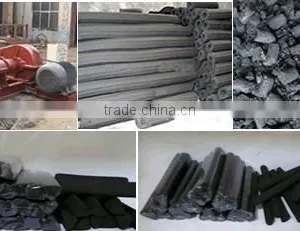

Our briquettes extruder feed the ratio and retting coal powder mixture into a nitrogentreated barrel by the extrusion of principle , which will compress into section for round, hexagon form or other shape.The final coal/charcoal rods have a certain mechanical strength by formed in this equipments .
3 Outstanding Features of sawdust charcoal powder briquetting machine
1.big incoming lathe screw constant and faster material processing rate and energy saving !
2.Rigid connection is used between the shaft block and cylinder. The machine Φhave a stable working performance better than ever.
3.Hydraulic coupler drive is used . So the machine is smooth in operation and have small noise, Also have the function of overload protection.
4.Custom-made services are provided.
4 Quality Guarantee Terms
Quality guarantee term is for one year. Malfunctions which are caused by machine-self and quality will be responsible for our manufacturer. Other malfunctions which are caused by operation mistakes, man-made problems, etc will be responsible for clients-self.
5 Detailed parameters of sawdust charcoal powder briquetting machine
Model | MBJ140 | MBJ180 | MBJ300 | MBJ400 |
Capacity | 1-2T/H for coal; 0.5-1T/H for charcoal | 2-3T/H for coal; 1-1.5T/H for charcoal | 3-5T/H for coal; 1.5-2.5T/H for charcoal | 6-10T/H for coal; 3.0-5.0T/H for charcoal |
Diameter of mould | 20-40mm | 20-60mm | 20-80mm | 20-80mm |
Main shaft speed | 46-60r/min | 39-60r/min | 35-60r/min | 35-60r/min |
Number of Spiral Blades
| 4 | 4 | 4 | 4 |
Motor | Y160m-4 11KW Y160L-4 15KW | Y180m-4 18.5KW Y180L-4 22KW | Y225s-4 37KW Y225m-4 45KW | Y315m-4 160KW |
Reducer | ZQ350 | ZQ400 | ZQ650-750 | ZQ850 |
Bearing | 7511,211,210,1305 | 7614,314,313,1206 | 32320,320,319,1207 | 32322,322,321 |
Note | Spindle speed is the lowest speed, according to the current size and load weight, increase the level of appropriate yield
| |||
6In order to give you the quotation in time,Pls. tell me the answer of the following questions.
1. what's Raw material ?
2.The moisture and size of raw material ?
3.Capacity you need ?
4.The shape and size of the final product you prefer?
Apart from the coal briquettes extruder, other related machine such as feeder, grinder, crusher, conveyor and dryer are also available in our factory, it means we can offer a whole product line. In addition, we can help you with the installation.

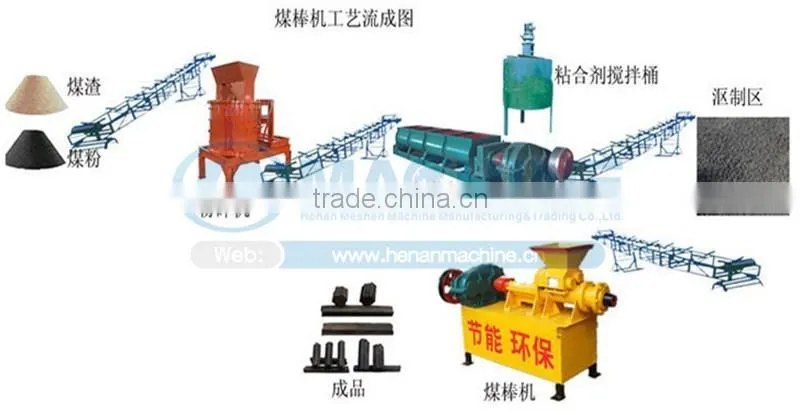

Raw material-----Crushing -----Mixing-----Feeding-----Briquetting----Final briquette
7 Pre-sale service,Installation and After sales service
The Presale service is free, begins with analyzing and planning of your particular needs. Whether you need a single machine, a multi-stage process? Or a production line of complete plant. Henan Machine Co.,Ltd.can advise you on the right solution for the most cost-efficient briquetting.
We can guide you to install the products or directly send our engineer in your country for the installation.
In the after sales service, Henan Machine Co.,Ltd. has a team of briquetting professionals ready to help you. We provide one year warranty for all of our products and six month for the wear parts. Spare and wear parts are always close to you.
8 Payment,Packing and Delivery
l Payment :30% TT in advance, 70%6TT balance pay off before delivery.
l Packing: The machine and wear parts will protected by plywooden box or as customers’ will.
l Delivery time: For one set, the delivery time is 7-10 days, for 1-5 sets 20-25 days, above 5 sets usually negotiate.
