charcoal briquetting press machine

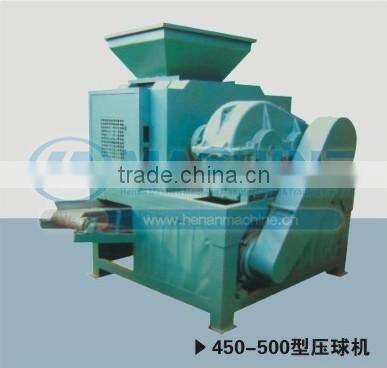

1.Introduction of charcoal briquetting press machine
Round shape coal briquette making , slag ball press machine, roller ball press machine, goose molding machine. Ball press machine is mainly used to suppress difficult molding powder material,such as coke, iron oxide skin, remove dust, coal, all kinds of metallurgy powder, carbon powder, etc. It mainly used for coal molding, powder molding, Gypsum molding, coke powder molding, iron ore and metal powder molding.
2.Consist parts of charcoal briquetting press machine
Egg ball press machine structure consists of three parts: the feeding part, transmission part and molding part.
1.Feeding part achieve dosing feeding to ensure access to the material evenly between the rolls.
2.Transmission part, main drive system are: motor -- triangle belts--reducer--open gear--roller.
3.Forming part, mainly refer to host part of machine and the core part is the roller.
3.Working principle of charcoal briquetting press machine
Egg ball press machine through reducer simultaneously transmitted the power to two pressure rollers and made them rotated in opposite directions. In two pressure rollers rotation, materials naturally enter into the ball molds on pressure roller and materials pressure vary from small to large with the rotation of the pressure roller. When the material is rotated to two rollers line contact points, materials pressure has reached a peak. Under enormous pressure, the powder materials are suppressed into finished ba
4.Industrial requirements of charcoal briquetting press machine
1.Particle size between 90-260 mesh.
2.Material is not allowed with any metal object, otherwise it will damage the skin surface of the roll.
3.Feeding supply must meet, it's better to use adjust screw feeder and observe the feedback materials to adjust the supply of new material.
4.Before feeding, it needs a few circles empty operation to prevent feeding too much causing the gear and motor overload and roller broken.

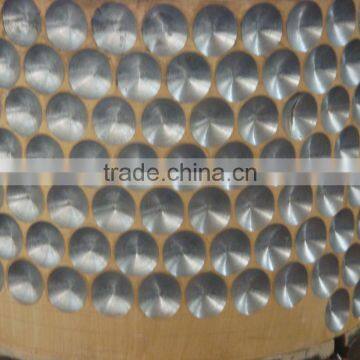

5.Roller of charcoal briquetting press machine
65Mn has strongest wearing ability, so it will greatly improve the life of ball briquette machine equipment.
6. Products advantages of charcoal briquetting press machine
1. High profit and low cost in raw material
2. Good abrasion resistance and long service life
3. Energy saving, friendly-environment, Low-consumption
4. No chemical additives, no smell, no smoke
5. Easy to transport and store as densities product.
6.High briquetting ratio, high pressure coal briquetting machine
7.The parameters of charcoal briquetting press machine
Type | Capacity (t/h) | Roll Diameter (mm) | Pressure(t) | Roll Speed (r/min) | Power (kw) | Reducer |
MC-290 | 1.5-2 | 290 | 18-20 | 15-17 | 5.5 | ZQ290 |
MC -360 | 2.5-3.5 | 360 | 20 | 15-17 | 7.5 | ZQ360 |
MC -400 | 4-5 | 400 | 22 | 15-17 | 11 | ZQ400 |
MC-500(1) | 6-8 | 370 | 24 | 15 | 15 | ZQ500 |
MC-500(2) | 8-10 | 500 | 25 | 15 | 22 | ZQ650 |
MC -650 | 10-15 | 650 | 30 | 15 | 30 | ZQ650 |
MC -750 | 15-20 | 750 | 34 | 13 | 30 | ZQ750 |
MC -850 | 25-30 | 850 | 54 | 13 | 37-45 | ZQ850 |
MC 1000(1) | 35-40 | 1000 | 60 | 12 | 45-75 | ZSY-355 |
MC 1000(2) | 35-45 | 1000 | 77-240 | 10 | 75-90 | ZSY-400 |

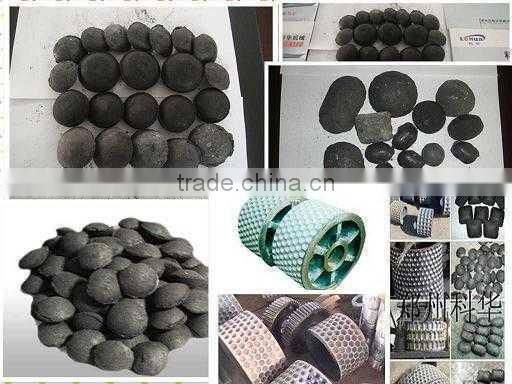

Shape and size of final briquettes: square, ball egg-shaped, round, oval, and column, strip-type, elliptic type, pillow type and other special shapes by customizing the matching molds. Usurally 20-60mm. | ||||||
8.Overall service
Pre-sales service: We can assist you analyze your particular requirements and offer you a single machine, a multi-stage production, or a complete production line.
After-sales service: We can offer you related technical support and guide you to install the products, or send our engineer to your factory for the installation. Also we provide one year warranty for all of our products.
9.Our customers from different countries
30 years dedicated production and sales has enabled our customers exist on all continents all over the world, America, Australia, Russia, Canada, Arab, Korea, Kazakhstan,India, Dubai, Uzbekistan, Africa, Etc.
