Professional design biomass wood sawdust pellet machine at reasonable price

Specifications

1.capacity:700-2200 kg/h
2.stick size:13-36mm(round) 32-44(square)
3.voltage:220v,380v,400v

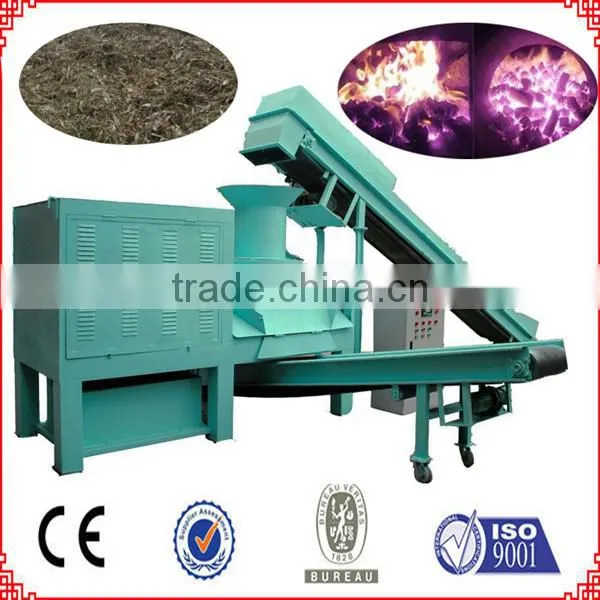

             biomass wood sawdust pellet machine

Description:

Straw(biomass) briquette pellets making machine also called biomass fule forming machine and Stalk Briquette machine is used for briquetting the agriculture waste into industry fuel ,which was called Stalk Coal .The agriculture can be corn stalk ,wheat stalk , cotton haulm ,straw,rice hull ,peanut hull, corn core, branch ,sawdust etc.Straw fuel briquette machine is a full set of mechanized  production equipment. It can convert biomass raw material and solid waste into high density and   energy fuel.



Specification:



Model	500-IV	800--IC
Power (kw)	30	55
Capacity (kg/h)	700-1100	1700-2200
Briquette’s diameter	13-36mm(round)	32-44mm(square)
Density(g/cm3)	0.8-1.4	0.8-1.4
In feeding materials’    Moisture condition	15%-20% for straw and stalks; 10—15% for sawdust; 20—30% for coal powder; 25-35% for brown coal; 20—25% for carbon black powder; 15—20% for waste papaer; 18—22% for manure of cow, pig,sheep,etc; 10—15% for some industry wastes;
In-feeding material’s  size(mm)	2-50	2-50
Dimension(mm)	2000*900*1650	3000*1200*1960

Working process:

















Inner structure:









Final products:









Customers:





Packaging



Pre-sale service, Installation and After sales service:

The Pre-sale service is free, begins with analyzing and planning of your particular needs. Whether you need a single machine, a multi-stage process or a production line. We can advise you on the right solution for the most cost-efficient briquetting.

We can guide you to install the products or directly send our engineer in your country for the installation.

In the after sales service, Henan Machine Co.,Ltd. has a team of briquetting professionals ready to help you. We provide one year warranty for all of our products and six month for the wear parts. Spare and wear parts are always close to you.

Overview of our factory:
