Home > Products > 3.Hydraulic press machine > JLUY c type 100 tons hydraulic metal coin embossing machine

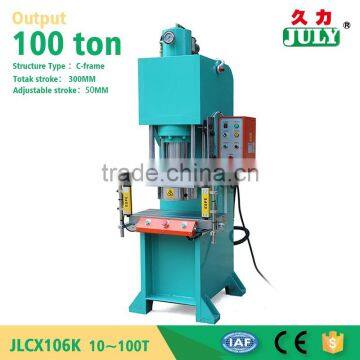

JLUY c type 100 tons hydraulic metal coin embossing machine
- 150 Set / Sets per Month
- Shen zhen
- T/T Credit Card PayPal
-
Professional High Precision Wide Application J23-25 cnc turret punching machines
-
High Precision Wide Application J23-25 c frame punch press
-
Professional High Precision Wide Application J23-25 hydraulics
-
High Precision Wide Application J23-25 c frame fixed table punching machine
-
Factory Sale High Precision Wide Application J23-25 construction material making machine
-
High Precision Wide Application J23-25 scrap metal cutting machine for punching machine
Product Details
| Condition: | New | CNC or Not: | Normal | Power Source: | Hydraulic |
| Place of Origin: | Guangdong, China | Brand Name: | JULY | Model Number: | JLCX106K-100T |
| Voltage: | 380V | Power(W): | 5.5kw | Weight: | 800KG |
| Dimension(L*W*H): | 750*800*2500mm | Certification: | CE | Warranty: | one year |
| After-sales Service Provided: | Overseas service center available |
Product Description
Never deterred by challenges
Innovative at heart for 31 years
Proudly delivering on our promises
| Hydro-pneumatic press machine | Pneumatic press machine | Hydraulic press machine | Riveting Machine | Heat press machine |
| (hot)JLYC (3~50T) | (hot)JLYA (0.1~0.5T) | (hot)JLCX105C (1T~15T) | (hot)JLYE (5~10T) | JLYD H (3~15T) |
| JLYCZ (3~15T) | (hot)JLYB (0.3~1T) | (hot)JLCX106K (10T~100T) | JLS-710 JLS-928 JLS-989 JLZ-989N JLZ-988RR JLZ-958K JLZ-988RF JLZ-968ML JLZ-988DX | (hot)JLCX530 (3T-50T) |
| (hot)JLYD (3~50T) | JLCX101 (0.2T-1.2T) | JLCX107 (3T~15T) | ||
| JLYDZ (3~15T) | JLCX101D (0.5T-2T) | LCX108 (3T~15T) | ||
| (hot)JLYE (5~10T) | JLYD-A (0.1~2.2T) | JLCX108J (5T~50T) | ||
| (hot)JLCX108K (10T~100T) | ||||
| JLCX108T (5T~30T) | ||||
| JULY® was founded in 1985 with more than 31 years of R&D and OEM experience. | ||||
| welcome to visit our website >" href="http://july.en.china.cn/" target="_blank">>> | ||||
| Drawing |
|
| Pressure Capacity | A | B | C | D | H | L | W | W1 |
| 10T | 550 | 500 | 2100 | 700 | 400 | 450 | 300 | 150 |
| 20T | 600 | 600 | 2200 | 750 | 450 | 500 | 350 | 175 |
| 30T | 600 | 700 | 2300 | 750 | 450 | 500 | 400 | 200 |
| 50T | 700 | 700 | 2400 | 750 | 500 | 600 | 400 | 200 |
| 100T | 750 | 800 | 2500 | 750 | 550 | 650 | 500 | 250 |
Features |
|
| Application |
|
|
Specification |
| Pressure Capacity | 10T | 20T | 30T | 50T | 100T | ||
| Nominal Force | 100KN | 200KN | 300KN | 500KN | 1000KN | ||
| The Maximum Open Height | 400MM | 450MM | 450MM | 500MM | 550MM | ||
| The Size of The Working Table | 450*300MM | 500*350MM | 500*400MM | 600*400MM | 650*500MM | ||
| The Maximun Stroke | 250MM | 300MM | 300MM | 300MM | 300MM | ||
| Electrical | 380V | 380V | 380V | 380V | 380V | ||
| Motor Power | 2.2KW | 3.7KW | 3.7KW | 5.5KW | 5.5KW | ||
| Packaging |
| Shipping |
| By sea | Cheapest but longest option 18~30 days by sea delivery, best for large quantity order. |
| By air | More expensive than sea delivery, But cheaper than express 5~7 days by air to airport. |
| By express | Door to door service,the fastest and most expensive one, 3~6 days by express. |
Company Information |
|
Our Advantages |
|
Cooperation Terms |
|
Service Tips |
Feel free to contact us at anytime if you have any problems or questions on your purchase. We will resolve any problemssuch as damaged, not as described, missing parts, and lost items. All emails will be replied within 24 hours exceptSunday and Chinese holidays. |
If you have any other requirements or questions, welcome to visit our website , or just contact with us directly. Thank you! |
| FAQ |
Q: What products do you supply? A: We supply metal cylinders, booster pumps, press machines, riveting machine, pressure gauge test rig, zinc alloy ingot and the other zinc alloy products etc.
Q: Can you guarantee quality for orders? A: Sure. We can 100% guarantee quality for all of your orders, as what we want is a long-term business relationship with you, rather than one off business.
Q: Can I have my brand and put my logo on the products? A: Of course. As long as you would like to, we could do that for you, according to your designs, free of charge.
Q: What's your delivery time? A: That depends. It usually takes 15-30 days for different products and quantity. |
