Whole Sale JLUY Made Hydraulic Bearing Press Machine

Whole Sale JLUY Made Hydraulic Bearing Press Machine thumbnail-1
Whole Sale JLUY Made Hydraulic Bearing Press Machine thumbnail-2
Whole Sale JLUY Made Hydraulic Bearing Press Machine thumbnail-3
Whole Sale JLUY Made Hydraulic Bearing Press Machine thumbnail-4
Whole Sale JLUY Made Hydraulic Bearing Press Machine thumbnail-5
Whole Sale JLUY Made Hydraulic Bearing Press Machine thumbnail-6
Whole Sale JLUY Made Hydraulic Bearing Press Machine photo-1

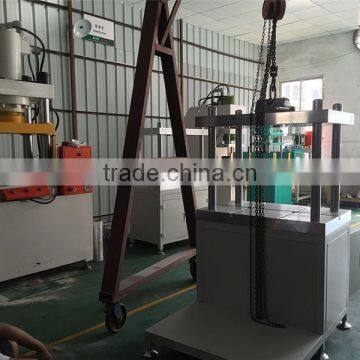

Whole Sale JLUY Made Hydraulic Bearing Press Machine photo-2

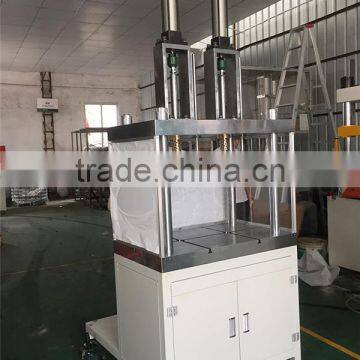

Whole Sale JLUY Made Hydraulic Bearing Press Machine photo-3
Whole Sale JLUY Made Hydraulic Bearing Press Machine photo-4

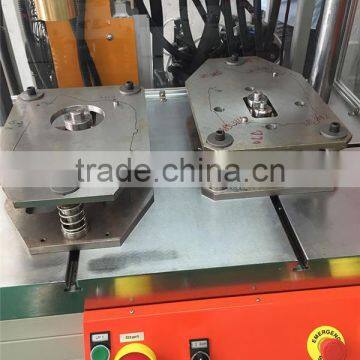

Whole Sale JLUY Made Hydraulic Bearing Press Machine photo-5
Whole Sale JLUY Made Hydraulic Bearing Press Machine photo-6
US$ 11,400 - 18,400 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
CNC or Not:
Normal
Power Source:
Hydraulic
Contact Supplier Request Quote Chat Now
Dongguan July Hydropneumatic Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shen zhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
CNC or Not Normal
Power Source Hydraulic
Place of Origin Guangdong, China
Brand Name JULY
Model Number JLCD-3T
Voltage 415V
Power(W) 1.5+1.5KW
Weight 1500KG
Dimension(L*W*H) 950*1200*2500MM
Certification CE
Warranty one year
After-sales Service Provided Overseas service center available

Never deterred by challenges
Innovative at heart for 31 years
Proudly delivering on our promises





Hydro-pneumatic press machine Pneumatic press machine Hydraulic press machine Riveting Machine Heat press machine
(hot)JLYC (3~50T) (hot)JLYA  (0.1~0.5T) (hot)JLCX105C (1T~15T)  (hot)JLYE (5~10T) JLYD H (3~15T)
JLYCZ (3~15T) (hot)JLYB (0.3~1T) (hot)JLCX106K (10T~100T)

JLS-710

JLS-928

JLS-989

JLZ-989N

JLZ-988RR

JLZ-958K

JLZ-988RF

JLZ-968ML

JLZ-988DX

 (hot)JLCX530 (3T-50T)
(hot)JLYD (3~50T) JLCX101 (0.2T-1.2T) JLCX107 (3T~15T)
JLYDZ (3~15T) JLCX101D (0.5T-2T) LCX108 (3T~15T)
(hot)JLYE (5~10T) JLYD-A (0.1~2.2T) JLCX108J (5T~50T)
    (hot)JLCX108K (10T~100T)
    JLCX108T (5T~30T)
JULY® was founded in 1985 with more than 31 years of R&D and OEM experience.
          welcome to visit our website   >" href="http://july.en.china.cn/" target="_blank">>>

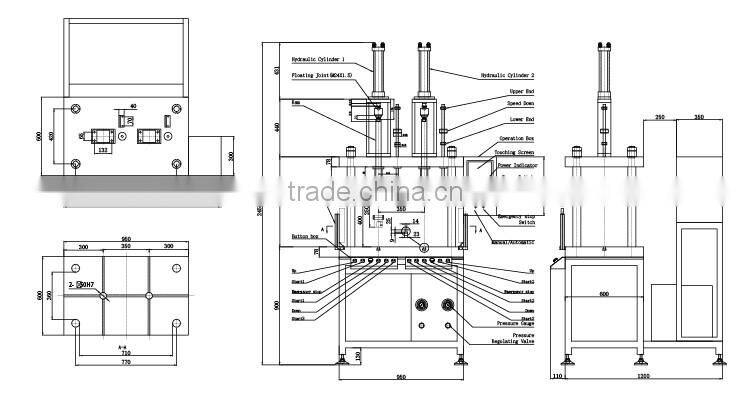

Drawing



Whole sale JLUY made hydraulic bearing press machine







Features





  1. Dual hydraulic cylinder, Opening height 400mm, stroke 250mm, height between working table and ground 900mm.
  2. Norminal force 3KN+3KN(control separately), hand operation, double button operation.
  3. Put component on jig → push double hand operation start switch → Ram descent at normal speed → Ram descent at slow speed when slow down sensor "ON" → press fit end "ON" + pressure switch"ON"= Timer start ( holding time 0-10s adjustable), Empty speed  50-204mm/s adjustable, Work  10-59mm/s adjustable, Return  50-126mm/s adjustable
  4. Cycle time (30sec Max): Manual operation 5sec, machine time 25sec.
  5. Pressure adjustable in 0.1-3T, working pressure 10Mpa.
  6. It has light in the button box area. And it has LCD.
  7. The red singal light and a buzzer will be indicated at the time of unusual occurrence, and LCD also will be indicated at that time.
  8. There are three type switch fot selection of ram, No1 ram move, No2 ram ram, Both ram move.
  9. If select both both ram so during operation troubled ram should not go down and ok ram should work properly.
  10. The start switch is made of toth hands push button with the guard ring.
  11. There is a photoelectric protection in front of equipment, and cover other three sides with PET.
  12. It should shand by in that place at the time of photoelectric protection covering, and warn by the signal light, buzzer and LCD. A movement reverts if both hands start button is pushed after a covering thing was moved and reset button was pushed.
  13. The pressure gauge, pressure control valve, pressure switch should be in the position where the worker can adjust and confirmation easily.
  14. The pressure gauge shows"Mpa", LCD shows"Ton"
  15. 3phase, 4wire 380-420V 50Hz.







Mainly technical specifications





Item

Brand

QTY

Duplex vane pump

Yuken,Japan

1PCS

Hydraulic valve

Northman,Taiwan

11PCS

Hydraulic cylinder

Taiyo,Japan

4PCS

Sealing ring

Valqua,China

1SETS

PLC

Mitsubishi,Japan

2PCS

Motor

Simens,Germany

2PCS

Inverter

Delta,Taiwan

2PCS

Pressure transmitter

Danfoss,Denmark

4PCS

Photoelectric protection

Laien,China

 2SETS

Touching screen

TouchWin,China

 2PCS
Proximity switch

Nais,Japan

6PCS





Application



  1. Metal or non-metallic parts,stamping,molding,light stretching,plastic and pressure assembly;
  2. Glasses,locks and hardware parts of repression,electronic connectors,electrical parts,electrical switch,stator press-fit,etc.;

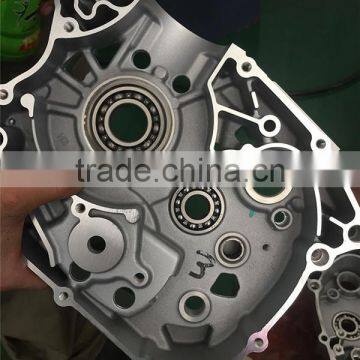

  3. Especially suitable for punching the phone keypad,transformer plastic,motor assembly,shaft,bearings pressed into the other.
Whole sale JLUY made hydraulic bearing press machine







Packaging



We adopt the advanced material Expansible Polystyrene(EPS) as inside packaging , which is more secure and eco-friendly than common packing. Master cartons outside.







Shipping



By sea Cheapest but longest option 18~30 days by sea delivery, best for large quantity order.
By air More expensive than sea delivery, But cheaper than express 5~7 days by air to airport.
By express Door to door service,the fastest and most expensive one, 3~6 days by express.









Company Information





Whole sale JLUY made hydraulic bearing press machine



Direct Factory

1.Our first factory founded in Taiwan in 1985 .
2.Two our own,factories in China.
3.ISO 9001:2008 Certificate.



R&D team
Efficient and professional R&D team of more than 20 people.



Quality is our culture
There is a set of complete system to recording all material, production and inspection, which helps us to quickly tracking and solve any problems.



Application
Our products and equipment apply to many fields.
Our products are widely recognized and trusted by users.



Certificate
We have been obtaining lots of patents.
We have also won the honorary title of national high -tech and innovative enterprise in China .



Whole sale JLUY made hydraulic bearing press machine



Whole sale JLUY made hydraulic bearing press machine









Our Advantages





  1. Various style for each products and completely series pneumatic products for you to choose from.
  2. Large stock for fast shipping.
  3. High quality with competitive price
  4. Sample order & small quantity order is ok
  5. Customize according to your special demand.
  6. Provide free products information.
  7. Reliable quality assured and active after-sell service







Cooperation Terms





  • Sample terms: Sample fee is charged and will be refunded when order is placed.
  • Sample time: 3-5 working days.
  • Payment terms:  Full payment in advance.
  • Delivery Time: 3-5 weeks after sample confirmation.







Service Tips





Feel free to contact us at anytime if you have any problems or questions on your purchase. We will resolve

any problemssuch as damaged, not as described, missing parts, and lost items. All emails will be replied

within 24 hours exceptSunday and Chinese holidays.

If you have any other requirements or questions, welcome to visit our website  , or just contact with us directly. Thank you!









FAQ



Q: What products do you supply?

A:  We supply metal cylinders, booster pumps, press machines, riveting machine,  pressure gauge  test  rig,

zinc alloy ingot and the other zinc alloy products etc.



Q: Can you guarantee quality for orders?

A: Sure. We can 100% guarantee quality for all of your orders, as what  we want   is a long-term business

relationship with you, rather than one off business.



Q: Can I have my brand and put my logo on the products?

A: Of course. As long as you would like to, we could do that for you, according to  your designs, free of charge.



Q: What's your delivery time?

A: That depends. It usually takes 15-30 days for different products and quantity.
