JULY ® was founded in 1985 with more than 31 years of R&D and OEM experience.
|

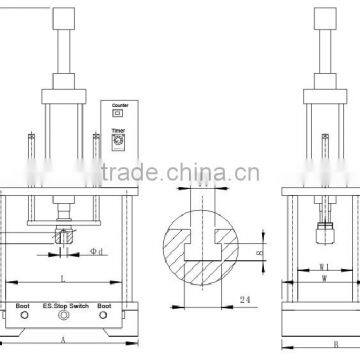

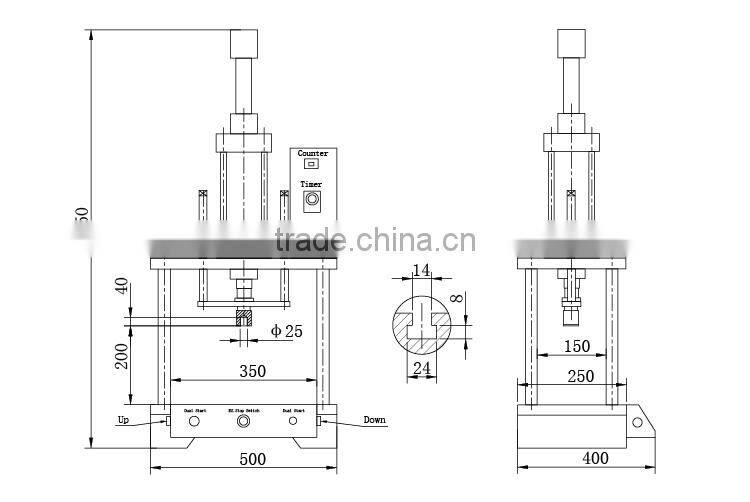

Drawing
Specification
| Model | JLCX101D-100 | JLCX101D-125 | JLCX101D-160 | JLCX101D-200 |
| Force | 500kg | 800kg | 1200kg | 2000KG |
| Working height | 250 | 250 | 250 | 250 |
| Cylinder size | φ100*100 | φ125*100 | φ160*100 | φ160*100 |
| Adjustable stroke | 50 | 50 | 50 | 50 |
| Power | AC220V,50Hz | AC220V,50Hz | AC220V,50Hz | AC220V,50Hz |
| Driving pressure | 0.4-0.7MPa | 0.4-0.7MPa | 0.4-0.7MPa | 0.4-0.7MPa |
| Weight | 90 | 110 | 140 | 160 |
| Driving pressure | Theoretical output | |||
| 0.4Mpa | 294kgf | 458kgf | 753kgf | 1206kgf |
| 0.5Mpa | 368kgf | 573kgf | 942kgf | 1507kgf |
| 0.6Mpa | 442kgf | 688kgf | 1130kgf | 1809kgf |
| 0.7Mpa | 515kgf | 802kgf | 1319kgf | 2110kgf |
Characteristics
1.Pneumatic presses powered by compressed air,noise,pollution-free environment.
2.Mini type light up less space,are widely used in small parts of the pressing,molding,assembly,riveting,printing,punching,cutting,bending,stamping and other light duty precision requirements.
3.Pneumatic presses results enough simple,smooth performance,and less maintenance,according to the size of the product or the mold height adjustment;
4.Beer gas system of the safe operation of their hands,others can be optional foot control;
5.Turn the cylinder with only the guide rod,a more accurate history of work;
6.Pneumatic presses can increase the heating temperature control mold and electrical boxes(for hot,mark);
7.The output power of 100-2200KG for choice;
8.Optional work table,dimensions:650*550*700mm
9.Special requirements of an acceptable order.
Application
Assemblage,molding,pressure distribution,punching,riveting,burrs treatment,etc.,are widely used in metal stamping forming.small motor into the rotor voltage,electronics group,riveting molding,etc.
Packing
Shipping
| By sea | By air | By express |
| Cheapest but longest option 18~30 days by sea delivery, best for large quantity order. | More expensive than sea delivery, But cheaper than express 5~7 days by air to airport. | Door to door service,the fastest and most expensive one, 3~6 days by express. |
|
|
Direct Factory 1.Our first factory founded in Taiwan in 1985 . 2.Two our own,factories in China. 3.ISO 9001:2008 Certificate.
R&D team
Quality is our culture
|
Application
Certificate
|
Our Advantages
1. Various style for each products and completely series pneumatic products for you to choose from.
2. Large stock for fast shipping.
3. High quality with competitive price
4. Sample order & small quantity order is ok
5. Customize according to your special demand.
6. Provide free products information.
7. Reliable quality assured and active after-sell service
Service Tips
Feel free to contact us at anytime if you have any problems or questions on your purchase. We will resolve any problems such as damaged, not as described, missing parts, and lost items. All emails will be replied within 24 hours except Sunday and Chinese holidays.
If you have any other requirements or questions, welcome to visit our website , or just contact us directly . Tha nk you!
FAQ
Q1. What is your term of payment?
A: Usually, we accept T/T, irrevocable L/C at sight. For regular orders, we prefer 30% in advance, 70% against the copy of B/L. For long term business relations, we have more advantage terms for payment.
Q2. What is your terms of delivery?
A: We accept FOB, CIF, DDU, DDP etc. You can choose the one which is the most convenient or cost-effective for you.
Q3: What is the lead time?
A: It usually takes 15 to 35 days after sample confirmation and receiving your advance payment. The specific delivery time depends on the items and the quantity of your order. If the item was nonstandard, we have to consider extra 10-15 days.
Q4: Can you produce according to the drawings?
A: We can accept customers' customization, but we need to communicate with our engineers about the production.
Q5: Can you use the spare parts that customers specify the brand?
A: We are very willing to accept the spare parts that customers specify the brand to product assembling, but we need to charge some assembling cost.
Q6: Can you supply the product mold or other related accessories?
A: We can on behalf of the procurement according to the customer's drawings and requirements. After the product mold and accessories are installed and debugged in the machine, it will be sent to you shipped with the machine.
Q7: Do you accept the factory inspection?
A: Yes, we are very happy to accept customers to visit. We are a manufacture with a very rich R & D and production experience for many years.
Q8: How to solve the quality of after-sales?
A: We have a professional after-sales service team to solve your problem at the first time. For product quality problems during the warranty period (non-human damage), we will be maintenance or replacement for you unconditionally. For man-made damage, we only be charged for the maintenance costs.
Q9:What is your shipping method?
A: We respect the client's choice, by sea, by air or by express.
Q10. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery. We have QC team comply with TQM, each step is in compliance to the standards.
|
