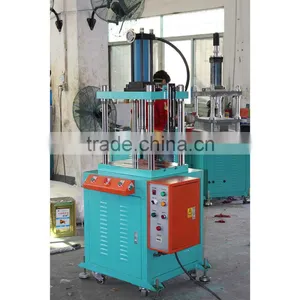

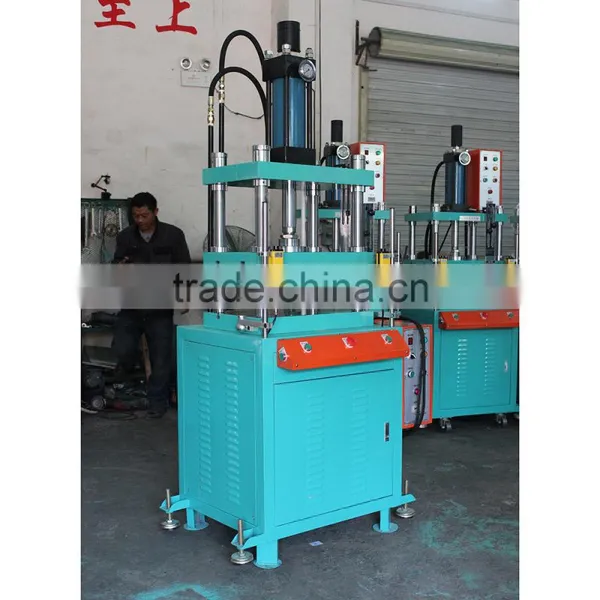

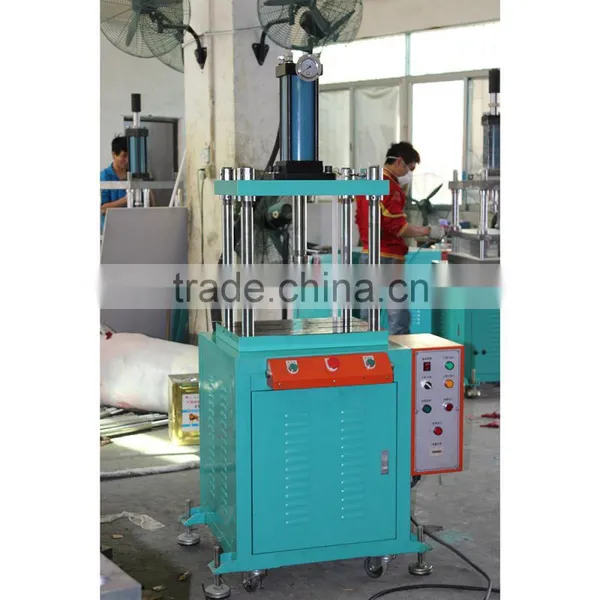

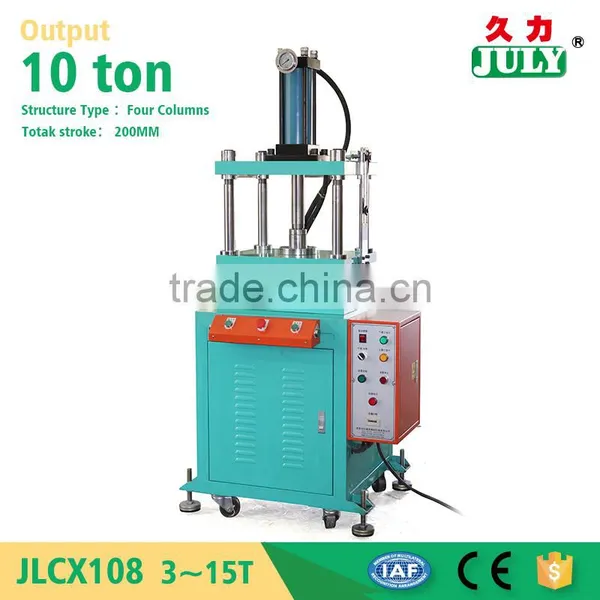

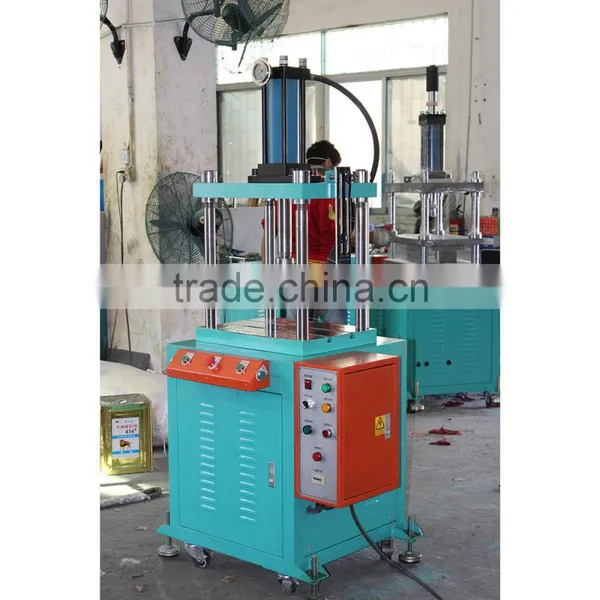

JULY Brand High Quality Four Columns Automatic 10 Ton Power Press

JULY Brand High Quality Four Columns Automatic 10 Ton Power Press thumbnail-1
JULY Brand High Quality Four Columns Automatic 10 Ton Power Press thumbnail-2
JULY Brand High Quality Four Columns Automatic 10 Ton Power Press thumbnail-3
JULY Brand High Quality Four Columns Automatic 10 Ton Power Press thumbnail-4
JULY Brand High Quality Four Columns Automatic 10 Ton Power Press thumbnail-5
JULY Brand High Quality Four Columns Automatic 10 Ton Power Press thumbnail-6
JULY Brand High Quality Four Columns Automatic 10 Ton Power Press photo-1
JULY Brand High Quality Four Columns Automatic 10 Ton Power Press photo-2
JULY Brand High Quality Four Columns Automatic 10 Ton Power Press photo-3
JULY Brand High Quality Four Columns Automatic 10 Ton Power Press photo-4
JULY Brand High Quality Four Columns Automatic 10 Ton Power Press photo-5
JULY Brand High Quality Four Columns Automatic 10 Ton Power Press photo-6
US$ 2,624 - 4,462 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
CNC or Not:
Normal
Power Source:
Hydraulic
Contact Supplier Request Quote Chat Now
Dongguan July Hydropneumatic Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shen zhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
CNC or Not Normal
Power Source Hydraulic
Place of Origin Guangdong, China
Brand Name JULY
Model Number JLCX108-10T
Voltage 380V
Power(W) 3.75kw
Weight 660kg
Dimension(L*W*H) 700*600*1700
Certification CE
Warranty one year
After-sales Service Provided Overseas service center available

Never deterred by challenges
Innovative at heart for 31 years
Proudly delivering on our promises





Hydro-pneumatic press machine Pneumatic press machine Hydraulic press machine Riveting Machine Heat press machine
(hot)JLYC (3~50T) (hot)JLYA  (0.1~0.5T) (hot)JLCX105C (1T~15T)  (hot)JLYE (5~10T) JLYD H (3~15T)
JLYCZ (3~15T) (hot)JLYB (0.3~1T) (hot)JLCX106K (10T~100T)

JLS-710

JLS-928

JLS-989

JLZ-989N

JLZ-988RR

JLZ-958K

JLZ-988RF

JLZ-968ML

JLZ-988DX

 (hot)JLCX530 (3T-50T)
(hot)JLYD (3~50T) JLCX101 (0.2T-1.2T) JLCX107 (3T~15T)
JLYDZ (3~15T) JLCX101D (0.5T-2T) LCX108 (3T~15T)
(hot)JLYE (5~10T) JLYD-A (0.1~2.2T) JLCX108J (5T~50T)
    (hot)JLCX108K (10T~100T)
    JLCX108T (5T~30T)
JULY® was founded in 1985 with more than 31 years of R&D and OEM experience.
          welcome to visit our website   >" href="http://july.en.china.cn/" target="_blank">>>

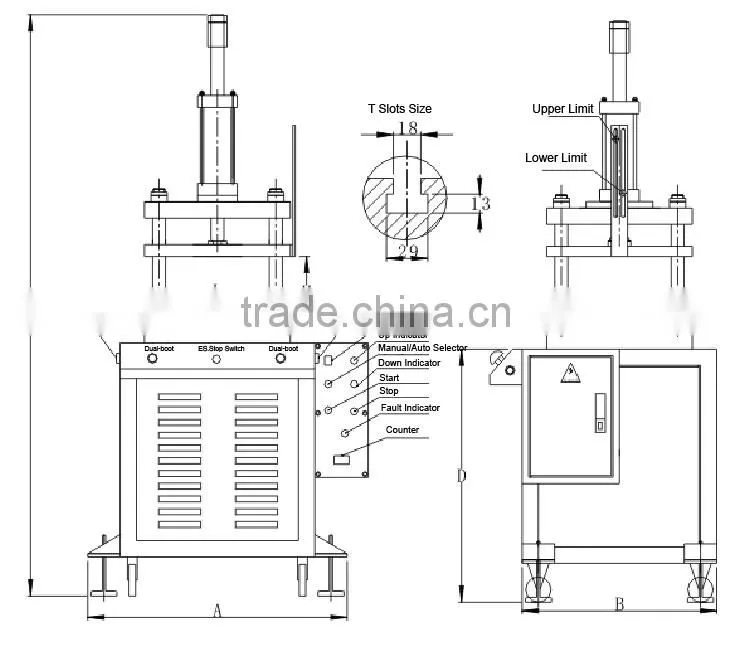

Drawing



JULY brand high quality four columns automatic 10 ton power press
Pressure Capacity A B C D H L W W1
3T 600 600 1650 780 200 300 250 125
5T 600 600 1700 780 200 400 300 180
10T 700 600 1700 780 300 440 400 280
15T 800 700 1780 780 300 500 400 350







Features





  1. Steel plate with four columns three,precision,high rigidity,high compressive strength;
  2. Hydraulic circuit design is simple and horsepower requirements of small,maintenance is easy;
  3. Pressure,stroke,pressure and other process requirements can be adjusted to suppress;
  4. Imported hydraulic components and electrical components,durable;
  5. Hands operating system,with emergency stop and jog function,safe and efficient;
  6. Machine is equipped with casters under the seat,move the light,smooth;
  7. Optional Photielectric protection device,the work safer.







Application



  1. Punching metal or non-metallic parts,stamping,molding,light stretching,plastic and pressure assembly;
  2. Glasses,locks and hardware parts of repression,electronic connectors,electrical parts,electrical switch,stator press-fit,etc.;
  3. Especially suitable for aluminum red edge,mobile phone casing,the phone keypad stamping,silicon steel sheet leveling,plastic.rubber flash treatment.







Specification





Specification 3T 5T 10T 15T 20T
Nominal Force 30KN 50KN 100KN 150KN 200KN
The Maximum Stroke 150MM 150MM 200MM 200MM 200MM
The Maximum Opening Height 200MM 200MM 300MM 300MM 350MM
The Down Velocity of The Slipper 90MM/S 90MM/S 85MM/S 70MM/S 70MM/S
The Up Velocity of The Slipper 90MM/S 90MM/S 85MM/S 70MM/S 70MM/S
The Size of The Working Table 300*250MM 400*300MM 440*400MM 500*400MM 550*400MM
The Distance Between Table and Floor 850MM 850MM 850MM 850MM 850MM
Electrical 380V 380V 380V 380V 380V
Motor Power 2.2KW 2.2KW 3.7KW 3.7KW 3.7KW
Oil Pump 75L 75L 75L 108L 120L
Weight 400KG 500KG 660KG 720KG 850KG











Packaging



We adopt the advanced material Expansible Polystyrene(EPS) as inside packaging , which is more secure and eco-friendly than common packing. Master cartons outside.







Shopping



By sea Cheapest but longest option 18~30 days by sea delivery, best for large quantity order.
By air More expensive than sea delivery, But cheaper than express 5~7 days by air to airport.
By express Door to door service,the fastest and most expensive one, 3~6 days by express.









Company Information





JULY brand high quality four columns automatic 10 ton power press



Direct Factory

1.Our first factory founded in Taiwan in 1985 .
2.Two our own,factories in China.
3.ISO 9001:2008 Certificate.



R&D team
Efficient and professional R&D team of more than 20 people.



Quality is our culture
There is a set of complete system to recording all material, production and inspection, which helps us to quickly tracking and solve any problems.



Application
Our products and equipment apply to many fields.
Our products are widely recognized and trusted by users.



Certificate
We have been obtaining lots of patents.
We have also won the honorary title of national high -tech and innovative enterprise in China .



JULY brand high quality four columns automatic 10 ton power press



JULY brand high quality four columns automatic 10 ton power press









Our Advantages





  1. Various style for each products and completely series pneumatic products for you to choose from.
  2. Large stock for fast shipping.
  3. High quality with competitive price
  4. Sample order & small quantity order is ok
  5. Customize according to your special demand.
  6. Provide free products information.
  7. Reliable quality assured and active after-sell service







Cooperation Terms





  • Sample terms: Sample fee is charged and will be refunded when order is placed.
  • Sample time: 3-5 working days.
  • Payment terms:  Full payment in advance.
  • Delivery Time: 3-5 weeks after sample confirmation.







Service Tips





Feel free to contact us at anytime if you have any problems or questions on your purchase. We will resolve

any problemssuch as damaged, not as described, missing parts, and lost items. All emails will be replied

within 24 hours exceptSunday and Chinese holidays.

If you have any other requirements or questions, welcome to visit our website  , or just contact with us directly. Thank you!









FAQ



Q: What products do you supply?

A:  We supply metal cylinders, booster pumps, press machines, riveting machine,  pressure gauge  test  rig,

zinc alloy ingot and the other zinc alloy products etc.



Q: Can you guarantee quality for orders?

A: Sure. We can 100% guarantee quality for all of your orders, as what  we want   is a long-term business

relationship with you, rather than one off business.



Q: Can I have my brand and put my logo on the products?

A: Of course. As long as you would like to, we could do that for you, according to  your designs, free of charge.



Q: What's your delivery time?

A: That depends. It usually takes 15-30 days for different products and quantity.
