Help CenterNew Generation Waste Plastic to Biodiesel,waste Tyre to Biodiesel,waste Tyre to Biodiesel Machine Plant
Related Products
-
DAYI 2016Best Selling Automatic Waste Tyre Pyrolysis PlantUS$ 35,000 - 79,000MOQ: 1 Set -
New Genaration Rubber Refining EquipmentUS$ 30,000 - 80,000MOQ: 1 Set
-
Waste Rubber Recycling Plant !!!! 45% Oil, 30% Carbon Black, 10% Steel, Remianing GasUS$ 50,000 - 90,000MOQ: 1 Set
-
2014 Plastic Pyrolysis Plant /Oil Distillation Plant From House Garbage ,tyres,rubber-Waste ManagementUS$ 29,000 - 79,000MOQ: 1 Set
-
2014 New Used Oil Refining EquipmentUS$ 40,000 - 80,000MOQ: 1 Set

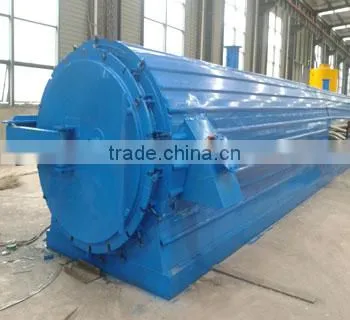

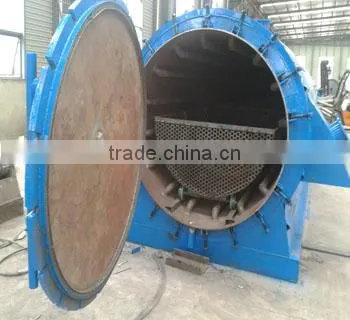

Full open door design:
a. speedy loding in an steel pulling out;
b. easily cooling down after one batch finished, saving time;
c. no leaking with special high temperature flexible graphite packing.
High condenser system:
a. High condensing efficiency condensers with more oil output.
b. Good quality oil, longer lifetime, and easy to clean.
Discharging system:
a. speedy fully enclosed auto-discharging under high temperature, avoiding carbon black pollution.
b. save time.
Waste gas recycling system:
Fully burned after recycling and utilization, saving fuel and preventing pollution.
Direct heating system:
Enlarging heating square to lengthen the life span of the reactor and easy to control the temperature.
2.Dynamic heating pyrolysis equipment with high efficiencyThe pyrolysis reactor use dynamic heating pyrolysis equipment with high efficiency,
the rotary pyrolysis reactor shell is heated under the uniform rotation, it can be
quickly and evenly passed to pyrolysis material. Due to the material change the
heating position continuously, material heating no dead ends ,heating evenly,
high temperature change to low temperature to catalytic pyrolysis, reduce
noncondensable gas, increase material output of oil yield, and the pyrolysis
equipment inner shell
coking less, reactor shell surface oxidation phenomena of split minor, extend
the service life of the device.
investment costs, production costs and operation costs.
3.Environmental protection
Carbon dioxide reduction technologies, gasification and pyrolysis technology of
combined ,resolved the garbage pyrolysis of smoke problem , lower than
direct combustion of the dioxin content more than 1000 times, 4-6 times less
than the equivalent national standard 0.4ng TEQ/m3, even lower than the
highest standardsin Europe 0.1ng TEQ/m3 content, is 0.087ng TEQ/m3.
Specification | Capacity | Raw material | Working time (hrs) | Shipped by |
DYLY-2200-6000 | 5Ton | Waste tyres | 12 | 2*40HQ |
DYLY-2600-6000 | 8Ton | Cables | 15 | 1*40HQ+1*40FR |
DYLY-2600-6600 | 10Ton | Plastics | 18 | 1*40HQ+1*40FR |
DYLY-2800-6000 | 10Ton | Rubber | 18 | 1*40HQ+1*40FR |
DYLY-2800-6600 | 12Ton | Oil sludge | 20 | 1*40HQ+1*40FR |

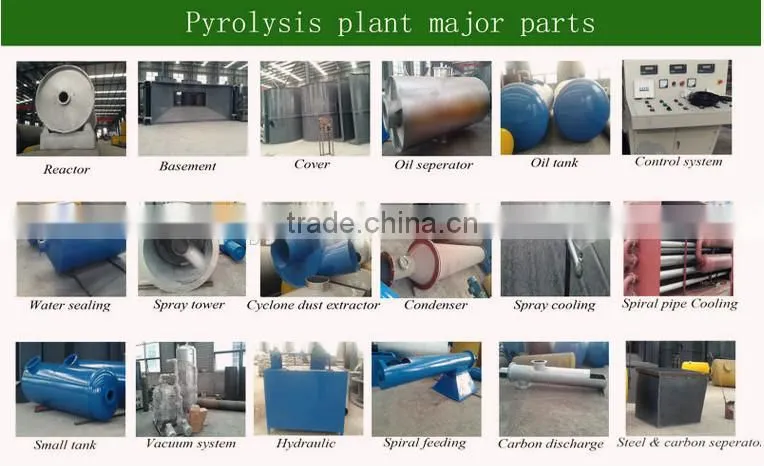

Reactor | 1. Made of Q345R 2. Auto-welding both inside and outside 3. With rock wool and first grade alumilum insulation board |
Auto-feeder | 1. 60 ton hydraulic pressure 2. Can feed all types of materials 3. Save labor and time
|
Catalyst chamber | 1. improve oil yield and oil quality 2. Reduce the speed of oil gas so that it can be better cooled |
Oil-water separator | 1. Separate oil and water 2. Collect heavy oil 3. Water sealing design keep safety |
Condenser | 1. Include condenser pipe, horizontal condenser and waste gas condenser 2. The oil gas is cooled separately by small pipes inside condenser 3. Light oil is collected here |
Vacuum device | 1.Keep machine running under normal pressure 2.Have founction of keeping safe |
Anti-back fire device | 1. Recycle residual gas to furnace as fuel 2. Water sealing design prevent tempering |
Dust removal device | Dispose of flue gas caused by using coal, wood, oil or natural gas. |
3D picture of waste tyre/plastic pyrolysis plant
Working flow
Oil rate of waste plastic and tyre pyrolysis | ||
PE | 50%-75% | |
PP | 50%-75% | |
PS | 50%-75% | |
ABS | 40% | |
Leftovers of paper | Wet 15-20%, dry 60% | |
House garbage | 35-50% | |
Plastic cable | 80% | |
Plastic bag | 50% | |
Submarine cable | 75% | |
Rubber cable | 35% | |
Sole | 30% | |
Big tires | 45-50% | |
Small tires | 35-40% | |
PVC | Not suitable | |
PET | Not suitable | |
Big tyre | 40-45% | |
Small tyre | 30-35% | |
Feature of our plants:
1.Environmental protection equipment: The complete set of unit produces
no smoke and no smell
2. High efficiency and good performance: the output capacity of pure raw
is more than 80% . net oil yield over more than 40%
3. The design of unit is reasonable and advanced :
After-sale service:
1. Delivery time-- It will be within 15 working days after we receive the deposit.
2. Warranty- The warranty period is 18 months, engineers available to service at any time.
3. Installation and Training-- Our Company will dispatch one technician for installation and training, ensuring the operation safety. The installation period shall be
one month; otherwise, you have to pay extra salary for the technician with the price of USD 60.00 per day.
4. Regular phone visiting to check out if there is anything we can do for you, maintenance guiding, easily worn-out parts and catalyst offering, on-site maintenance.
Remarks:
A. we can design the machine according to your requirements.
B. Delivery time can be shorten according to your requirement.
C. We can offer other virety device according to your requirement.
