1.Welcome to our company
ShangQiu Da Yi Black Waste Oil Distillation Machine, Waste Oil to Base Oil
The history of waste lubricating oil regeneration technology is about several decades since 1970s and 1980s
in China. It encounters many difficulties and opportunities and the development experienced up and down, but
it made a lot of progress.
Why Recycle Used Oil?
Did you know that used engine oil never wears out? It just gets dirty and can be recycled, cleaned, and used again. Recycling used engine oil conserves a natural resource (oil) and is good for the environment too! engine oil poured onto the ground or into storm drains, or tossed into trash cans (even in a sealed container) can contaminate and pollute the soil, groundwater, streams, and rivers. Recycling your used engine oil reduces this pollution threat. When you take your used oil to recycle, you are protecting the environment, conserving a valuable resource, and getting paid for it. That's a winning combination!
Waste motor oil recycling machine is particularly suitable to regenerate used internal-combustion engine oil including diesel engine oil, gasoline engine oil and used hydraulic oil, other used machinery’s lubrication oil. ZSY series are able to effectively remove colloid, oxid, acid, pitch, particles, impurities, water, gas in the used oil. Specially, it can restore the color of used oil and remove the scent rapidly.
Parameters
Parameter name | unit | Parameter | Note |
Treating capacity | Ton/per day(24h) | 7-30 | As required |
Recovery rate |
| 80%-85% | None or tiny water content |
color | International color card | 1.5-2 |
|
Processing feature |
| continuous |
|
Water content |
| Qualified for use | See the oil standard |
Flash point |
| Qualified for use | See the report |
Oil viscosity |
| Qualified for use | See the report |
Technical support
We can provide technical support for waste management, it can meet the environment requirements.( depends on the national standards)

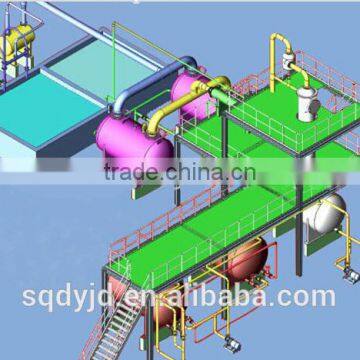

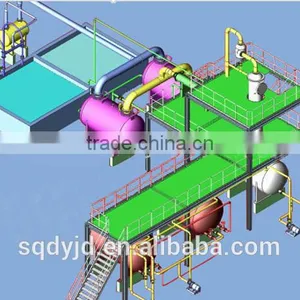

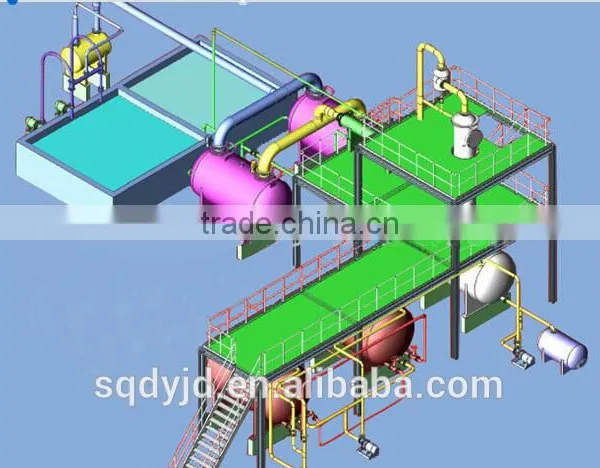

2.3D Work flow chat of Waste Diesel Recycling Distillation Plant
3 .Technical Parameter For Waste Diesel Recycling Distillation Plant
Distillation reactor
Type | Technical parameter | ||||
Steel thickness(mm) | daily disposal(T) | daily power(°C) | daily water(m3) | daily coal(kg) | |
8m3/5T | 12 | 5 | 80 | 0.5 | 500-600 |
12m3/8T | 12 | 8 | 120 | 0.8 | 700-900 |
15m3/10T | 16 | 10 | 180 | 1.5 | 1200-1400 |
30m3/20T | 16 | 20 | 280 | 2.5 | 1500-1600 |
Catalyst tower
Type | Technical parameter | |||
thickness of tower(mm) | dia. of tower(φ) | high of tower(mm) | tray quantity of tower(layer) | |
8m3/5T | 6 | 600 | 2800 | 3 |
12m3/8T | 8 | 700 | 3600 | 3 |
15m3/10T | 10 | 800 | 3800 | 4 |
30m3/20T | 10 | 800 | 4600 | 4 |
4.Main specification Of Waste Diesel Recycling Distillation Plant
Model | Reactor material | Capacity | Container |
DYZL-05 | 316L stainless steel | 3-5tons | 2*40HQ |
DYZL-10 | 316L stainless steel | 6-10tons | 2*40HQ |
DYZL-15 | 316L stainless steel | 10-15tons | 2*40HQ |
DYZL-20 | 316L stainless steel | 15-20tons | 3*40HQ |
DYZL-25 | 316L stainless steel | 20-25tons | 3*40HQ |
DYZL-30 | 316L stainless steel | 25-30tons | 4*40HQ |
5. Waste Diesel Recycling Distillation Plant Features
1.This continuous oil distillaiton plant can working continuous non-stop for about 30 Days
2.The whole system have pre-heating system, this system use exhaust gas (produced by coal or wood burining to heat distillaiton plant )to heating raw oil before raw oil go into distillaiton reactor. This preaheating sytem can save fuel in great degree and saving heating time .
3.This continuous oil distillaiton plant is environmental protection.
The plant have advance dedust and desulfer system ,wich can keep the smoke go into sky non-polution.
4. This continuous oil distillaiton plant is safety
a. There is safety vavles on the plant
b. There is auto alarming sytem ont he plant
c. There is electric control system on the plant
