Non-pullution Eco-friendly Oil From Waste Engine Oil distillation Unit
Wste engine oil to diesel process: The cold material(waste oil) should be pre-heat exchanger with the overhead vapor phase component first. Material after heat exchange into the falling film evaporator using secondary heating flue gas dehydration, and then through the tube furnae heating again after the temperature meet the process requirements into ectification within the column control relux ratio at the same time. On the top of tower, the gas phase components after heat exchange with the raw condensation reveiving tank into the light components. To restructuring after restructuring of condensing tank. Tank bottom components into the slag. Non-condensable gas back into the tube furnace combustion after water seal

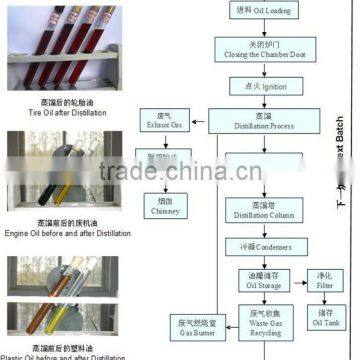

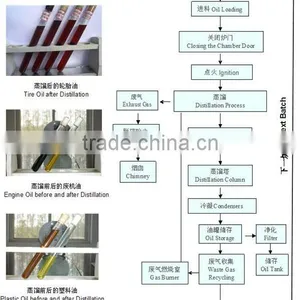

1. work-flow

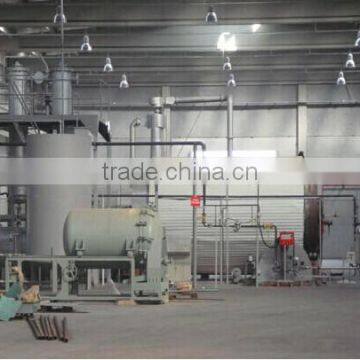

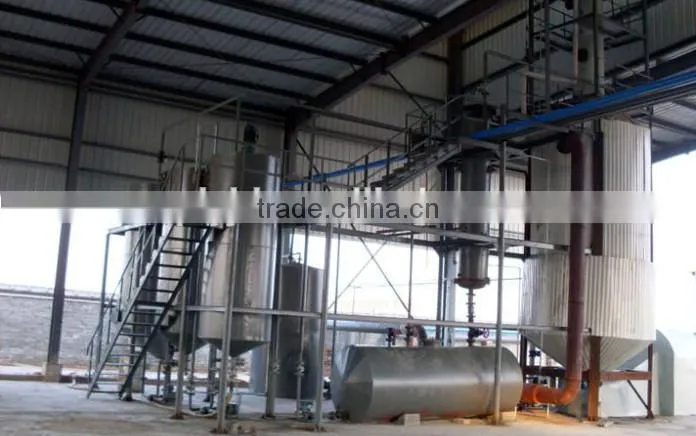

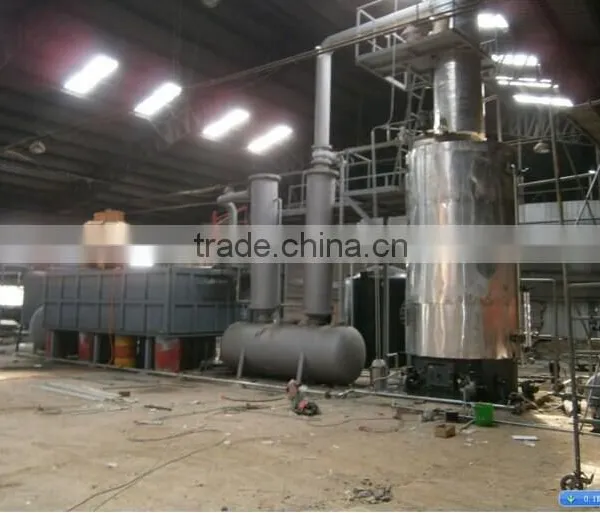

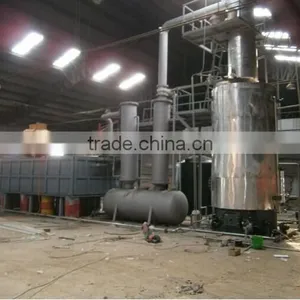

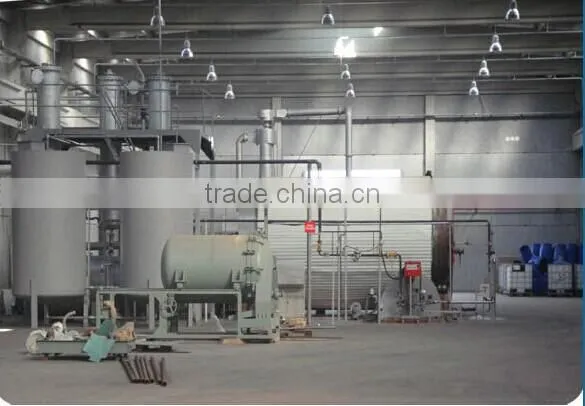

2. picture of product

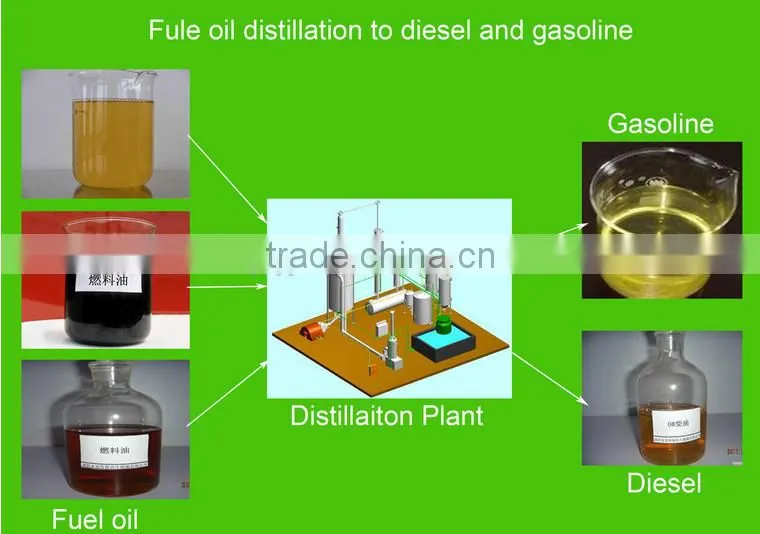

3.Material and output oil rate
Details of Tyre Pyrolysis Oil
1. The raw materials: waste tires,plastics and rubber
2. Total Capacity: 5 tons/day, 8 tons/day,10 tons/day, 12 tons/day
3. the size of reactor:2.2m*6m,2.6m*6m, 2.8m*68m, 2.8m*6.6m
4.Average crude oil: 45%
5.Average carbon productivity :35%
6. Average steel productivity: Around 10%, depends on the tire kind
7.Average gas productivity: 5%-10%
8. The decompose temperature: maximum temperature is 380-400 degree Cm
9. Coal or firewood cost: 60kg or 70kg
10.Discharging time: 2-3 hours
11.Feed in time: 2 hour
12.Reactor depth-ratio: 2/3 minutes
13.Design pressure: 0.04 Mpa
No |
Item |
|
Content |
||
1 |
Type |
|
ZY-10 |
ZY-15 |
ZY-20 |
2 |
Reactor size |
1600*4000*16mm |
2000×5000×16mm |
2200×5500×16mm |
2400×6000×16mm |
3 |
Raw material |
Waste engine oil, waste plastic oil, tyre crude oil to diesel
|
|||
4 |
24h handling capacity |
5T |
10T |
15T |
20T |
5 |
Reactor rotate speed |
0.4/min |
0.4/min |
0.4/min |
0.4/min |
6 |
Power |
12kw |
16kw |
18kw |
20kw |
7 |
Noise dB(A) |
≤85 |
≤85 |
≤85 |
≤85 |
8 |
Manufacturing cycle |
21 Days |
21 Days |
28 Days |
35 Days |
4.our international clients
After-sale service
a. Installation, commissioning and training
We will send installation technician to the buyer for the installation, commissioning and training.
b. Catalyst formula
We will provide the formula of catalyst free of charge.
c. Warranty period
One year warranty, lifelong time maintenance.
