Black Oil Recycling Plant Getting Fuel For Power Generator
1.Plant Features
A.Can be used for multi-mateiral ,
waste engine oi, black oil, crude oil. sludge oil
B.Negative pressure system ,saving fuel and working time
C. 24hours non stop, fully continuous .24hour can process 10Ton raw oil
D. auto -feeding ,continuous feeding
E.Zero Plllution, 3-leve dedust system, under ground dedust system ,keeping zero pollution
F.Completely safe, have safety valves ,auto alarming device
2. Black Oil Recycling Plant Getting Fuel For Power Generator Working Process
A.firstly ditllate engine oil to base oil
B.make base oil to diesel

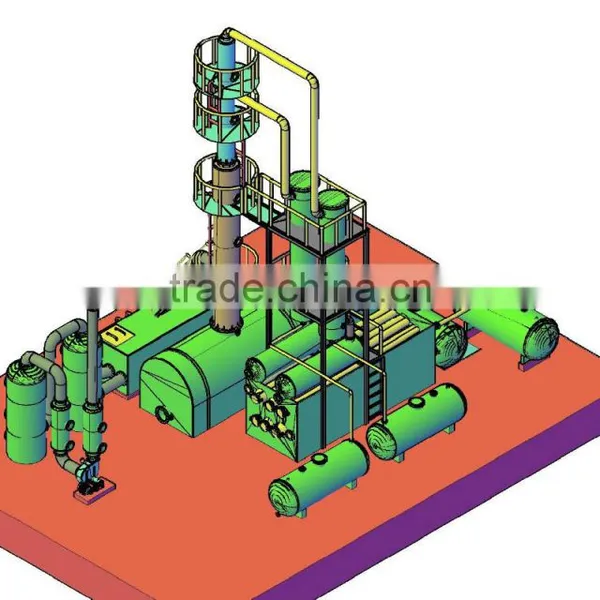

3. Black Oil Recycling Plant Getting Fuel For Power Generator Major Parts:
1.process craft for each step
2.A.preheater
Make remaining hot from the spiral flue outside the reactor to preheat the raw material oil ,it is physical reactin

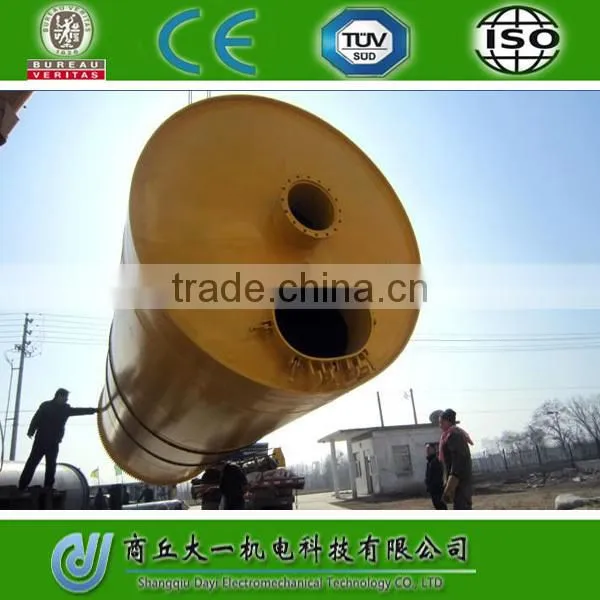

B.reactor
After preheating ,the hot oil will be transported into the reactor by the oil pump !Before the hot oil into the reactor,there must be some oil at the bottom of the reactor and be heated already!due hot oil has already with some temperature so temperature will be rise more quikly than normal temperature oil in this way it can save energy ,improve effeciency! In this process liquid oil become oil gas little by little !it is physical reaction
C,Catalyst tower
It has three tower layer inside the catalyst tower
Every layer will be put catalyst for impurities removal ,decolor and smell removal according to raw material oil! To purify oil !it is Chemical reaction
Catalyst formular will be tailor make according to customer
E.Cooling system including pipe condenser ,condenser ,calandria cooling system and cooling tower
then the clean oil gas will go though the strong cooling system to low down the temperature quickly
F,oil water separator tank
The clean oil gas will be cooling down to become liquid oil into the oil water separator tank,it is physical reaction
G.stainless steel pipe filter
Pipe filter with filter bag which can prevent the invisible impurities size :300-500 mesh though ,it is physical reaction ,to purify oil
H.nagative pressure system
can make the running temperature low down,save energy ,improve efficiency ,ensure the safety of running !
I.water sealing
There will be few flammable gas which can not be cooling down in the normal condition after passing though the cooling system,though water sealing it will be go though gas burner ,recycle used by heating the reactor !
After the full process ,if the oil still can not reach your aim
Then the spare equipment begin work
A.stiring tank,
some addtivites will be add into the stiring tank to adjust oil index ,like flash point improver and so on!it is chemical reaction
B.filter tank
3pcs filter tank ,inside will be put filter sand ,it is also a kind of catalyst
After oil goes though filter tank ,the color will be very good!it is also chemical reaction

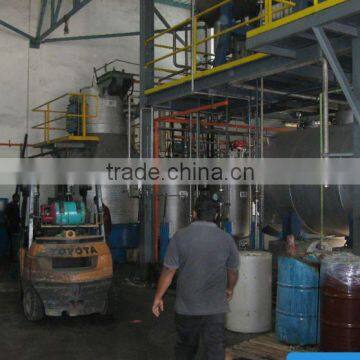

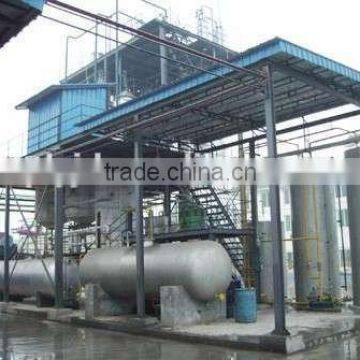

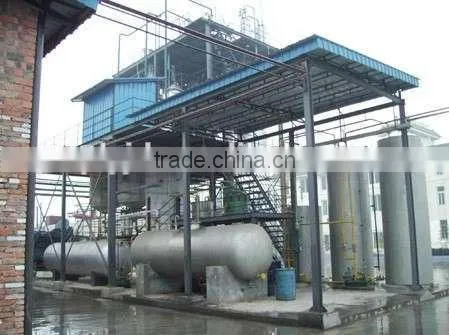

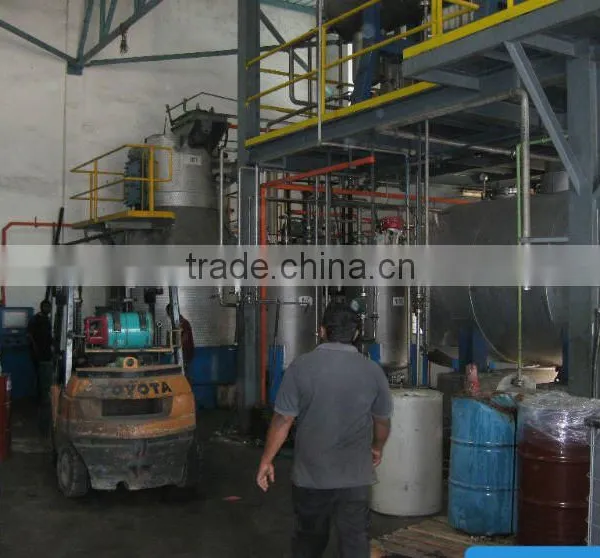

4. Black Oil Recycling Plant Getting Fuel For Power Generator Photos

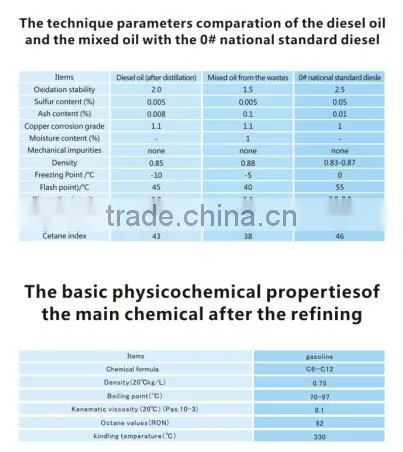

5. Black Oil Recycling Plant Getting Fuel For Power Generator
6.About us:
Shangqiu Dayi Electromechanical Technology Co.,LTd. is a professional manufacturer engaged in the research, development, production, sale and service of Environmental machines, waste tire/rubber/plastic pyrolysis equipment, waste oil distillation machines, etc. We are located in South chenfeng Road, Pingtai Economic and development Zone ,shangqiu city, Henan province, China, transportation convenient.
We have rich experience(5 years experience) in making and installation. Dayi is the top 10 enterprise in disposing waste rubber and plastic and has been cooperated with one South Korea company to dispose waste plastic . The company has gained rich experience and achievement in processing waste solid. This project in dealing with city living waste has been approved by South Korea government and the continuous equipment has been under testing in Korea. The production line of processing level 2 waste tyre with automatic control has been under testing in Hong Kong.
Our company is about 133400 square meter ,and the workshop is 58000 squremeter ,we have lathes ,milling machines,grinding machines and planders , broaching machines ,pucnhing machines,NC lathes,CNC miling machies,digital control drill and other testing device.We have more than 100 workers including 3 high-class engineers,10 professors ,and 40 technicists.Our Machine have been sold to India, Malaysia, Pakistan, Bangladesh, Lebanon, Mexico, Europe ETC.
