Waste Plastic To Oil Recycling Plant 20 Ton Capacity
1.Technical Details For Waste Plastic To Oil Recycling Plant 20 Ton Capacity
No | Item | Content | ||
1 | Reactor size | 2000×6600×16mm | 2600×6600×16mm | 2800×7500×18mm |
2 | Raw material | Waste tyre,waste plastic,waste rubber,waste oil,waste straw etc. | ||
3 | Structural form | Horizontal rotate | Horizontal rotate | Horizontal rotate |
4 | 24h handling capacity | 10T | 15T | 20T |
5 | Working pressure | Micro negative pressure | Micro negative pressure | Micro negative pressure |
6 | Reactor rotate speed | 0.4/min | 0.4/min | 0.4/min |
7 | Power | 16kw | 18kw | 20kw |
8 |
Cooling model | Coiled pipe cooling Condenser cooling Spray cooling
| Coiled pipe cooling Condenser cooling Spray cooling
| Coiled pipe cooling Condenser cooling Spray cooling
|
9 | Transmission model | Dual drive | Dual drive | Dual drive |
10 | Noise dB(A) | ≤85 | ≤85 | ≤85 |
11 | Heating method | Coal ,Gas,Fuel oil | Coal ,Gas,Fuel oil | Coal ,Gas,Fuel oil |
12 | Working form | intermittent | intermittent | intermittent |
13 | Install method | We send technician to guide the installation for free | We send technician to guide the installation for free | We send technician to guide the installation for free |
14 | Delivery time | Payment within 20 working days after payment. | ||
15 | Installation time | Internally within 20 days to complete the installation, commissioning, training, 25-30 days in foreign countries. | ||
16 | After-sale service | Free lifetime testing, maintenance, within 2 year of free major parts replacement. | ||
17 | Working life | 5 years | 5 years | 5 years |

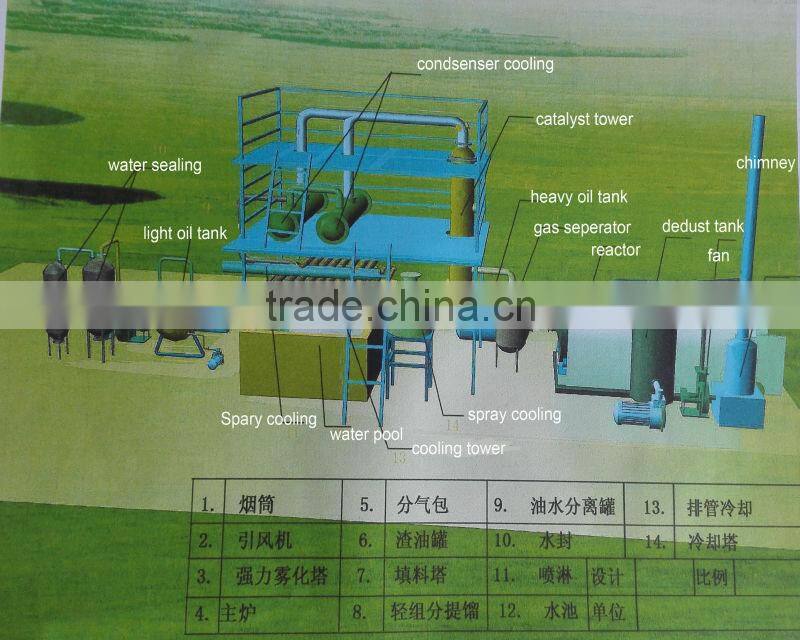

2. Waste Plastic To Oil Recycling Plant Working Flow Chart
3.Oil Rate For Different Material of Waste Plastic To Oil Recycling Plant
PE | 50%-75% | |
PP | 50%-75% | |
PS | 50%-75% | |
ABS | 40% | |
Leftovers of paper | Wet 15-20%, dry 60% | |
House garbage | 35-50% | |
Plastic cable | 80% | |
Plastic bag | 50% | |
Submarine cable | 75% | |
Rubber cable | 35% | |
Sole | 30% | |
Big tires | 45-50% | |
Small tires | 35-40% | |
PVC | Not suitable | |
PET | Not suitable | |
Big tyre | 40-45% | |
Small tyre | 30-35% | |

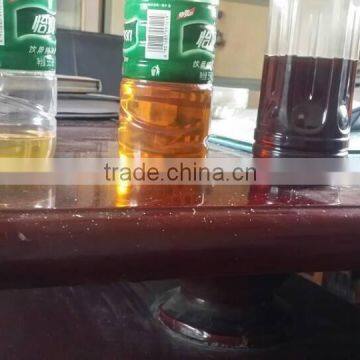

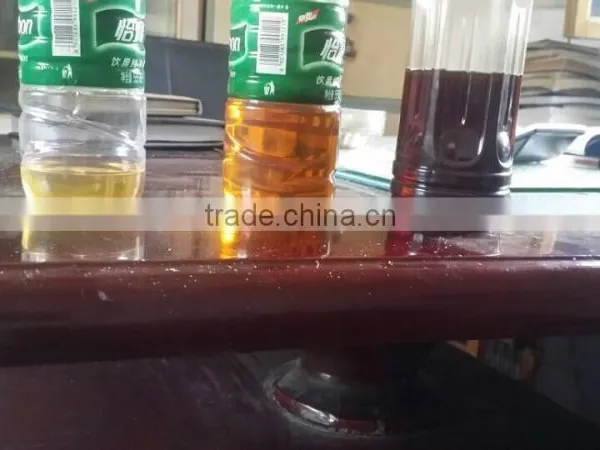

4.Plastic Pyrolysis Oil Parameter
Density | g/cm3 | 0.83-0.87 |
Freezing Point | oC | 10 |
flash point | oC | 40 |
Kinematic viscosity | mPa.s | 8 |
Combustion value | kJ/kg | 9500 |

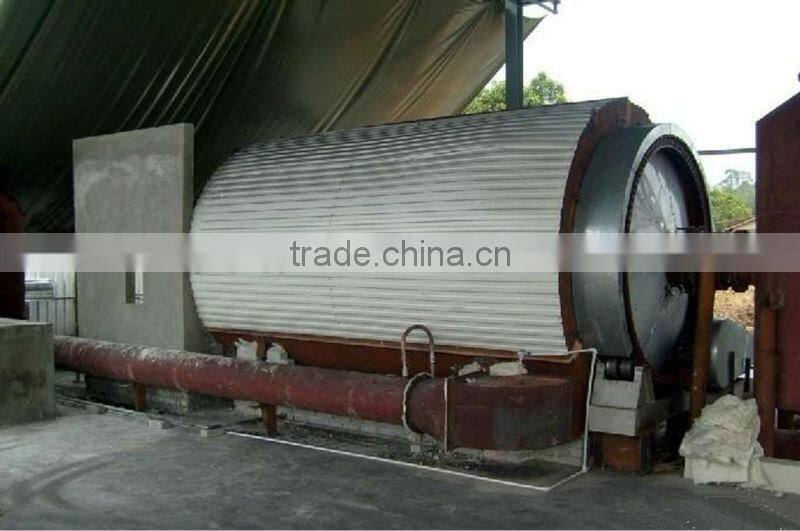

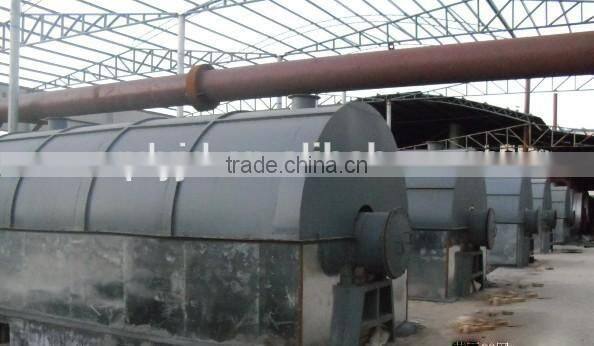

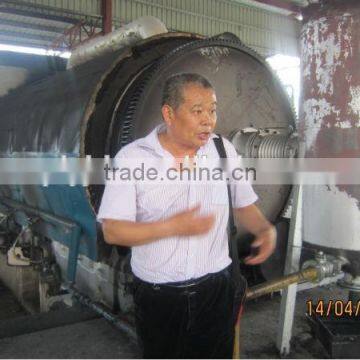

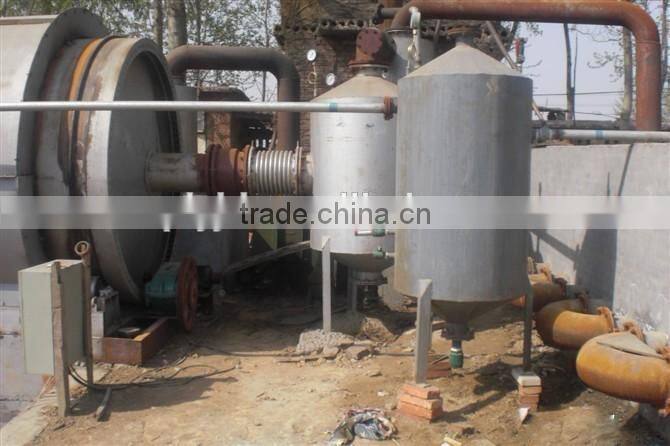

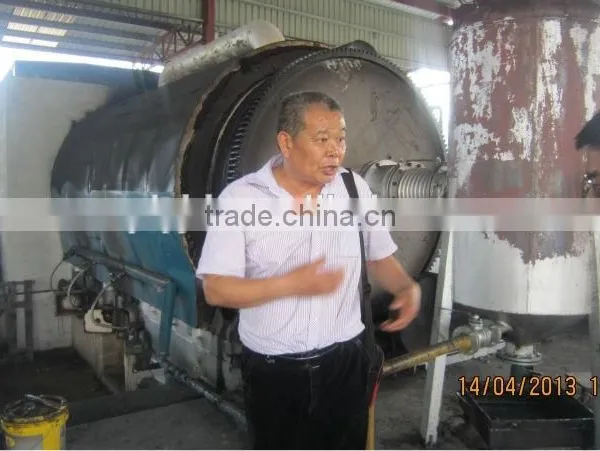

5.Photos of Waste Plastic To Oil Recycling Plant

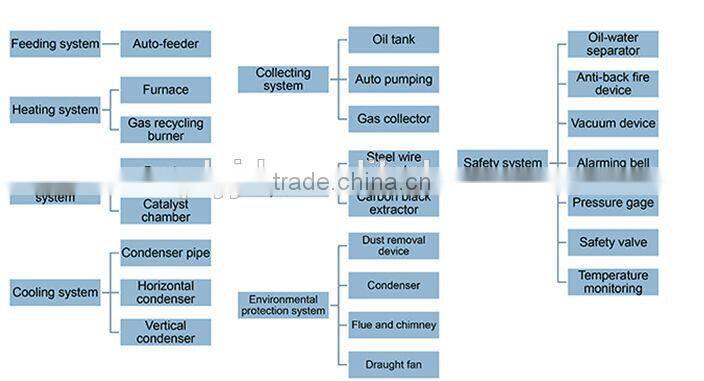

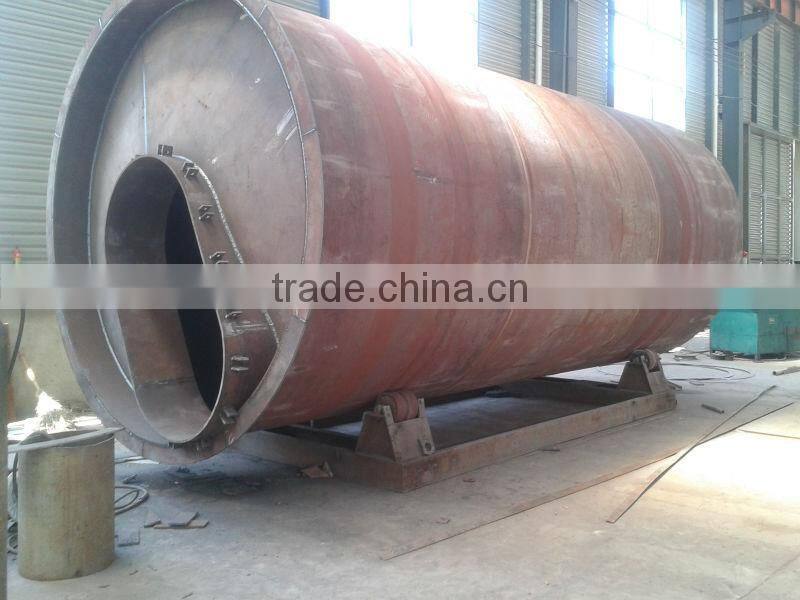

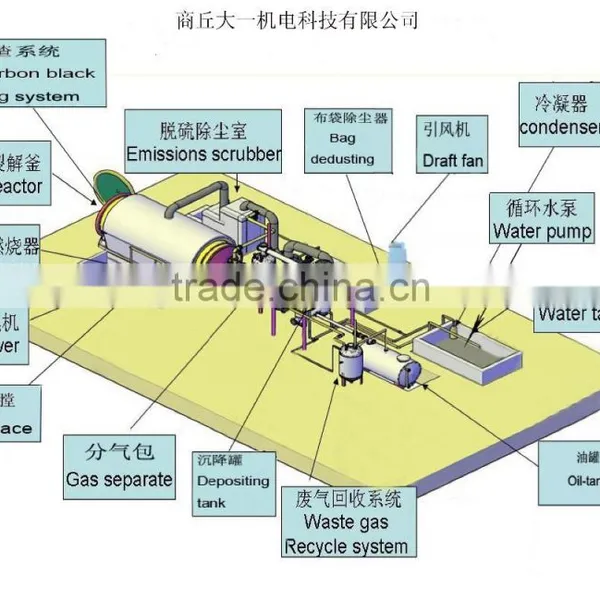

6.Major parts of Waste Plastic To Oil Recycling Plant 20 Ton Capacity
7.Our Waste Plastic To Oil Recycling Plant Features
A. Safety .
1) Two devices to avoid backfire in production: oil-water separator and anti-back fire device.
2) Vacuum device makes reactor working under ordinary pressure or negative pressure.
3) Temperature monitoring device to avoid excessive working temperature.
4) Pressure gage to monitor the pressure. If it goes above a certain level, the bell will alarm and the safety valve will release the pressure automatically.
5) Carbon black is discharged in a closed situation to avoid catching fire.
B. Environmental protection
1) The flue gas (caused by burning fuel to heat the reactor) will be purified and cooled by dust removal device, then can be released into air through chimney.
2) The procedure to remove carbon black is working under closed situation to avoid pollution.
C. High oil yield
1. We have 3 steps for cooling system: one condenser pipe, two large horizontal condensers and two vertical condensers. The oil gas pass through 3 steps cooling system in sequence. The total cooling area is 65 square meter.
2. When the oil gas pass through the condensers, it’s divided into several portions by small pipes inside condenser and be cooled separately.
3. In this way we maximize the cooling effect and improve the oil yield.
D. High oil quality
The oil gas is purified by molecular sieve inside catalyst chamber so that the quality of oil is higher.
E. Energy saving
1) The flame path is designed as spiral so that the quantity of heat can be fully used.
2) The residual gas from pyrolysis is recycled to furnace burning to heating the reactor.
3) The insulation cover is formed by 3 levels: steel plate, rock wool and refractory cement. Excellent thermal insulation effect helps saving fuel.
F. High degree of automation

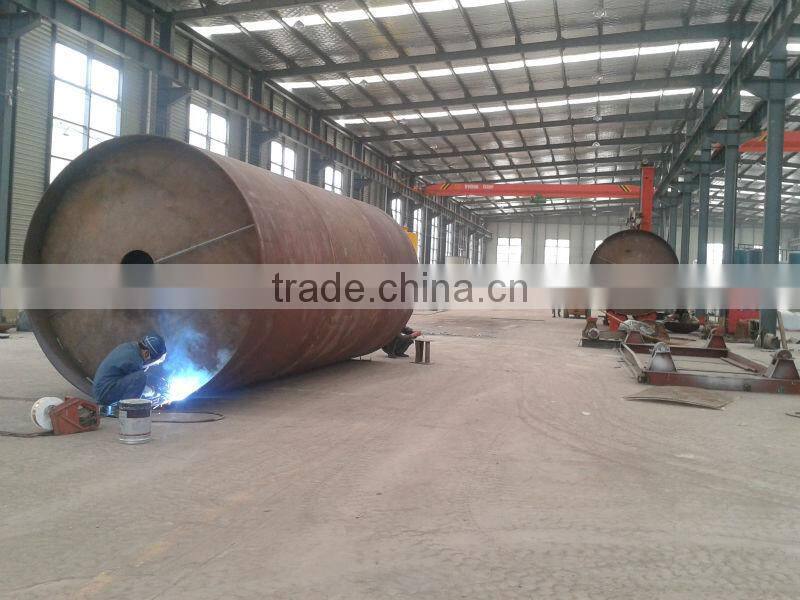

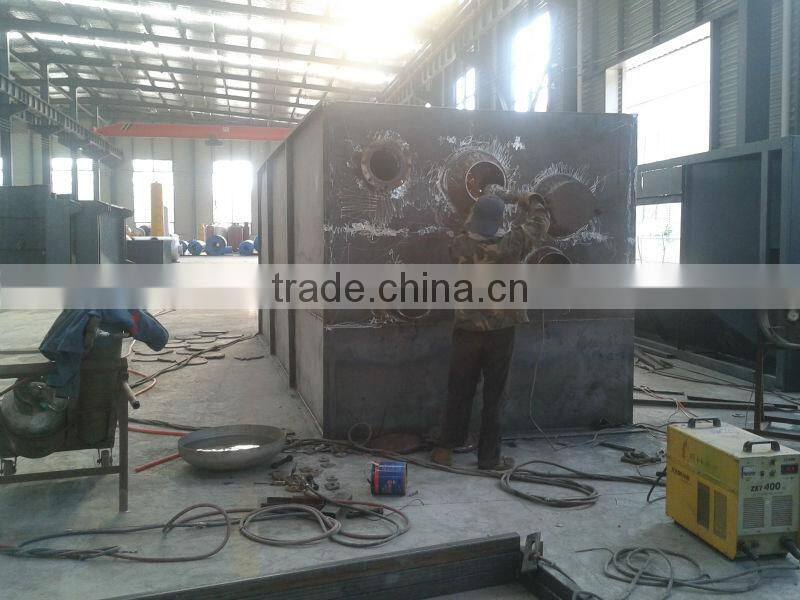

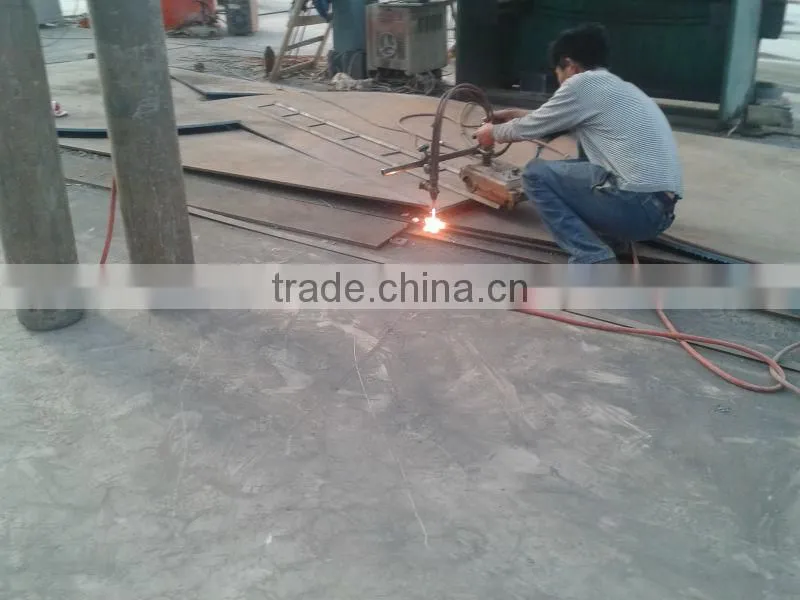

1) In manufacturing we use auto cutting machine, auto welding machine, auto rolling machine so that both quality and appearance of our products can be guaranteed.
2) In production, we use auto-feeder to feed raw materials into auto-feeder. By auto-feeder it needs few workers and less time to feed. And because of 50 ton hydraulic pressure from auto-feeder, it can feed more tires than labor.
G. Long service life
1) The material of reactor is Q345R boiler plate with 16/18mm thickness which is produced by Chinese well-known enterprise. The head of reactor and accessories are using one-piece molding shell cover rather than welded plate.
2) All cutting, rolling and welding works are finished by automatic machines.
3) We know quite well about the material quality and manufacturing process, that’s why we are confident in the service life of our products.
4) We also supply installation service, training service and one year warranty.
8.The material for our Waste Plastic To Oil Recycling Plant
Q245R for reactor ,
Common steel for other parts
stainessless steel for de-sulpher and dust removal tank
common tube pipe for water pipe
Galvanized pipe for oil pipe
