Specifications
oil machine1.easy operation
2.high oil putout rate
3.easy maintenance
4.CE ISO9001

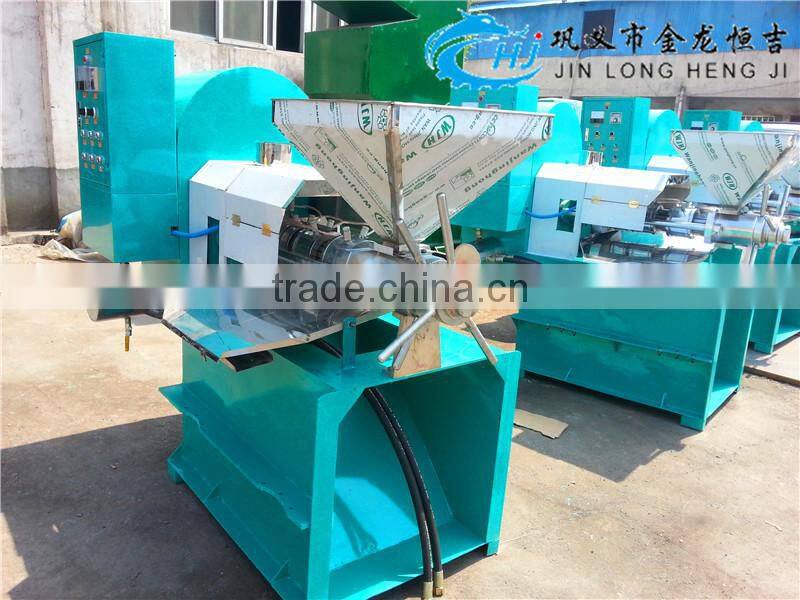

Hengji oil machine/olive oil squeezing machine
Introduction of oil machine
This kind of oil machine has compact and simple structure which is very easy to operate
and maintain.New Condition nut seeds oil press it can be used for cold or hot processing.
Oil extraction rate reach 93% and dry cake residual oil rate around 8%.
Simple structure, easy operating, most important is the oil quality is much higher.
Application of oil machine
Oil machine is widely used to press seeds such as farming seeds,pumpkin seeds,peanut,beans,
sesame,soybean,cotton seed,sunflower seed,groundnut,vegetable seeds,olive, walnut.
Cold pressing:The user can also directly press the well cleaned raw material.
Hot pressing:In order to realize hot pressing, the screw oil press can cooperate with stack cooker,
seeds roaster, bulking machine.
Raw materials of oil machine
Operating principle of oil machine
1.When oil press is on work, material enters the extruding chamber from the hopper and then moves
forwards by the rotating pressing screw and is pressed.
2.Under hightemperature condition in the chamber, there is quite strong friction among press screw,
chamber and the oil materials.
3.On the other hand, root diameter of the pressing screw carries larger from one end to the other.
4.Hence when rotating, the thread not only pushes particles moving forwards but also turns them
outwards as well.
5.Meanwhile, particles adjacent the screw will rotate along with screw’s rotating, causing every particle
inside the chamber to possess different speed.
6.Therefore, relative movement among particles creates neat which is necessary during manufacturing
because of helping protein change property, damage colloid, increase plasticity, decrease oil’s elasticity, resulting in high oil.
raped by the oiled paper or kraft paper, to prevent from rusting.
Technical parameters of oil machine
Model |
D-1685 |
D-1688 |
D-125 |
D-150 |
|
Power(kw) |
Main Machine |
Y112M-6 5.5 |
Y132M-6 7.5 |
Y160M-4 11 |
Y160S-4 15 |
Heater |
3 |
3.5 |
4 |
Y801-41.1 |
|
Vacuum Pump |
0.55 |
0.75 |
0.75 |
4 |
|
Weight(kg) |
830 |
1100 |
1500 |
1950 |
|
Size(mm) |
1650*1440 *1700 |
1960*1630 *1900 |
2100*1680 *1900 |
2380*1850 *2000 |
|
Screw Speed(r/min) |
63 |
43 |
36 |
33-42 |
|
Capacity(kg/h) |
80-150 |
150-250 |
250-350 |
300-450 |
|
Screw Diameter(mm) |
80 |
100 |
125 |
150 |
|
1. Q: Are you a trading company or a manufacturer?
A: We are a manufacturer, which has almost 30 years of experience in this industry.
2. Q: How can I get to your company?
A: You can get a flight to Zhengzhou Xinzheng International Airport , we can go to airport to pick you
up directly.All our clients from home or abroad, are warmly welcome to visit our factory and inspect
our products!
3.Q:What's your raw material of your oil machine?
A:Oil machine is widely used to press seeds such as farming seeds,pumpkin seeds,
beans,sesame,soybean,cotton seed,sunflower seed,groundnut,vegetable seeds,olive, walnut.
Gongyi Jinlong Hengji Heavy Machinery Co. Ltd. is a professional production of large and medium
crushing, grinding, sand making equipment , pelletizing machine equipment research, production,
marketing trinity of the private sector. Company headquarters is located in a blend of traditional and
innovative mechanical Gongyi City Industrial Development Zone , over the years , the company adhering
to the scientific management of modern enterprises , precision manufacturing , forge ahead , innovation,
rapid rise to become the leader in equipment manufacturing deserved.
If you have interest,please contact us with no hesitate.
We are sure any of your inquiry will get our prompt reply.
