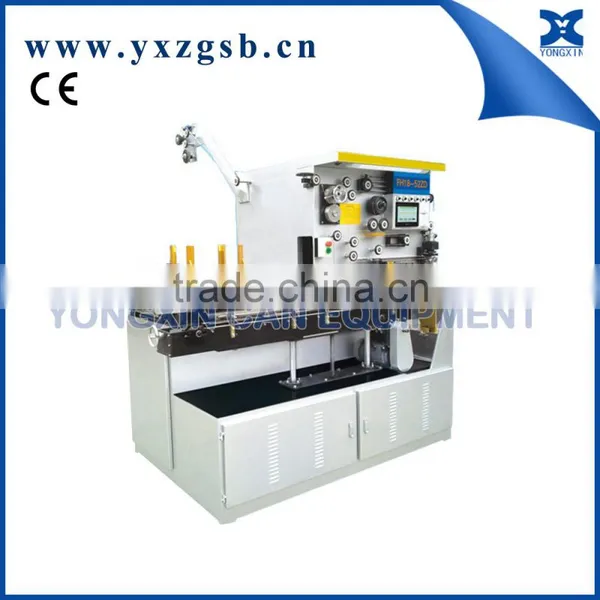

FH18-52ZD metal food tin can welder machine
Specification
Model type | FH18-65ZD |
Linear rate of welding | 6-26m/min |
Production capability | 40~100Cans/min |
Applicable can diameter | Φ65~Φ180mm |
Applicable can height | 60~280mm |
Applicable material | Tinplate steel-based |
Applicable material thickness | 0.2~0.35mm |
Seam welding landing | 0.4mm 0.6mm |
Seam point distance | 0.5-0.8mm |
Applicable copper wire diameter | Φ 1.38mm Φ 1.5mm |
Cooling water | Temperature:15-20°CPressure:0.4~0.5Mpa Discharge:10L/min |
Compressed air consumption | 600 L/min |
Pressure of compressed air | 0.5Mpa-0.7Mpa |
Power | 380V±5% 50HZ |
Total power | 40KVA |
Dimension | 1750×1100×1800mm |
Weight | 1800Kg |
1. PLC(Programmable Logic Controller) is purchased from Japanese MITSUBISHI.
2. Low voltage apparatus are produced by SCHNEIDER.
3. IGBT(Insulated Gate Bipolar Transistor) is bought from Japanese FUJI.
4. OMRON is our sensor supplier.
5. HMI(Human Machine Interface) is purchased from WEINTEC Labs.,Inc in Taiwan.
