Twist off Cap Production Line/ Automatic Tin Cap Making Machine/Vacuum Capping Sealing Machine

FOB Price

US$ 2,000 - 12,500 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Automatic Grade	Automatic
Place of Origin	Jiangxi, China
Brand Name	YONGXIN	Model Number	GT120B
Voltage	380 V	Power(W)	10 KW
Dimension(LWH)	3200x6500x1200mm	Weight	4000 KG, 2700kg(oven)
Certification	CE	Warranty	One year, 1 year
After-sales Service Provided	Engineers available to service machinery overseas

Specification&Features

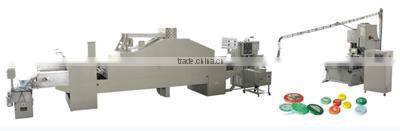

Automatic Twist Off Cap Making Line
	Production capacity	120pcs/min
	Diameter range	30-82mm

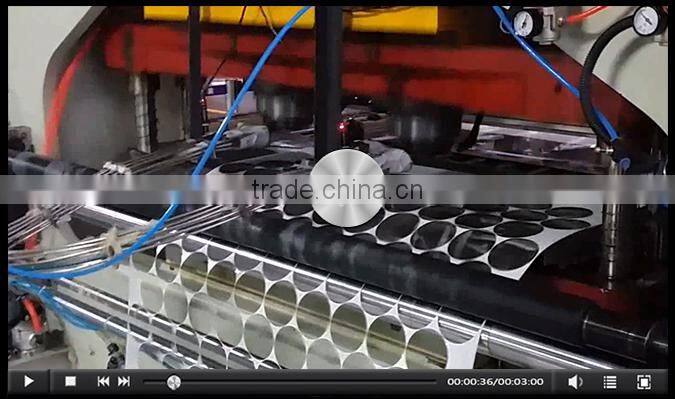

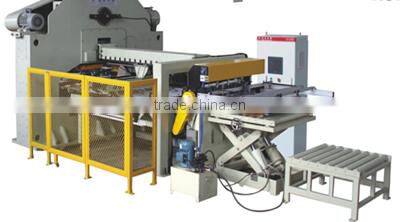

GT2TA10 Automatic sheets feeding system with 25 ton press machine
	25T press machine	120 punch/min with single manipulator
	Max tinplate size	1050*1050mm
	Max weight of tinplate	2.5 ton
	With hydraulic lifter for sheets
	With automatic oiling rolling feeding system
	With double sheets checking sensor
	With panasonic CNC 3 AXIS servomotors system
	With panosonic control system
	With electrical system of Schneider

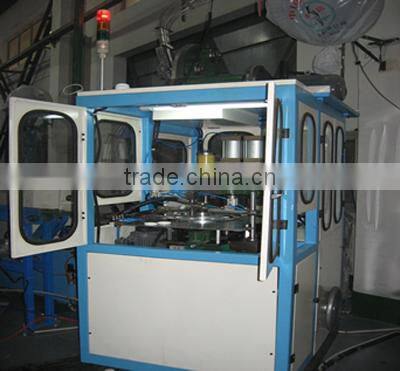

Lining and mouding machine
	Actual capacity	200 pcs/min
	Power consumption	25kw
	Air supplier	About 5.5 bar
	Running mode	multi-station continuously
	Ling model	Lining model
	Weight	2500kg
	Dimension	15009502500mm
	With PLC control, speed of 180-200 caps per min.
	With panasonic frequency invert. Working automatically.
	SMC pneumatic components. With automatic clamp detecting, caps detecting, caps out detecting and doube cap detecting.
GT-2P15 twist off cap ling and moulding forming machine is used for precurling, curling, lug forming and lining the cap. With four function into one machines. After that, the cap goes to drying machine for drying.

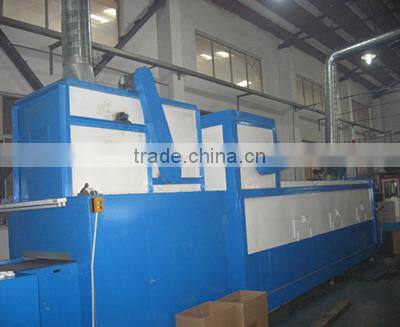

Can lid drying machine
	Capacity	200 pcs/min
	Speed adjustment	Line speed 0.9-1.6m/min. Or frequency 10-60 Hz
	Max height	963mm
	Max motor power	58.2KW, 50Hz/380V
	Motor power	5 KW,50Hz/380V
	Dimension	630014402200mm
	Weight	2700kg
This machine is used for drying the compound of the cap which came out from the lining and moulding forming machine.

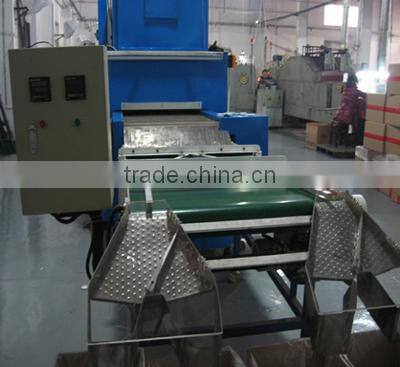

Counting machine
	Cap diameter	30-150 mm
	Speed	25m/min
	Width of conveyor	300mm
	Height of working table	800mm
	Speed	max 700pcs per min
	Motor power	0.25 KW, 1390/145rpm, 50Hz/380V
	Air compressor	1.6Mpa
	Weight	80kg
	Dimension	17505001120mm
This machine is mainly used for counting the caps after came out from drying machine.

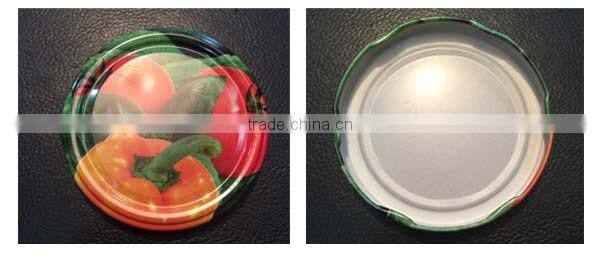

Sample lids
