Metal Can Lid Making Machine

Metal Can Lid Making Machine thumbnail-1
Metal Can Lid Making Machine photo-1
US$ 10,000 - 20,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Beverage, Chemical, Food
Packaging Type:
Case
Contact Supplier Request Quote Chat Now
Jiujiang Yongxin Can Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Application Beverage, Chemical, Food
Packaging Type Case
Packaging Material Wood
Automatic Grade Automatic
Driven Type Electric
Voltage 380V
Power 30KW
Place of Origin Jiangxi, China
Brand Name Yongxin
Model Number GT-JY
Weight 3180kg
Dimension(L*W*H) 1600*1180*2310mm
Certification CE
After-sales Service Provided Engineers available to service machinery overseas

Quick Details

  • Type: Other
  • Condition: New
  • Application: Food, Beverage, Chemical
  • Packaging Type: Case
  • Packaging Material: Wood
  • Automatic Grade: Automatic
  • Driven Type: Electric
  • Voltage: 380V
  • Power: 30KW
  • Place of Origin: Jiangxi, China (Mainland)
  • Brand Name: YONGXIN
  • Model Number: GT-JY
  • Certification: CE
  • After-sales Service Provided: Engineers available to service machinery overseas
  • finished production: can lid/cover/bottom .

Packaging & Delivery

Packaging Details: plywood case
Delivery Detail: within 30days upon deposit

Specifications

tin can lid/cover/bottom/end making line
easy open cover
many shapes
14 years experience,
high quality,competitive price

 Name:  Best seller square tin press machine
Main parameters of Best seller round lid making machine for punch
Nominal force 400KN
Nominal stroke 6mm
Slide stroke 120mm
SPM 55/min
Max die height 220mm
Die height adjustment 80mm
Between slide center and frame 260mm
Bolster size 480*710mm
Bolster opening Φ220*25* Φ 180mm
Bolster thickness 80mm
Bed opening Φ200*150*300mm
Slide area 270*320mm
Shank hole Φ50*70mm
Max.inclined angle 25°
Between colums 300mm
Main motor power 4KW
Outline dimension 1600*1180*2310mm
Net weight 3180kg



Main feature of Best seller round lid making machine for punch
Advantage:

1.Horizonal crankshaft

2.Rigid rotated key dutch

3.Manual die height adjustment with scale display.

4.Control by PLC with international brand.

Main usage of Best seller round lid making machine for punch



This machine is used to punch the tinplate can lid

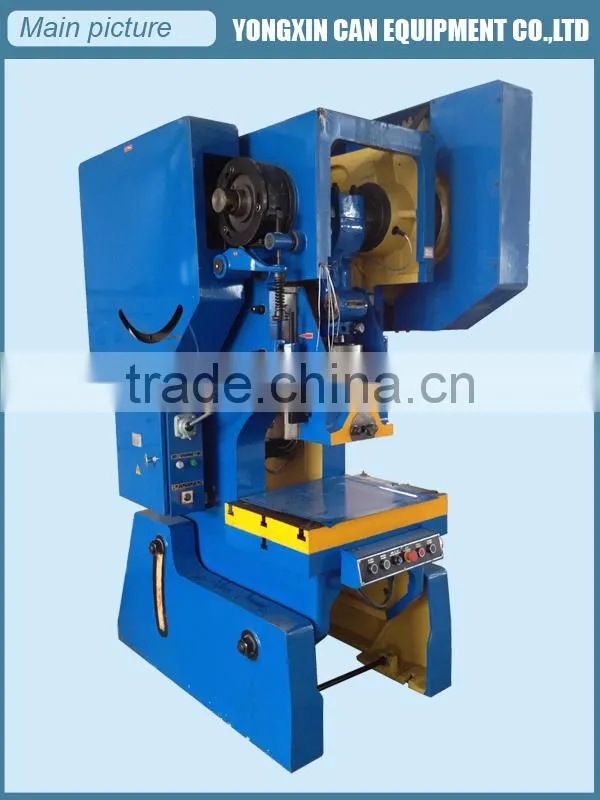

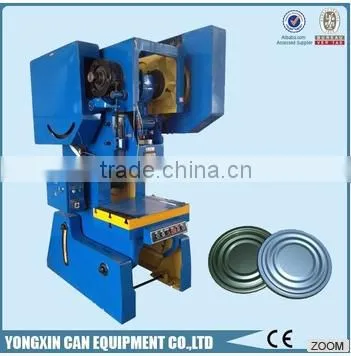

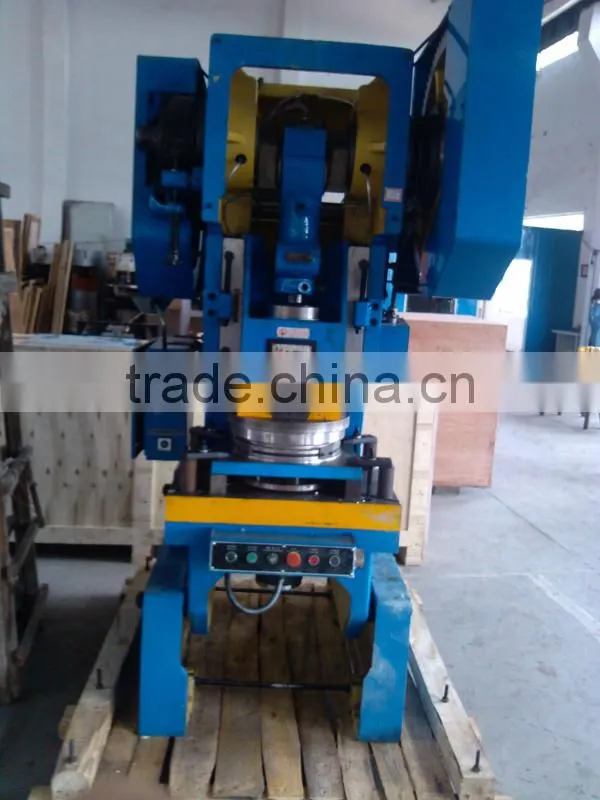

 Main pictures of Best seller round lid making machine for punch







 We also offer can lid production line



These punch machine  Export to many countries

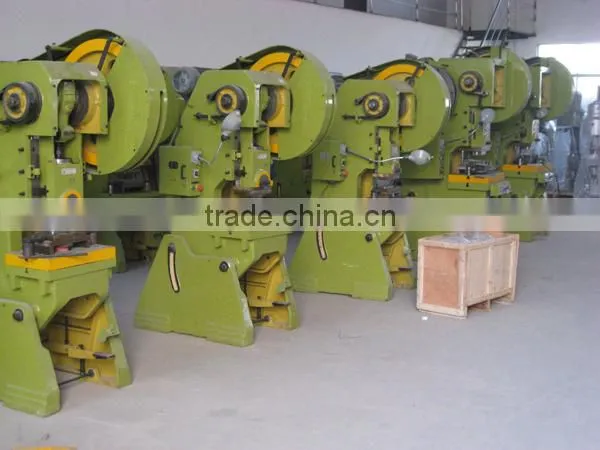

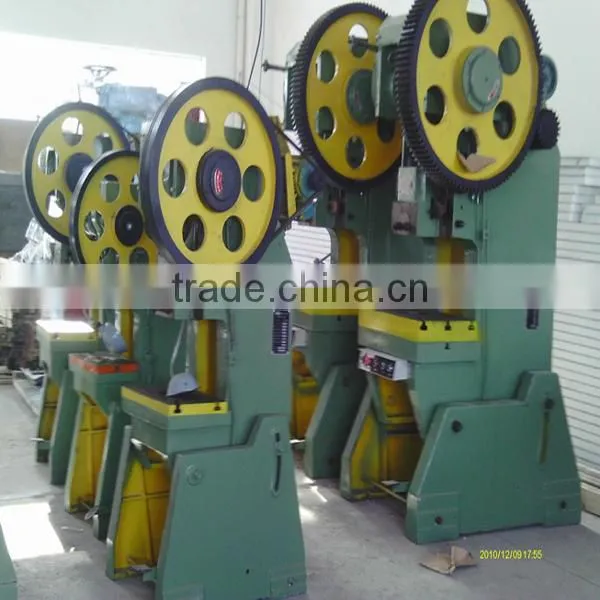

below picture show you the machines before packing in our factory

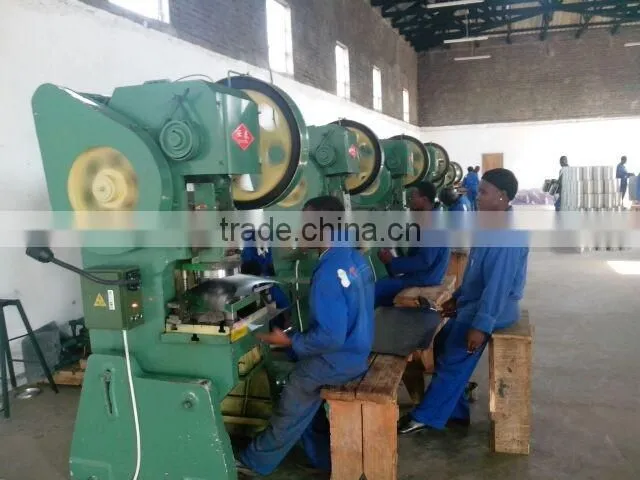

Picture of our customer were using the machine to making tin  can lid.







Packaging & Shipping





Company Information







Our Services



FAQ

FAQ

Q:Why choose us?

A:Cause we have leading edge technology for giving the best machines for a wonderful can.

Q:Does our machines available for Ex works and easy to export?



A:That’s a big convenience for buyer to come to our factory to get machines cause our products all don’t need

commodity  inspection certificate and it will be easy for export.



Q:Is there any spare parts for free?



A:Yes! We can supply free quick-wear parts for 1 year,just rest assure to use our machines and themselves are

very durable.



Q:How can the price be most reasonable?



A:We handle the price to a reasonable level and it can be adjust according to customer's needs.Then, the price will

 eventually based on request.



Q:What if I want to see the production process?



A:That's not a problem,we have many video from our customer's company.If you want to see it right front you,we will

contact our customer over the world and let be there to have the visit.



Q:Is it possible send engineer overseas to fix the machines?



A:Of course yes! This will be our after-sales service.





If you want to know more information about this machine,Please contact us!
