Automatic 1 Liter Round Paint Can Making Machine for Production Line
US$ 4,500 - 5,500
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Chemical, Food, Medical, Other, Chemical, Food, Medical, seeds
Packaging Type:
Case
Payment & Shipping
Payment Methods:
Port of Shipment:
Shang Hai or Jiu Jiang
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Quality Automatic 1 Liter Round Paint Can MachineUS$ 5,000 - 6,000MOQ: 1 Set -
Automatic 1 Gallon Paint Can Making MachineryUS$ 1 - 30,000MOQ: 1 Set
-
Automatic 1 Gallon Paint Can MachineUS$ 5,000 - 6,000MOQ: 1 Set
-
Hot Selling Automatic 0.2-5l Round Can Welding MachineUS$ 3,500 - 6,000MOQ: 1 Set
-
The Hotest Selling 1-5l Round Tinplate Can EquipmentUS$ 4,500 - 5,500MOQ: 1 Set
Condition
New
Application
Chemical, Food, Medical, Other, Chemical, Food, Medical, seeds
Packaging Type
Case
Packaging Material
Wood
Automatic Grade
Semi-Automatic
Driven Type
Pneumatic
Voltage
380AV
Power
1.1KW
Place of Origin
Jiangxi, China
Brand Name
Yong Xin
Model Number
GT4A6YQ
Dimension(L*W*H)
720*520*1760
Weight
450KG
Certification
CE
After-sales Service Provided
Engineers available to service machinery overseas

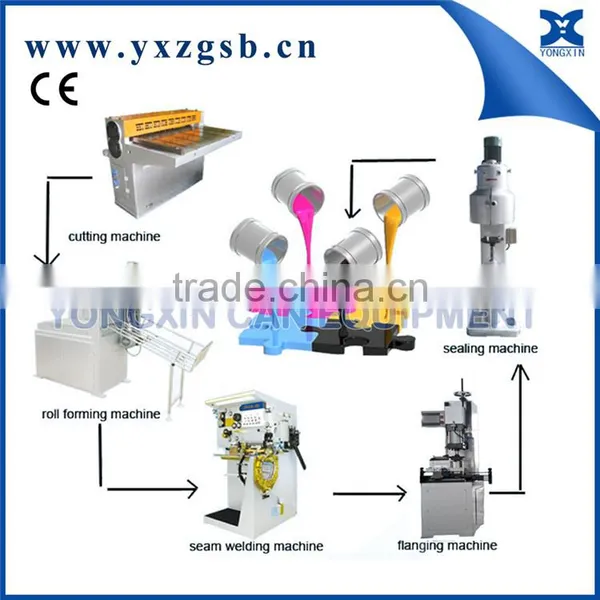

Automatic 1 liter round paint can making machine for Production Line
| Specification of rolling machine | |
| Model | ZDJY45-450 |
| Diameter range | Φ100-Φ300mm |
| Thickness | 0.25-0.35mm |
| Max width | 400mm |
| Capacity | 30cpm |
| Net weight | 450kg |
| Dimension | 1300*730*1330mm |
| Specification of welding machine | |
| Linear rate of welding | 6-18m/min |
| Production capability | 20~80Cans/min |
| Applicable can diameter | ø65~ø286mm |
| Applicable can height | 70~420mm |
| Applicable material | Tinplate steel-based Temper:T2.5-DR8 |
| Applicable material thickness | 0.18~0.42mm |
| Seam welding landing | 0.4mm 0.6mm 0.8mm 1.2mm |
| Seam point distance | 0.5~0.8mm |
| Applicable copper wire diameter | ø 1.38mm ø 1.5mm |
| Cooling water | Temperature:12-18°C Pressure:0.4~05Mpa Discharge:7L/min |
| Power | 380V±5% 50HZ |
| Total power | 18KVA |
| Dimension | 1200×1100×1800mm |
| Weight | 1200Kg |
| Specification of forming machine | |
Scope of application |
big square containers of 9-20L(need change mold) |
Maximum oil pressure |
12Mpa |
Adaptive material thickness |
0.2-0.4mm |
Working air Pressure |
0.3Mpa |
Capacity |
10-15 cans per minute |
Volume of oil tank |
130L |
Power of motor |
7.5kw |
Outline size |
1400*720*1200mm |
Applied electric source |
AC380V 50HZ |
Overall Weight |
900kg |
| Specification of flanging machine | |
Model |
GT3FB3/3FB4J |
Applicative range |
1L-18L |
Capacity |
30cans/min |
Power |
0.75kw |
Net Weight |
350kg |
Dimension |
680*1020*800mm |
| Specification of sealing machine | |
Model |
GT4A19F |
Capacity |
10-17cans/min |
Applicative range |
2-18L square or irregular Can |
Net weight |
750kgs |
Power |
2.2kw |
Dimension |
1070x720x2050mm |
