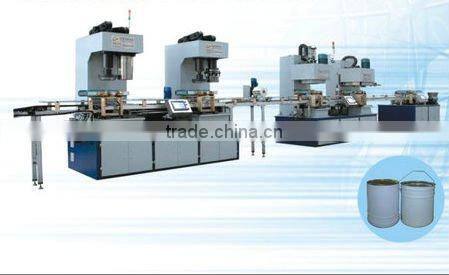

Fully Automatic 18liter Paint Tin Can Making Machine Production Line

Specifications

Automatic Conical Can making machine
Can height: 290-400mm
Capacity: 20-25cmp
Power: 30kw
Total weight:13T



Specification for 10-20L Automatic Conical Can Making Production Line





can height:	290-400mm
inner  diameter of top/bottom :	285-286mm/272mm
material of tinplate length range:	856-860mm
material of tinplate thickness range:	0.34-0.45mm
power:	30 KW
voltage:	380 V
air pressure:	0.5-0.7mpa
total size:	22000*1380*2600mm
total weight:	13T
efficiency:	20-25 pcs/min



Automatic 18L Conical Can Production Line







Processes

Standing and transmitting can ---- Expanding can top edge for curling  ----Stretching round can into conical ---Curling can top edge ---Expanding convex imprints on can--- Turning can over ---- Flanging can bottom edge---Putting can bottom covers one by one / Sealing can bottom---- Positioning can---Welding can ears



Advantages

1.Adopting rotation flanging which can adjust the flanging and necking sizes achieves multifunction

2.Achieving 5 layers and 7 layers can bottom curling and sealing with unique 9 wheels can-sealing technology that can improve the efficiency of production and leaktightness of can bottom

3.Adopting the structure of inner stretch core makes the can difficult to be deformed that can decrease the material's requirements

4.Using servomotor to control the discontinuous running decreases the consumption of electricity

5.Decreasing the maintainability of the machine sealing part’s heads without clutch which can prolong the lifetime of the machine sealing part’s heads

6.Decreasing the cost of labors and working injury accidents as the full automatic production line only needs 1-2 workers

Applied industry: paint tin can packing,oil can packing,chemical can packing, food can packing, and so on









Company introduction:



Jiujiang Yongxin Can Equipment Co., Ltd. is an oiginal manufacturer in tin can machine industry for 14 years..

We supply various tin can machines and complete production lines. Our main product: 0.2-5L can making line, 1-4L rectangle can making line,10-20L cone pail making line, 10-20L cylinder pail making line,18L square can line.Welcome to contact us and visit our factory!



Deliver time:2 5 days.

Warranty:One year! If there is any quality problem with our machine during the warranty period, we will offer free parts for customer for fix the machine.

After-sale Service:

a.Technical support online service provided.   b.Technical files service provided.

c.On-site training service provided.       d.Spare parts replacement and repair service provided.
