Specifications for Original Manufacturer for Automatic paint can welding welder machine .

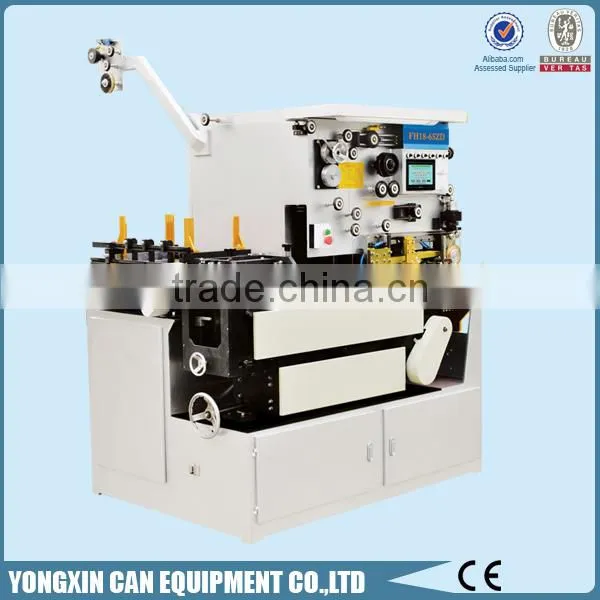

Name: FH18-65ZD Food or chemical automatic can seam welding machine
Linear rate of welding |
6-26m/min |
Production capability |
40~100Cans/min |
Applicable can diameter |
Φ65~Φ180mm |
Applicable can height |
60~280mm |
Applicable material |
Tinplate steel-based |
Applicable material thickness |
0.2~0.35mm |
Seam welding landing |
0.4mm 0.6mm |
Seam point distance |
0.5-0.8mm |
Applicable copper wire diameter |
Φ 1.38mm Φ 1.5mm |
Cooling water |
Temperature:15-20°CPressure:0.4~0.5Mpa Discharge:10L/min |
Compressed air consumption |
600 L/min |
Pressure of compressed air |
0.5Mpa-0.7Mpa |
Power |
380V±5% 50HZ |
Total power |
40KVA |
Dimension |
1750×1100×1800mm |
Weight |
1800Kg |
Our major component suppliers ( Food or chemical automatic can seam welding machine)
1, PLC(Programmable Logic Controller) is purchased from Japanese MITSUBISHI.
2, Low voltage apparatus are produced by SCHNEIDER.
3, IGBT(Insulated Gate Bipolar Transistor) is bought from Japanese FUJI.
4,OMRON is our sensor supplier.
5, HMI(Human Machine Interface) is purchased from WEINTEC Labs.,Inc in Taiwan.
This welding machine can be used for food cans, beverage can or chemical cans automatic welding
Delivery time: 60 days
Package: plywood case
Shipping by sea
FAQ
Q:Why choose us?
A:Cause we have leading edge technology for giving the best machines for a wonderful can.
Q:Does our machines available for Ex works and easy to export?
A:That’s a big convenience for buyer to come to our factory to get machines cause our products all don’t need
commodity inspection certificate and it will be easy for export.
Q:Is there any spare parts for free?
A:Yes! We can supply free quick-wear parts for 1 year,just rest assure to use our machines and themselves are
very durable.
Q:How can the price be most reasonable?
A:We handle the price to a reasonable level and it can be adjust according to customer's needs.Then, the price will
eventually based on request.
Q:What if I want to see the production process?
A:That's not a problem,we have many video from our customer's company.If you want to see it right front you,we will
contact our customer over the world and let be there to have the visit.
Q:Is it possible send engineer overseas to fix the machines?
A:Of course yes! This will be our after-sales service.
If you want to know more information about this machine,Please contact us!
