Newest Rotary Evaporator With Pump

Newest Rotary Evaporator With Pump

Function introduction:

The rotary evaporator is heated by water bath(oil bath) to form thin film under the negative pressure condition, evaporate highly, then condense and recycle the solvent simultaneously. The apparatus are particularly suitable for the heat-sensitivity material’s condensation, crystallization, separation, recovery and so on. And reflux extraction can be avaliable for parts evaporator models. It is one of the necessary basic instruments in the chemical industry, pharmaceutical industry, universities and research laboratories and other units etc., while it is also the main means for producing concentrated extracts and analysis experiments.

Specifications:

(1)High performance dual agency tube condenser configuration, ensure high recovery rate.

(2) Collection bottle notch is equipped with hydraulic valves, solvent recovery very fast.

(3) Rotating body move up and down movements with screw lifting mechanism.

(4)The evaporator may incline willfully along the horizontal direction in 0-45° the scope.

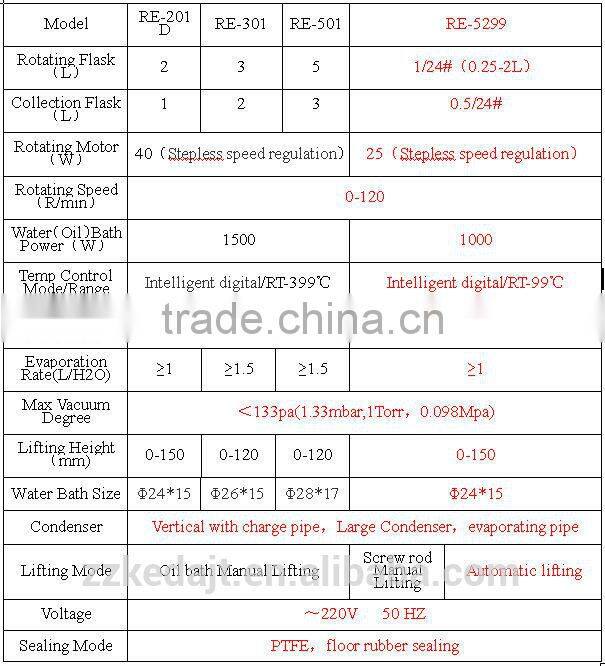

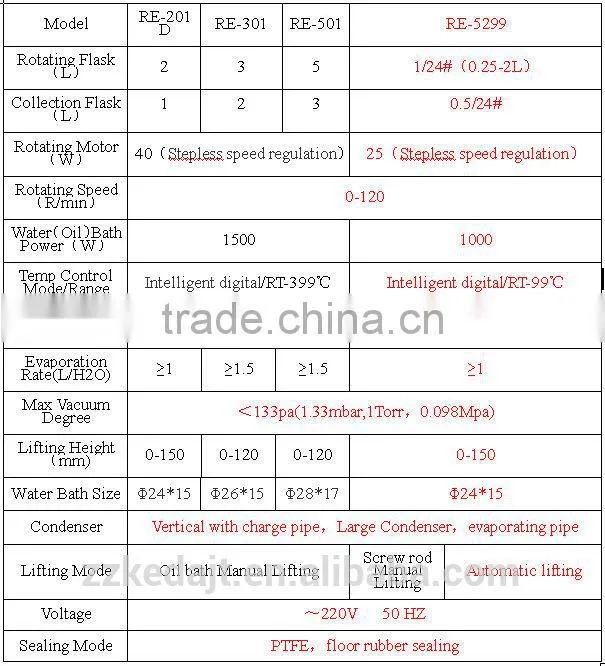

Technical data:
