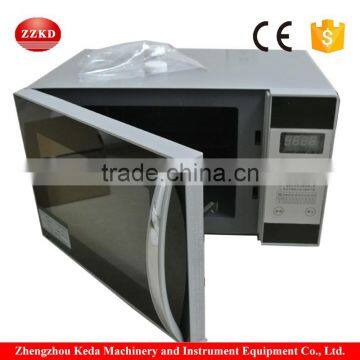

2017 Lab Microwave Chemical Reactor
Description
Microwave chemical reactor adopts microcomputer technology and unique technology of microwave adjustment, making microwave power continuous and adjustable, easy to operate and good repeatability. It plays a scientific and practical role in experiments that require microwave-assisted catalytic reaction conditions, especially in those who require a smaller microwave power and who wish to maintain continuous microwave radiation.
Technical data
Model | Rated power consumption (W) | Rated maximum output power(W) | Maximum input current (A) | Operating voltage(V) | Operating voltage (MHZ) | Cavity size(mm) | Packing size (mm) | G.W. (Kg) |
WBFY-201 | 1100 | 750 | 7.8 | 220 | 2450±50 | 330*365*235 | 480*540*540 | 20 |
WBFY-205 | 650 | Adjustable size | 290*295*190 | 610*480*550 | 35 |
Characteristics
1.The full power output of the device can be 650W.
2. This device can be set to 10 power levels. The microwave reactor obtain 10% -100% power through different on-off time (duty cycle).
3.Selecting the same power and working time, you can get the same reaction conditions. The experiment has satisfactory repeatability.
4.Applicable to install a reflux apparatus, while ensuring no leakage of microwave’s ended waveguide.
Working principle
♦ Microwave is a kind of high-frequency electromagnetic wave which does not generate heat. Because the microwave in nature is dispersed and not focused, it can not be used as an energy source. While using magnetron can turn electric energy to microwave.
♦ Microwave generated by the magnetron in this device can penetrate medium via oscillation frequency of DPS 2450MHz. When the medium has a suitable dielectric constant and dielectric dissipation, it will vibrate at high-frequency speed in the microwave field. Thus energy is accumulated in the medium. In terms of chemical reaction, it can produce thermal effects and non-thermal effects at the same time.
♦ Microwave can be absorbed by polar medium and metal powder. It can penetrate the non-polar materials such as glass, ceramics, PTFE material etc. But it will be reflected on the metal surface. Typically, the output power of the magnetron is basically the same. Adjusting power can be achieved by changing the current on / off time (duty cycle). Microcomputer control, easier and more accurate operation. The repeated chemical reaction condition can be obtained if you choose the same working state.
Product details
Packaging
-After use cartons inside, outside with wooden case packaging;
-Both neutral and customized packaging can be available.
Shipping
-We can ship the goods to you by International Express such as DHL, TNT, EMS, FedEX and so on and you can also choose the appropriate one based on your timeline and budget. Besides, you can definitely choose to use your own shipping agent.
Service promise
1. Products quality guarantee is for one year, after the product was sold.
2. In the warranty period, the users operate according to instruction but meet problems, our company will maintain free of charge.
3. Beyond the warranty period, products problems can also be solved by my company maintenance, but charge wiring components fees properly.
Technology service
1. We have a mobile repair service team in our company, to carry out maintenance, consulting services in china for many years.
2. Users encounter problems when using our products, please contact us by telephone or email, we will be ready to provide consulting, maintenance and other services immediately.
zhengzhou keda Machinery and Instrument Equipment Co., Ltd, established in 1981, is a famous manufacturer of Lab equipment located in the central china. We specialized in rotary evaporator, jacketed glass reactor, single layer glass reactor, circulating water vacuum pump, low temperature reaction bath (slot), cooling chiller, vacuum drying oven, blast drying oven, high-pressure reaction kettle, freeze dryer(lyophilizer), water/oil bath, microwave chemical reactor,
magnetic heating stirrer, hydrothermal synthesis reactor, heating mantle, lift jack and so on.
Present, we have become a pacesetter of the lab instrument in China. Our products have been exported to the countries such as the UK, Greece, Poland, US, Australia, Brazil, South Africa, Ghana, Egypt, Iran, Pakistan, Thailand, India, Singapore, Malaysia and so on. Our products are also earning wide recognition among our users.
Though our foreign trade is not for long, we do have a history of more than 30 years for domestic trade. To assure the good quality & good service is our consistent aim.
1. What's the minimum order quantity?
One set at present.
2. What kind of payment term do you accept?
Normally we accept TT, Paypal, Western Union, Alibaba Escrow, and L/C. The exactly term with be discussed during the deal.
3. How will you delivery these goods?
It will be decided according to your quantity. Normally we will choose International Express, Air and sea.
4. How will package glass equipment?
We package these glass equipment in good and non fumigation standard plywood.
5. Can you accept OEM terms?
Sure.
