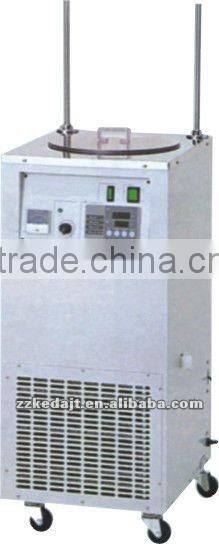

Innovative Low -temperature Constant-temperature Stirring Reaction Bath
- 300 Set / Sets per Month
- TianjinShanghai Dalian
- T/T Credit Card
- Lab Jacketed Glass Reactor 10 Liter Chemical Reactor for Research
- Mini Lab Jacketed Glass Reactor High Borosilicate Reaction Vessel
- Customized Industrial Chemical Reaction Jacketed Glass Reactor
- GG-17 Jacketed Glass Reactor Heating and Cooling Circulator Mixer Reactor
- 1-5L Single Layer Pyrex Borosilicate Tank Stirred Heated Glass Reactor
- 10L Digital Extraction Synthesis Laboratory Single Glass Reactor
Product Details
Place of Origin: | Henan, China | Brand Name: | KD | Model Number: | DFY-40L |
Product Description
2012 Innovative Low -temperature Constant-temperature Stirring Reaction Bath
Function:
1.An innovate design according to Japan Tokyo physical and chemical equipment company at the similar products
2.It can have low temperature reactions instead of dry ice and liquid nitrogen and has quite high precision of temp control
3.Suitable for scientific research, biology, physics, medicine, chemical industry and other departments to do low temp experiments
Feature:
1.Compressor and Oil separator: both imported from Danish Danfoss original Equipment
2.Ternary compound cascade refrigeration
3 .high and low pressure control
4.The Refrigerant R50D , R13, R14
5.Self-develop and design controller ,the microcomputer controller ,owing delay protection function
6.Use the balance of heat to cold reactions, so that the temperature accuracy of ± 0.2 °C
7.Shell material : cold-rolled plate , electrostatic spray
Technical Parameter:
2012 Innovative | Bath volume(L) | Temp range(°C) | Temp stability(°C) | Refrigeration capacity | Flow(L/min) | Practical caliber(mm) |
DFY-40/20 | 40 | -20-98 | ±0.1 | 3729-989 | 30 | Φ360 |
DFY-40/30 | -30-98 | 4917-2468 | ||||
DFY-40/40 | -40-98 | 4917-2468 | ||||
DFY-40/80 | -80-RT | 3178-273 | ||||
DFY-40/120 | -120-RT | 3382-247 |
Service promise:
1.Product quality guarantee is for one year,after our Products the date sold.
2.Products in the quality guarantee period, the company responsible for free maintenance and replacement parts.
3.The user must have the product maintenance with products in product quality guarantee card, certification, and effective bill.If can not,the date, according to the factory of the date ,will be extended for three
months.
Products Specialty:

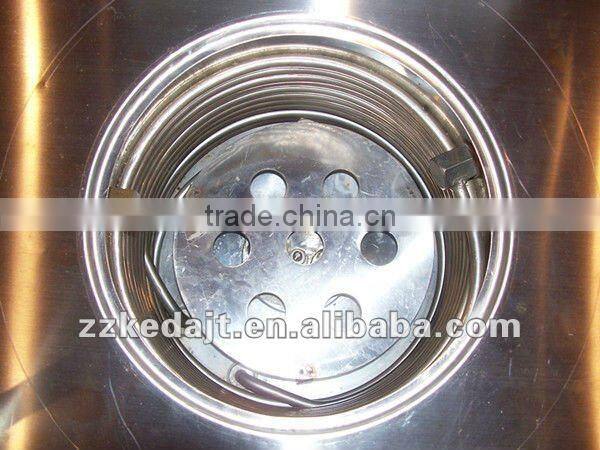

1.At the bottom of the installation of magnetic stirring , mixing in two segments , the temp in the stainless steel tank more evenly , temperature control accuracy
2.High and low pressure control
3.Use the balance of heat to cold reactions.
We have the confidence in providing the professional products that you want. Due to your demands, we will customize Low -temperature Constant-temperature Stirring Reaction Bath
in different models(5L,10L,20L,30L,40L,60L,80L,100L)!
For more details, please contact us as soon as possible.
