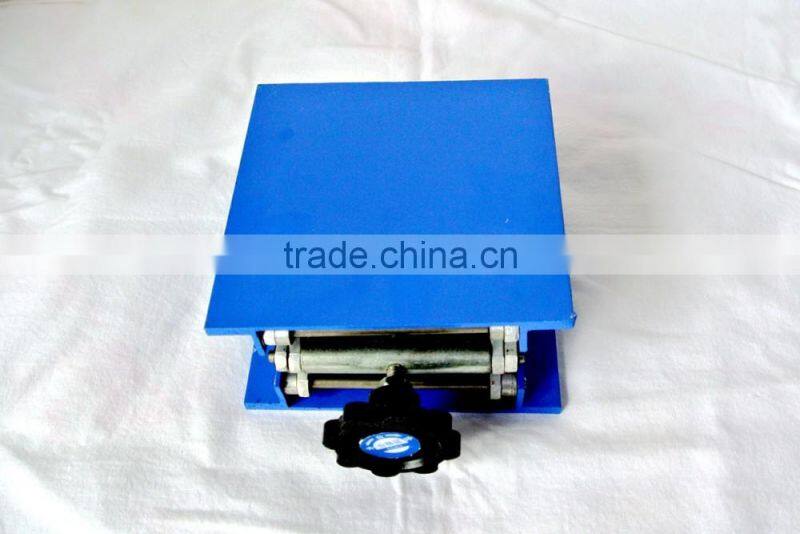

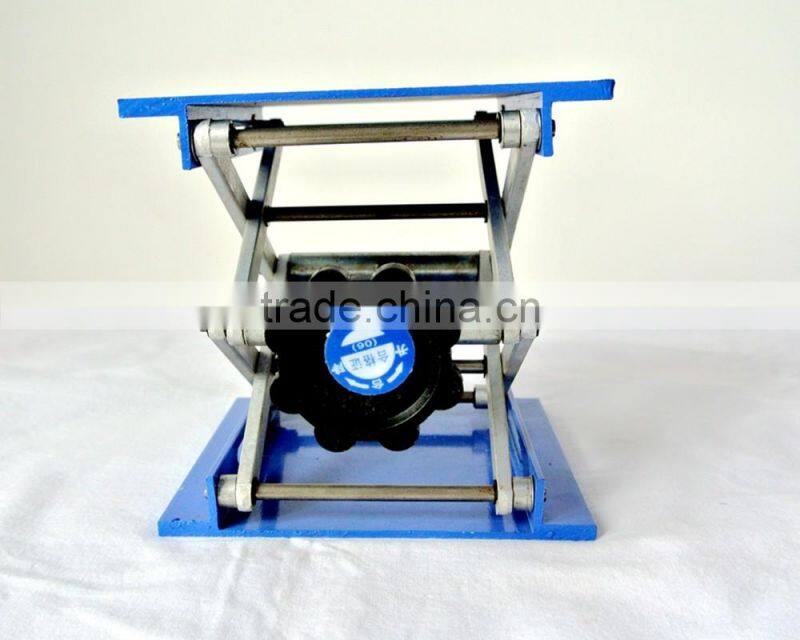

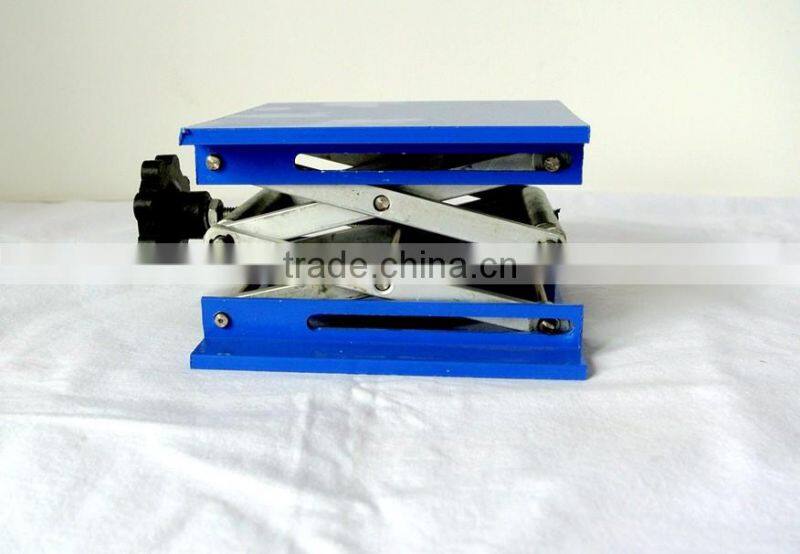

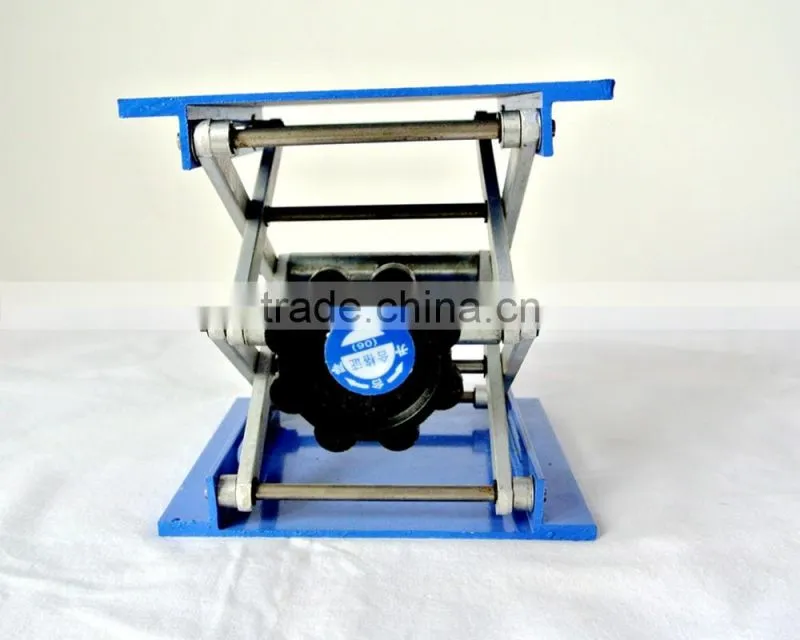

<KD> Portable Vertical Manual Lifting Table Equipment
1. Features
Stainless steel lifts, corrosionresistant, fast movements, divided into the stainless steel upper steel upper and lower lid and two kinds of stainless steel.
2. Pictures
3. Characteristics
Laboratory use lifting platform, all stainless steel lifting platform is a routine equipment laboratory, hinged design make the product with high stability and robustness.Mesa to square, strengthen the stainless steel
material, impact resistance and resistance to pollution, ground column is stainless steel material, color, good firmness, this product design is novel, sturdy and durable, is indispensable to lab.
4. Specifications
100*100mm, 150*150mm, 200*200mm, 250*250mm
5. Technical Data
Specification | Material | Net Weight(kg) | Max. Lifting Height(cm) | Rated Loading Capacity(kg) |
100*100mm | Stainless Steel | 1 | 20 | 3.5- 4 |
150*150mm | Aluminum | 1.3 |
28 |
4.5- 5 |
Stainless Steel | 1.5 | |||
200*200mm | Aluminum | 2 |
27.5 |
6.5- 7 |
Stainless Steel | 1.7 | |||
250*250mm | Aluminum | 2.5 |
24.5 |
10 |
Stainless Steel | 3 |
<1> 100*100mm
Minimum extension clear height: 41mm
Maximum extension clear height: 200mm
<2> 150*150mm
Minimum extension clear height: 54mm
Maximum extension clear height: 280mm
<3> 200*200mm
Minimum extension clear height: 68mm
Maximum extension clear height: 275mm
The recommended weight: 6.5- 7kg.
<4> 250*250mm
Minimum extension clear height: 70mm
Maximum extension clear height: 245mm
6. Note
We can customize a variety of sizes of products according to your needs.
7. Company Introduction
Zhengzhou Keda Machinery and Instrument Equipment Co., Ltd.
Our company always adheres to the "quality casting brand, professional achieves service" business philosophy, and the main product is rotary evaporator, jacketed glass reactor, single layer glass reactor, circulating water vacuum pump, low temperature reaction bath (slot), low temperature cooling fluid circulating pump(cool chiller), vacuum drying oven, blast drying oven, high-pressure reaction kettle, freeze dryer(lyophilizer), water/oil bath, magnetic heating stirrer, heating mantle, lift platform, etc. Besides, we act as agents of some domestic and foreign famous enterprise products, sustaining high prais in domestic junior colleges and universities, scientific research units, etc. Our products are sold to USA, Australia, Asia, Brazil, Iran, Egypt etc.
The quality of the products, also full affirmation and praise by our domestic and foreign customers.
