Home > Products > Hydrothermal Synthesis Reactor Series > 200ml Autoclave Hydrothermal Synthesis Reactor with PTFE Liner

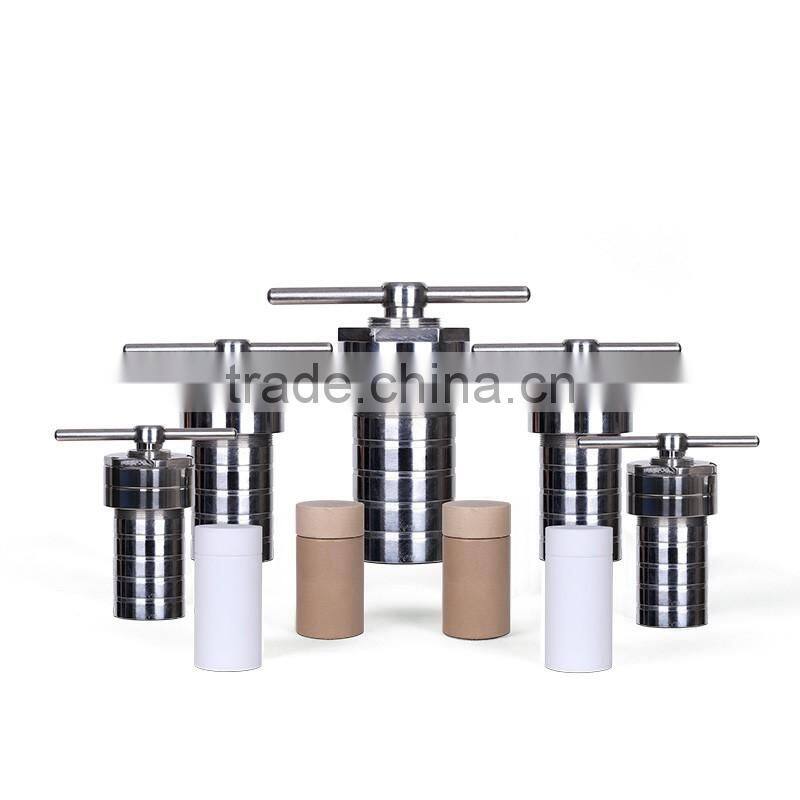

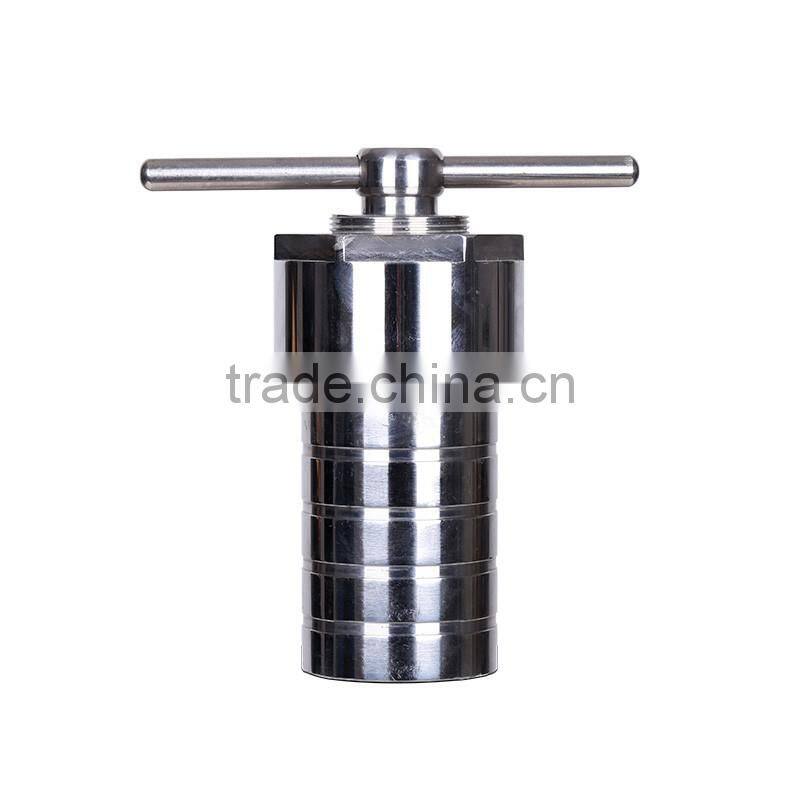

200ml Autoclave Hydrothermal Synthesis Reactor with PTFE Liner
- 1200 Set / Sets per Month
- Tianjin/Shanghai/Qingdao/Ningbo/Guangzhou
- T/T L/C D/P D/A Credit Card PayPal
- Mini Lab Jacketed Glass Reactor High Borosilicate Reaction Vessel
- Customized Industrial Chemical Reaction Jacketed Glass Reactor
- GG-17 Jacketed Glass Reactor Heating and Cooling Circulator Mixer Reactor
- 1-5L Single Layer Pyrex Borosilicate Tank Stirred Heated Glass Reactor
- 10L Digital Extraction Synthesis Laboratory Single Glass Reactor
- Industrial Chemical 10L Jacketed Glass Reactor Pilot Plant Reactor
Product Details
Condition: | New | Automatic Grade: | Manual | Type: | Reaction Kettle |
Place of Origin: | Henan, China | Brand Name: | ZZKD | Model Number: | KH-200 |
Voltage: | 220V/50HZ | Power(W): | . | Dimension(L*W*H): | . |
Weight: | 4kg | Certification: | ISO 9001 | Warranty: | One Year |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
200ml Autoclave Hydrothermal Synthesis Reactor with PTFE Liner
Brief introduction
Hydrothermal synthesis reactor is also called high pressure digestion tank, pressure dissolved shells which is finished by high quality stainless steel and PTFE. It with simple appearance, reasonable structure, while acid, alkali and corrosion are all resistance. Hydrothermal synthesis reactor is achieve the goal of rapid digestion of insoluble material by strong acid or alkali and high temperature and high pressure sealed environment in the tank. It is the right hand in sample digestion when it determined the trace elements and trace elements.
Use and precautions
1. The heating should not exceed 200 ℃, heating rate ≤ 55 ℃ min, PID temperature control system can be used to control the temperature, cooling rate ≤ 5 ℃ min, safety pressure is 3 Mpa.
2. When you completed the reaction, please open the kettle cover until the kettle natural cooling to the room temperature.
3. The degree of filling in kettle should no more than 80%.
Note: When heated to 100 degrees, please keep for 1 hour and then heated to the desired temperature, to ensure the longevity and safety of the equipment.
Technical data
Hydrothermal Synthesis Reactor | ||||||||||||
Model | KH-15 | KH-25 | KH-30 | KH-50 | KH-100 | KH-150 | KH-200 | KH-250 | KH-300 | KH-400 | KH-500 | KH-1000 |
Material | Kettle body is stainless steel and the liner is PTFE | |||||||||||
Capacity(ml) | 15 | 25 | 30 | 50 | 100 | 150 | 200 | 250 | 300 | 400 | 500 | 1000 |
Remarks | Safe temperature is 200℃. Max. Pressure is 3 Mpa |
Liner temperature | ||
Lining color | Safe temperature (℃) | Max.temperature (℃) |
White | 220 | 240 |
gray | 260 | 280 |
Black | 280 | 300 |
Product details
Service promise
1. Products quality guarantee is for one year, after the product was sold.
2. In the warranty period, the users operate according to instruction but meet problems, our company will maintain free of charge.
3. Beyond the warranty period, products problems can also be solved by my company maintenance, but charge wiring components fees properly.
Technology service
1. We have a mobile repair service team in our company, to carry out maintenance, consulting services in China for many years.
2. Users encounter problems when using our products, please contact us by telephone or email, we will be ready to provide consulting, maintenance and other services immediately.
1. What’s the material of the shell?
Usually 304 stainless steel
316 stainless steel is available.
2. What’s the delivery time?
In stock for normal models.
3. How many kinds of your reactor?
Max 240 degree C liner and Max 280 degree C liner.
4. Note
When heated to 100 degrees, hold for 1 hour and then heated to the required temperature to make sure the long life and safe use.
