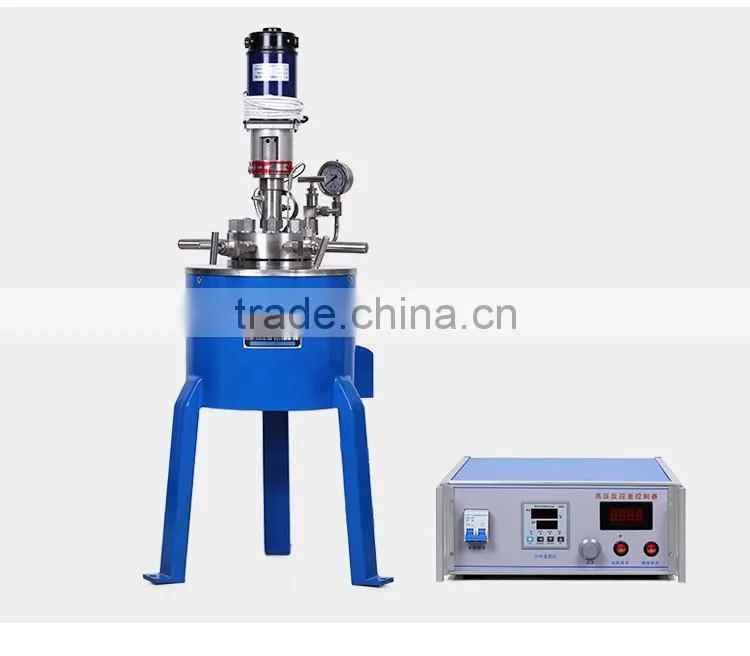

High Pressure Vessel
Features and application
CJF series high pressure vessel is gas-liquid, liquid-liquid, liquid-solid or gas-liquid-solid three-phase chemical material for chemical reaction stirring device. It can make all kinds of chemical material sufficiency stirred at high pressure, vacuum, temperature to strengthen the mass transfer and heat transfer processes.
Product details

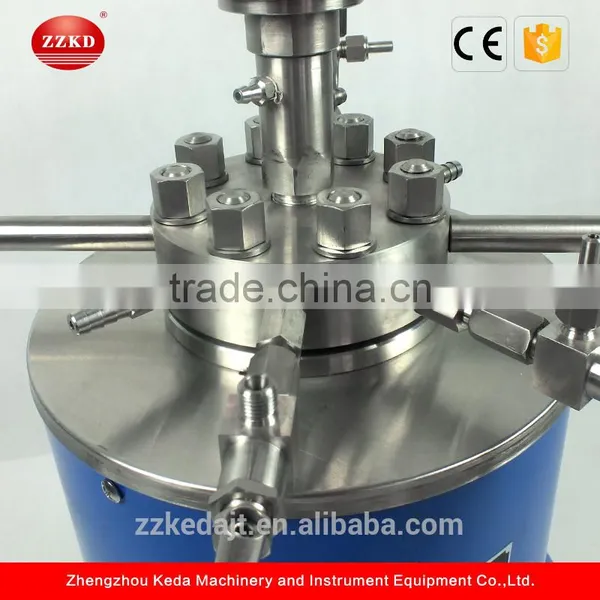

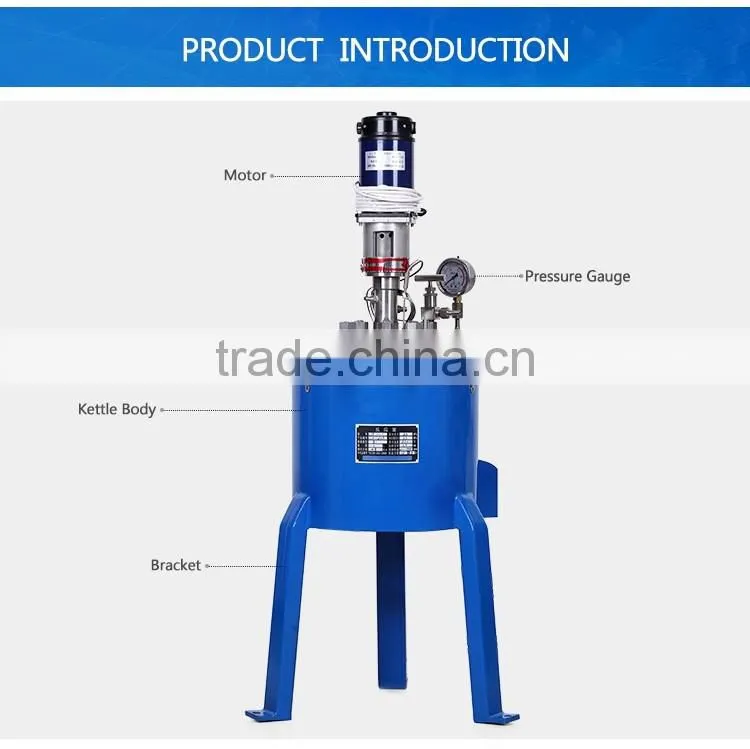

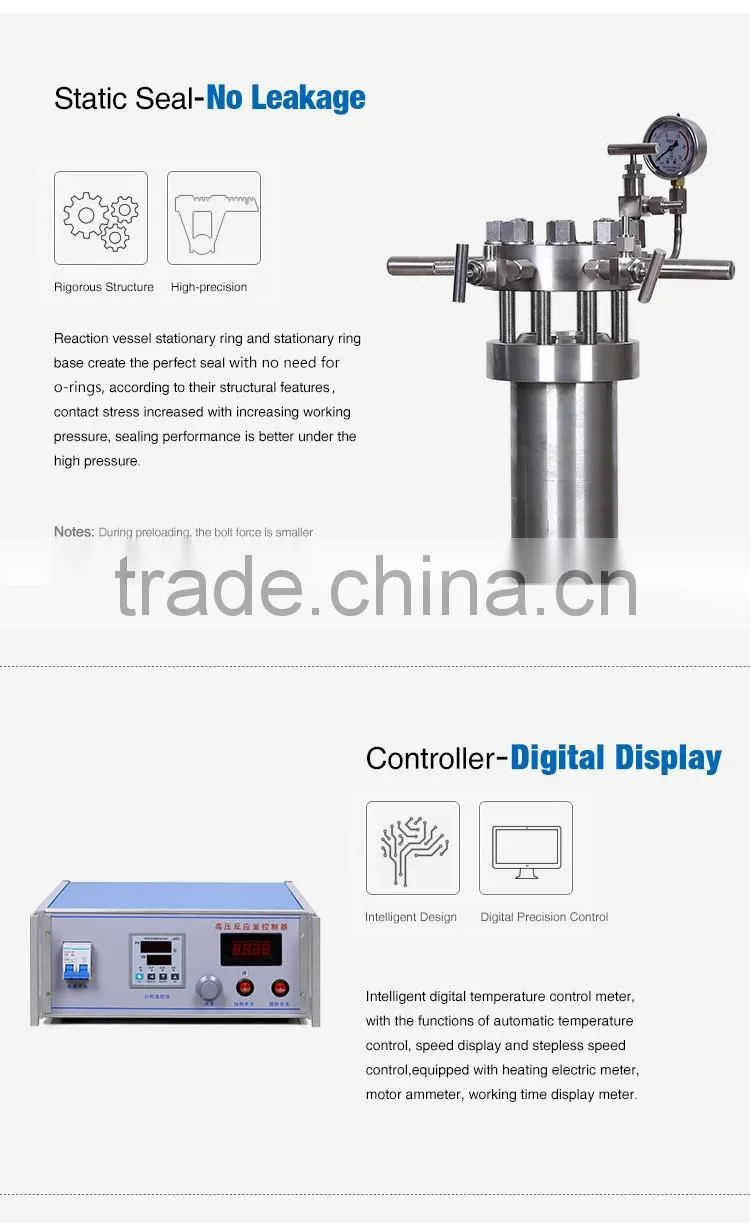

♦ This device mainly adopts static sealing structure, there is a magnetic coupling connected the agitator and motor. Due to its non-contact transmission torque, with static seal replaced dynamic seal, can completely solve the leakage problem in stirring, makes whole media and mixing parts completely in absolute sealed state in working. Therefore, our small autoclave is more suitable for all kinds of stirring reaction such as inflammable, explosive, toxic, precious media and other chemical medium of strong penetration which is the ideal non-leak reaction equipment to vulcanization, fluorination, oxidation in petroleum, chemical, organic synthesis, polymerization of polymer materials, food and other technology.
Technical parameter
Model |
CJF-0.05 |
CJF-0.1 |
CJF-0.25 |
CJF-0.5 |

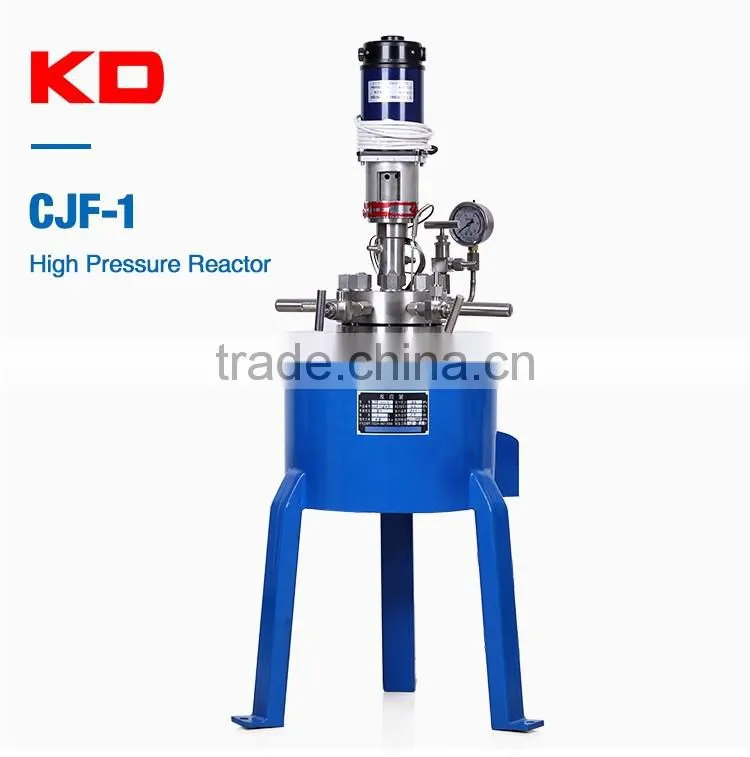

CJF -1 |
CJF -2 |
CJF -3 |
CJF -5 |
CJF-10 |
CJF-20 |
CJF-30 |
Capacity (L) |
0.05 |
0.1 |
0.25 |
0.5 |
1 |
2 |
3 |
5 |
10 |
20 |
30 |
Setting Pressure (Mpa) |
22 |
||||||||||
|
Setting Temperature (℃) |
350 |
||||||||||
|
Accuracy of temperature Control (℃) |
±1 |
||||||||||
Heating Method |
General electric heating, the others are far-infrared, thermal oil, steam, circulating water, etc |
||||||||||
Stirring Torque (N.cm) |
120 |
||||||||||
|
Heating Power (kw) |
0.6 |
0.8 |
1.5 |
2 |
2.5 |
4 |
7 |
10 |
10 |
||
Temperature controller |
Real~time display and adjust the speed, temperature, time, heating voltage, with standard PID automatic temperature adjustment meter. |
||||||||||
Temperature controller working environment |
Ambient temperature 0-50℃, relative humidity 30-80% |
||||||||||
Lifting mode |
CJF-no lift, FCF-manual lift or electric lift |
||||||||||
Material |
304/316 Stainless steel, Titanium, also can plus PTFE liner |
||||||||||
Packaging
-Plywood or carton packaging;
-Both neutral and customized packaging can be available.
Shipping
-We can ship the goods to you by International Express such as DHL, TNT, EMS, FedEX and so on and you can also choose the appropriate one based on your timeline and budget. Besides, you can definitely choose to use your own shipping agent.
zhengzhou keda Machinery and Instrument Equipment Co., Ltd, established in 1981, is a famous manufacturer of Lab equipment located in the central China. We specialized in rotary evaporator, jacketed glass reactor, single layer glass reactor, circulating water vacuum pump, low temperature reaction bath (slot), cooling chiller, vacuum drying oven, blast drying oven, high-pressure reaction kettle, freeze dryer(lyophilizer), water/oil bath, magnetic heating stirrer, hydrothermal synthesis reactor, heating mantle, lift table and so on.
Present, we have become a pacesetter of the lab instrument in China. Our products have been exported to the countries such as the UK, Greece, Poland, US, Australia, Brazil, South Africa, Ghana, Egypt, Iran, Pakistan, Thailand, India, Singapore, Malaysia and so on. Our products are also earning wide recognition among our users.
Though our foreign trade is not for long, we do have a history of more than 30 years for domestic trade. To assure the good quality & good service is our consistent aim.
1. Can the capacity be customized?
Yes.
2. What’s the largest volume you can manufacture?
3000L.
3. What kinds of reactors do you have?
Lifting-FCF series; Non lifting-CJF series
4. Can you match liner?
Yes,we can supply suitable PTFE and ceramic liners for your models.
5. The maximum pressure and temperature can reach?
Usually 22Mpa, 350 degree C.
6. What’s reactor made from?
Usually SS304 and SS316.
7. What’s your delivery time?
Common model: 3-5 working days
Customized model: 7-15 working days
8. Can you supplycooling function?
Yes.
9. What’s your sealing mode?
Static sealing, no “O” ring.

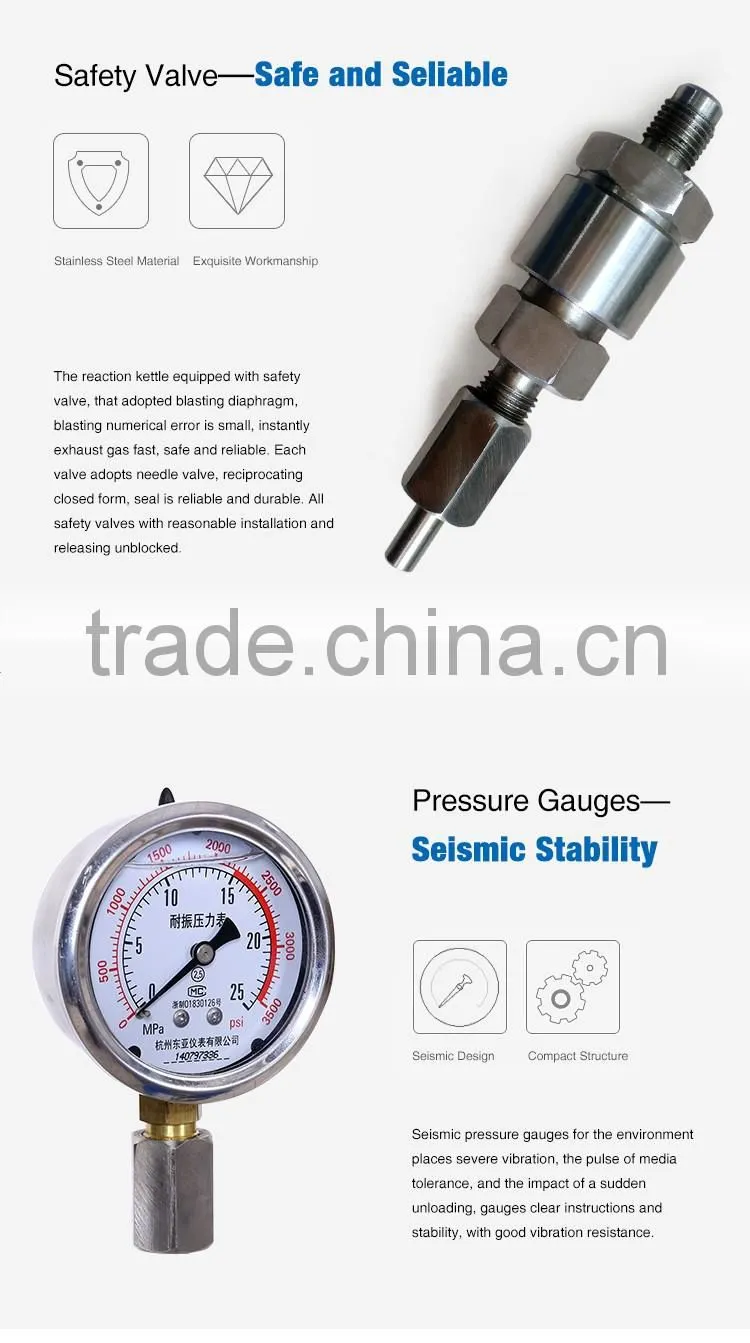

10. Is there safety valve on your device?
Yes.
