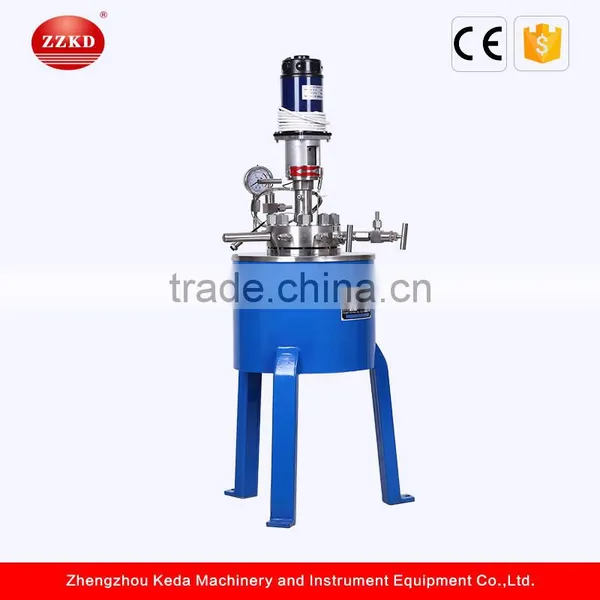

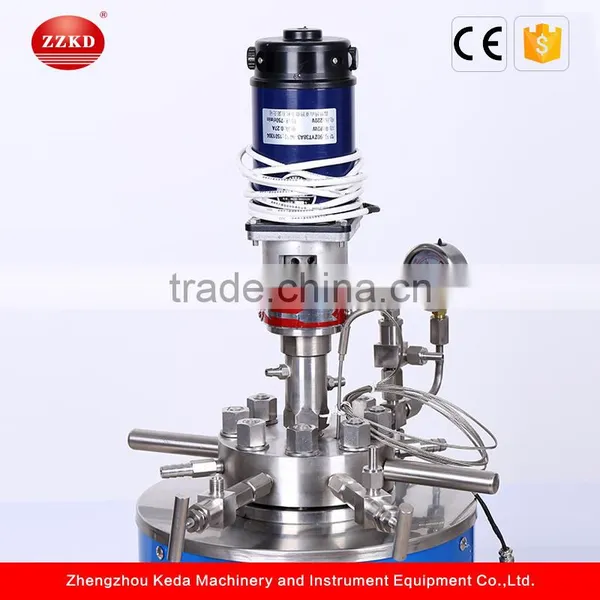

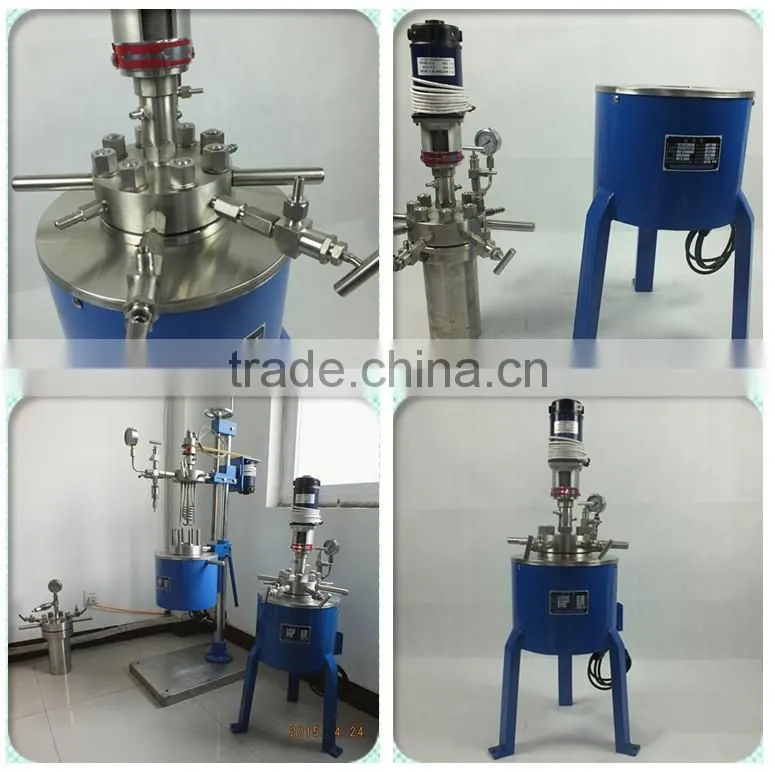

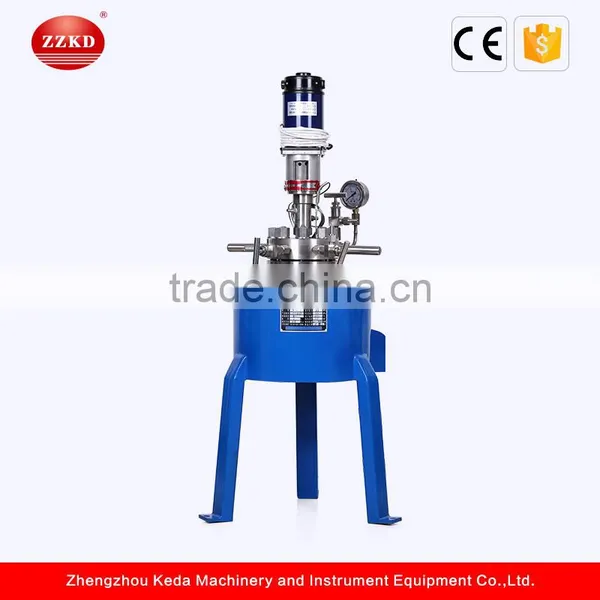

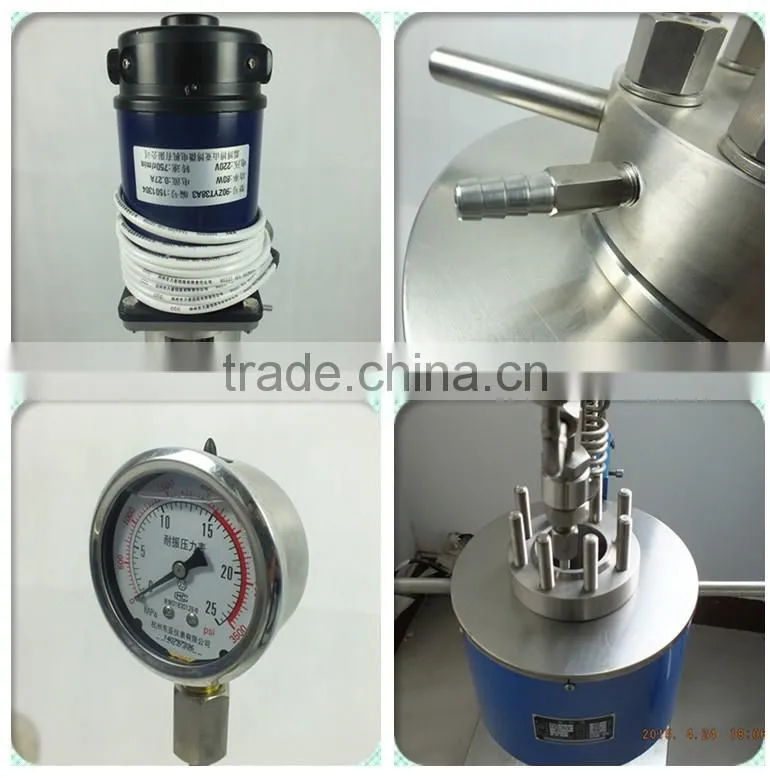

Small Type Stainless Steel High Pressure Laboratory Reaction Kettle
Function
Small high pressure reactor autoclave is suitable for flammable, explosive, high toxic, precious media and chemical media of strong penetration to stir. It is the best no-leak response for petroleum, chemical, organic synthesis, polymer, food and other process to vulcanize, fluorate, oxidize.
Features
(1)Static sealing structure

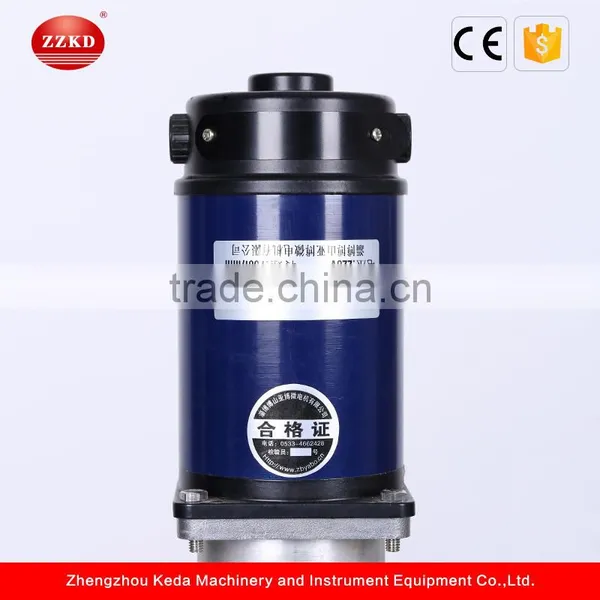

(2)The mixer bath electrical machinery transmission uses the magnetic force couple connection.
(3)No-touch passing moment, solving the stirred leak problem.
(4)Medium and the stirring member is in sealing state to work.
We have three types of high pressure reactor: CJF(without lift), FCF(with lift), CF(without Stirring).
Our products
Technical parameter
Model |
CJF-0.05 |
CJF-0.1 |
CJF-0.25 |
CJF-0.5 |
CJF- 1 |
CJF- 2 |
CJF- 3 |
CJF-5 |
CJF- 10 |
CJF-20 |
CJF-30 |
Capacity(L) |
0.05 |
0.1 |
0.25 |
0.5 |
1 |
2 |
3 |
5 |
10 |
20 |
30 |
Setting Pressure(Mpa) |
22 |
||||||||||
Setting Temperature(℃) |
350 |
||||||||||
Accuracy of temperature Control(℃) |
±1 |
||||||||||
Stirring Torque(N.cm) |
120 |
||||||||||
Heating Power(kw) |
0.6 |
0.8 |
1.5 |
2 |
2.5 |
4 |
7 |
10 |
10 |
||
Material |
1Gr18Ni9Ti |
||||||||||
We have the most convenient and efficient transport partners, to ensure that your goods sent to your hands in the shortest time, besides, good packing, to ensure your goods excellent without damage.
Perfect service system, mainly in four aspects:
1. Pre-service
24 Hours online service for your consult.
Help choose right model and a series of service, person advise.
2. Middle service
--Give you best offer
--Provide discount for many sets order
--Do customer's request
--Choose payment term you convienent.
--Promptly production and delivery, inform you in time.
--Can provide invoice value as you like to decrease your tax.
3. After sale service
--1 year warranty service and all life maintenance.
--Technical Egineer are avalible for oversea trainning.
--Free change for some parts
--Remote control technical consult
--Free installation DVD
--Maintenance plan
4. Good Packaging
All products are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.
zhengzhou Keda Machinery and Instrument Equipment Co., Ltd, established in 1981,is a famous manufacturer of Lab equipment located in the central China. We specialized in vacuum pumps, rotary evaporators, thermostatic magnetic stirrers, glass reactors, low temperature cooling circulating pumps, oil baths, electric mixers, ovens, water baths,freeze-drying machines, electronic energy-saving temperature control devices, smart thermostats and so on.
Present,we have become a pacesetter of the lab instrument in China. Our products have been exported to the countries such as the UK, Greece, Poland, theUS, Australia, Brazil, South Africa, Ghana, Egypt, Iran, Pakistan, Thailand, India, Singapore, Malaysia and so on earning wide recognition among the users.
Though our foreign trade is not for long, we do have a history of more than 30 years ofour domestic trade. To assure the good quality & good service is our consistent aim .
1. Can the capacity be customized?
Yes.
2. What’s the largest volume you can manufacture?
3000L.
3. What kinds of reactors do you have?
Lifting-FCF series; Non lifting-CJF series, CF series
4. Can you match liner?
Yes, we can supply suitable PTFE and ceramic liners for your models.
5. The maximum pressure and temperature can reach?
Usually 22Mpa, 350 degree C.
6. What’s reactor made from?
Usually SS304 and SS316.
7. What’s your delivery time?
Common model: 3-5 working days
Customized model: 7-15 working days
8. Can you supplycooling function?
Yes.
9. What’s your sealing mode?
Static sealing, no “O” ring.
10. Is there safety valve on your device?
Yes.
