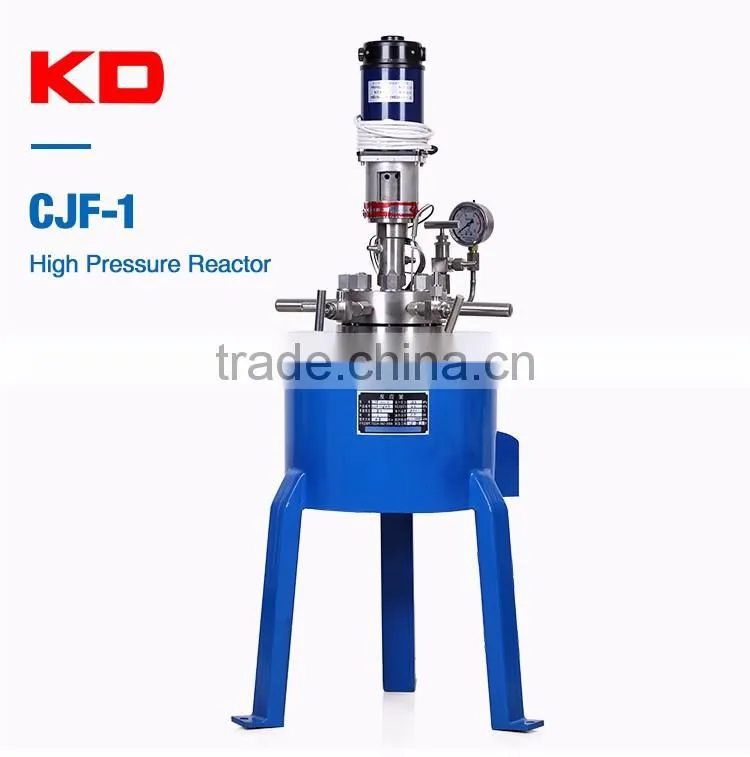

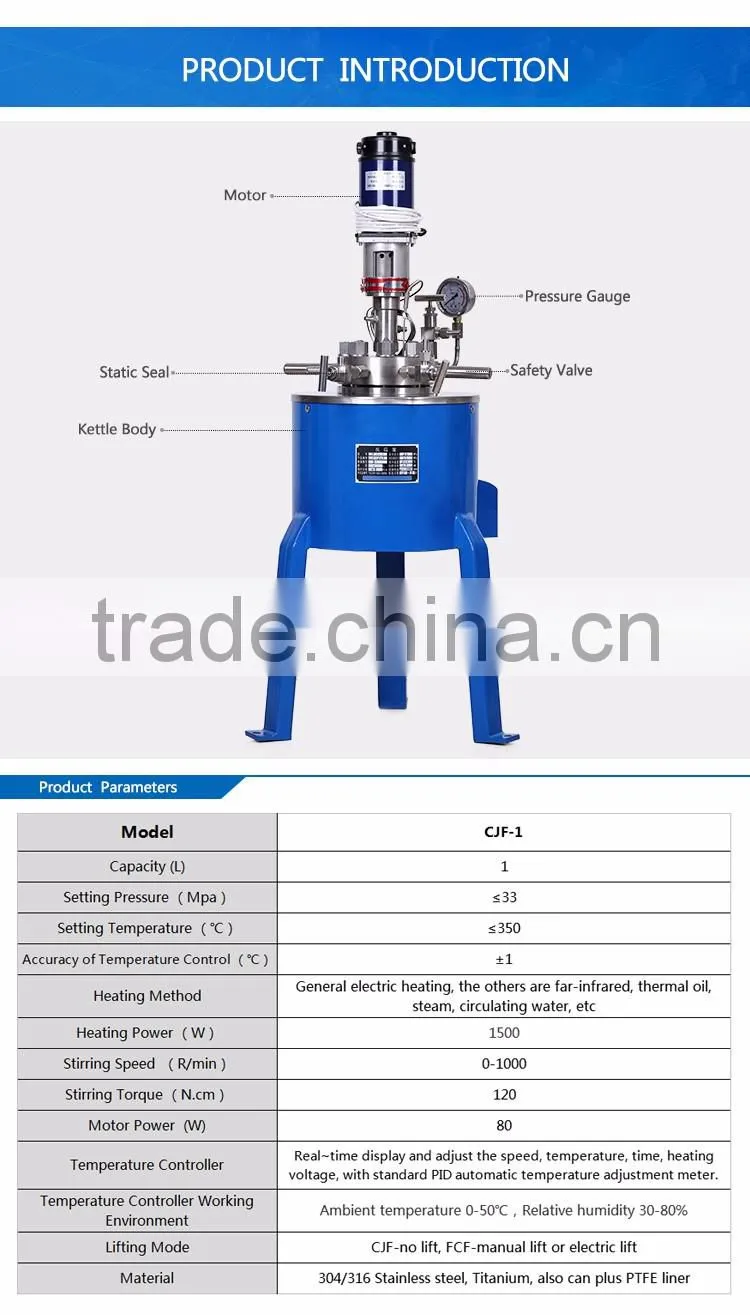

KD Small High Pressure Reactor Titanium Autoclave
Small high pressure reactor
No leakage, sulfide, fluoride, oxidation and static sealing, polymer composite materials.
Brief description
1. Small high pressure reactor
2. Static sealing structure
3. For lab using
4. ISO certification
5. manufacturer
Features

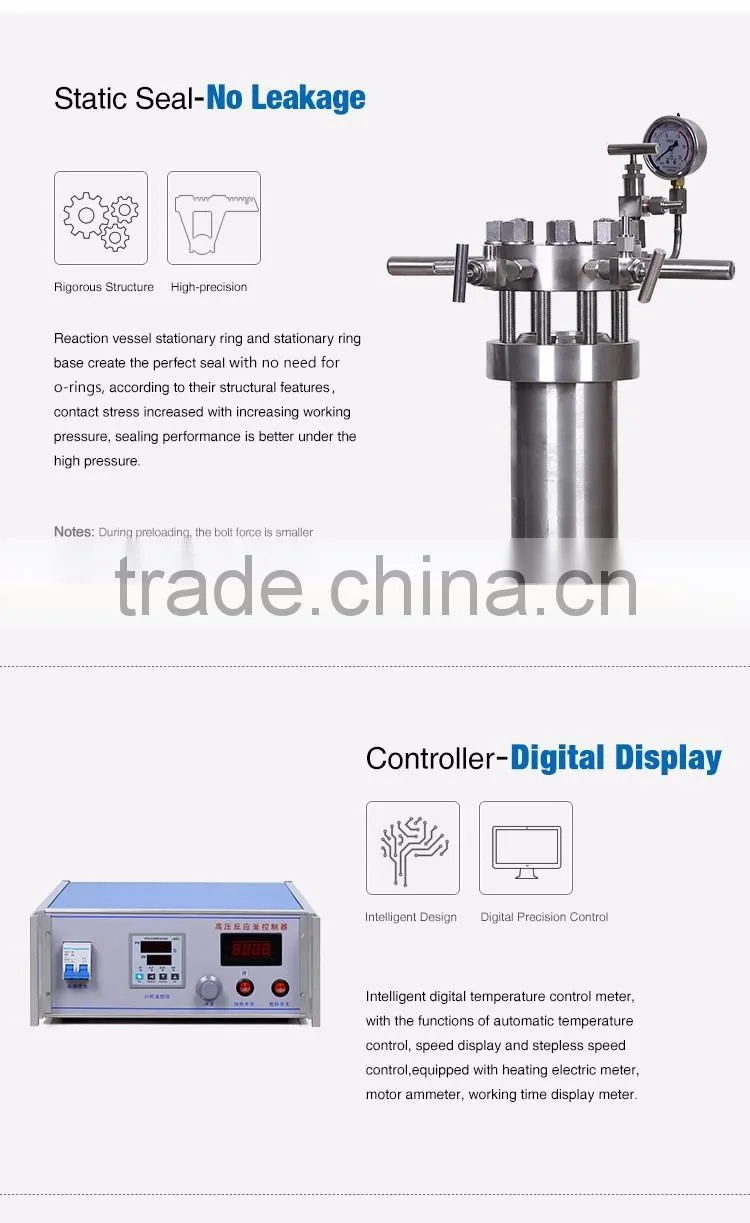

1. Static sealing structure

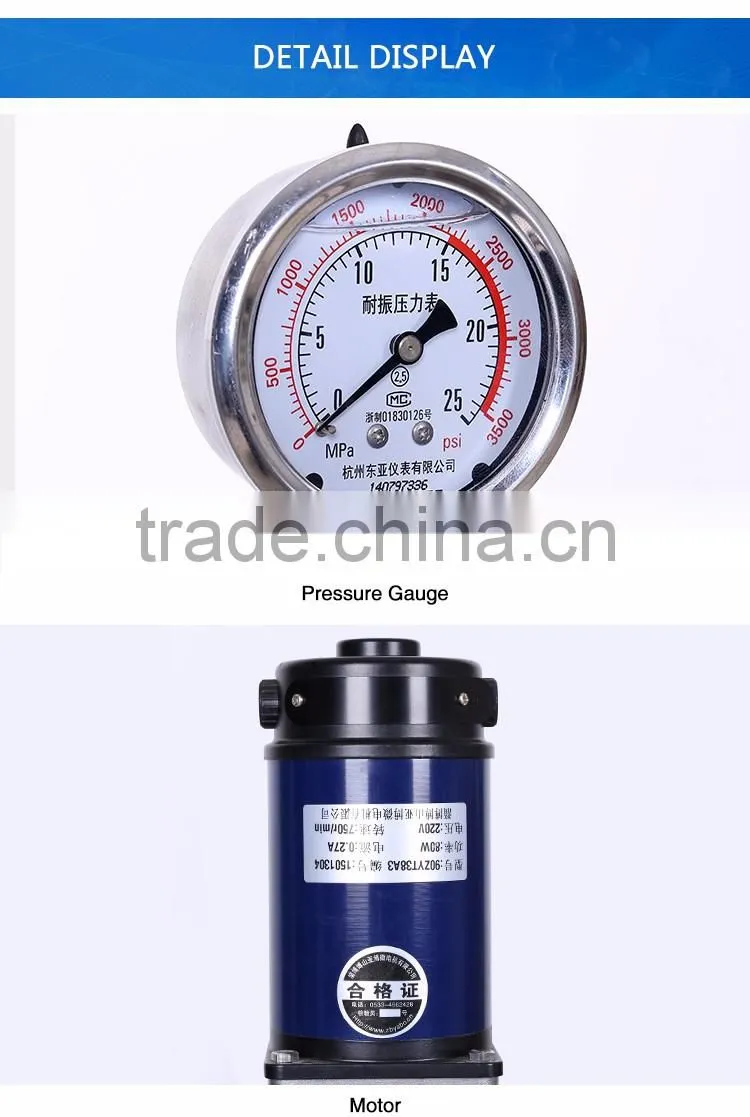

2. The mixer bath electrical machinery transmission uses the magnetic force couple connection.
3. No-touch passing moment, solving the stirred leak problem.
4. Medium and the stirring member is in sealing state to work.
Technical data
Model |
CJF-0.05 |
CJF- 0.1 |
CJF-0.25 |
CJF- 0.5 |
CJF- 1 |
CJF- 2 |
CJF- 3 |
CJF-5 |
CJF-10 |
CJF-20 |
CJF-30 |
|||
Capacity (L) |
0.05 |
0.1 |
0.25 |
0.5 |
1 |
2 |
3 |
5 |
10 |
20 |
30 |
|||
Setting Pressure (Mpa) |
22 |
|||||||||||||
Setting Temperature (℃) |
350 |
|||||||||||||
|
Accuracy of temperature control (℃) |
±1 |
|||||||||||||
Heating Method |
General electric heating, the others are far-infrared, thermal oil, steam, circulating water, etc |
|||||||||||||
|
Stirring Torque (N.cm) |
120 |
|||||||||||||
Heating Power (kw) |
0.6 |
0.8 |
1.5 |
2 |
2.5 |
4 |
7 |
10 |
10 |
|||||

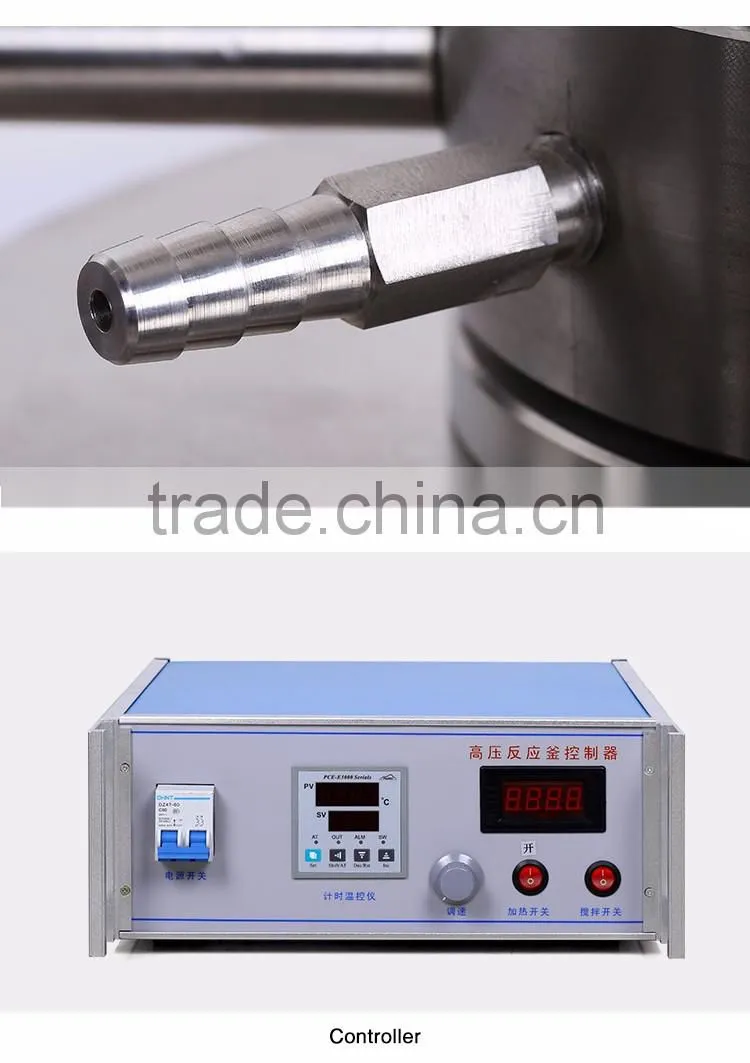

Temperature controller |
Real~time display and adjust the speed, temperature, time, heating voltage, with standard PID automatic temperature adjustment meter. |
|||||||||||||
Temperature controller working environment |
Ambient temperature 0-50℃, Relative humidity 30-80% |
|||||||||||||
Lifting mode |
CJF-no lift, FCF-manual lift or electric lift |
|||||||||||||
Material |
304/316 Stainless steel, Titanium, also can plus PTFE liner |
|||||||||||||

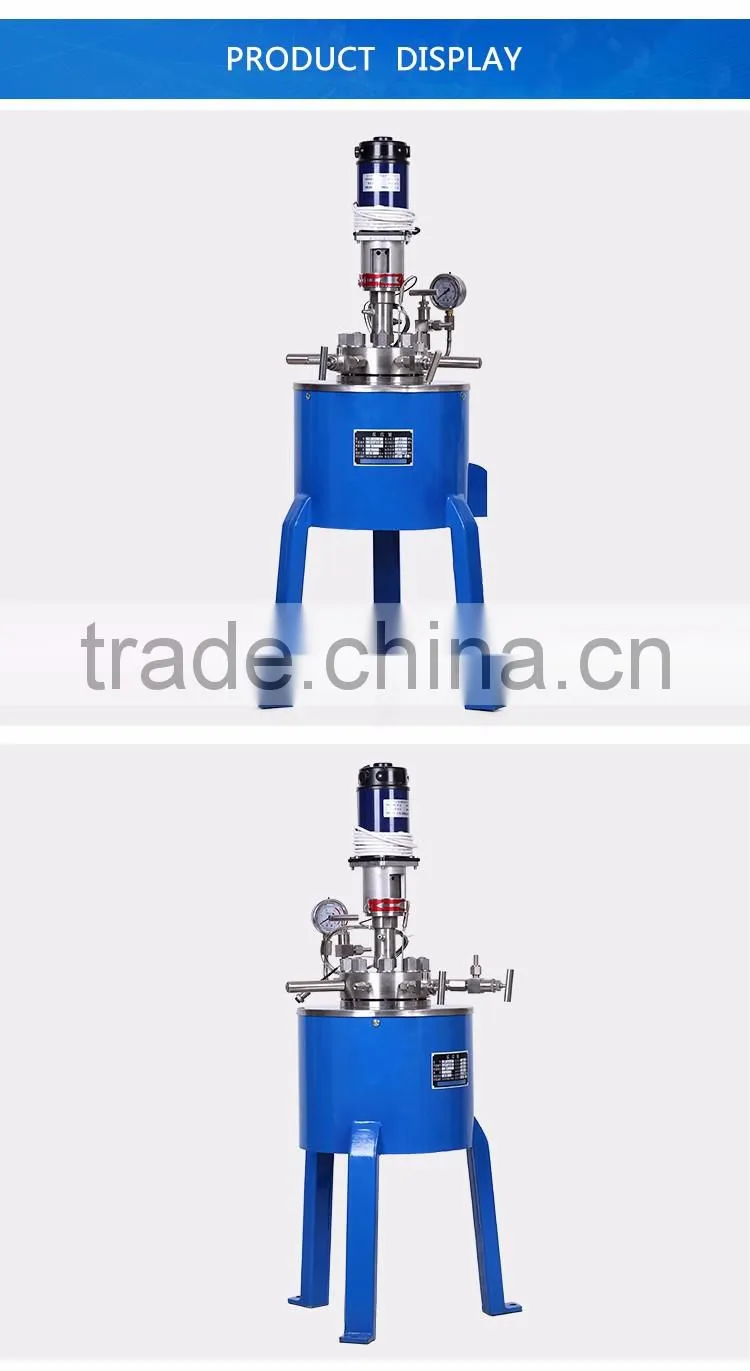

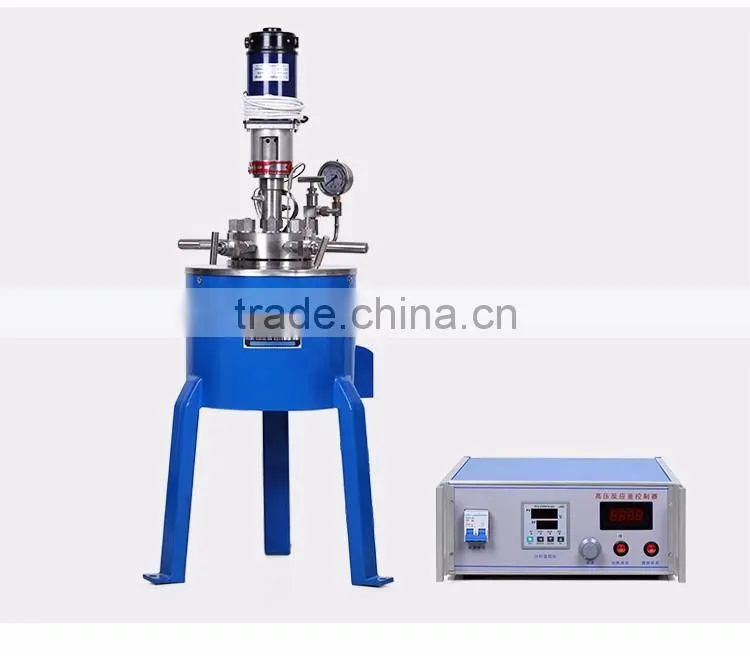

CJF small high pressure reactor
Packaging
-Wooden case or carton packaging;
-Both neutral and customized packaging can be available.
Shipping
-We can ship the goods to you by International Express such as DHL, TNT, EMS, FedEX and so on and you can also choose the appropriate one based on your timeline and budget. Besides, you can definitely choose to use your own shipping agent.
Service promise
1. Products quality guarantee is for one year, after the product was sold.
2. In the warranty period, the users operate according to instruction but meet problems, our company will maintain free of charge.
3. Beyond the warranty period, products problems can also be solved by my company maintenance, but charge wiring components fees properly.
Technology service
1. We have a mobile repair service team in our company, to carry out maintenance, consulting services in China for many years.
2. Users encounter problems when using our products, please contact us by telephone or email, we will be ready to provide consulting, maintenance and other services immediately.
Zhengzhou Keda Machinery and Instrument Equipment Co., Ltd. is specialized in R & D, production, sales, teaching and chemical biology pharmacy equipment integrated company.
Company tenet: keeping reputation, valuing contracts, supplying lower prices and better quality equipments to serve the cause of china's scientific research.
Our company always adheres to the "quality casting brand, professional achieves service"
business philosophy, and the main product is rotary evaporator, short path distillation, jacketed glass reactor, single layer glass reactor, circulating water vacuum pump, low temperature reaction bath (slot), low temperature cooling fluid circulating pump(cooling chiller), vacuum drying oven, blast drying oven, high-pressure reaction kettle, microwave chemical reactor, freeze dryer, water/oil bath, magnetic heating stirrer, hydrothermal synthesis reactor, heating mantle, lift jack, etc. Besides, we act as agents of some domestic and foreign famous enterprise products, sustaining high prais in domestic junior colleges and universities, scientific research units, etc. Our products are sold to USA, Australia, Asia, Brazil, Iran, Egypt etc.
The quality of the products, also full affirmation and praise by our domestic and foreign customers.
Business Type: Manufacturer, Trading Company.
Location: Henan, China (Mainland).
Year Established: 2009.
Total Revenue : US$1 Million - US$2.5 Million.
Registration No: 410105000067362.
Main Markets: Central America, Mid East, Oceania, Africa, South America and so on.
1. Can the capacity be customized?
Yes.
2. What’s the largest volume you can manufacture?
3000L.
3. What kinds of reactors do you have?
Lifting-FCF series; Non lifting-CJF series
4. Can you match liner?
Yes,we can supply suitable PTFE and ceramic liners for your models.
5. The maximum pressure and temperature can reach?
Usually 22Mpa, 350 degree C.
6. What’s reactor made from?
Usually SS304 and SS316.
7. What’s your delivery time?
Common model: 3-5 working days
Customized model: 7-15 working days
8. Can you supplycooling function?
Yes.
9. What’s your sealing mode?
Static sealing, no “O” ring.

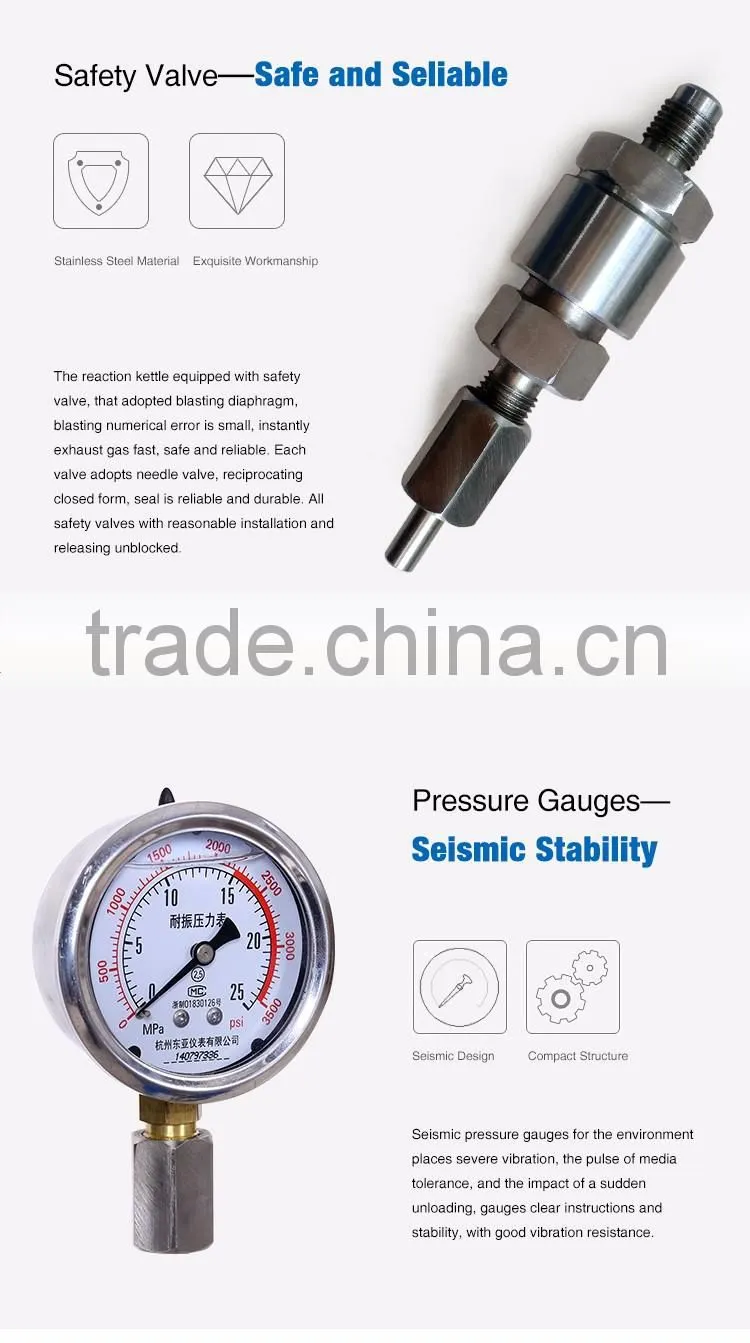

10. Is there safety valve on your device?
Yes.
