Flammable Media Stirred Magnetic Reactor High Pressure
- 650 Set / Sets per Month
- lianyungang beijing qingdao shaghai
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Condition | New | Automatic Grade | Semi-Automatic | |
| Type | Reaction Kettle | Place of Origin | Henan, China | |
| Brand Name | ZZKD | Model Number | FCF series | |
| Voltage | 220V/50HZ | Power(W) | 0.6kw-10kw | |
| Dimension(L*W*H) | Vary | Weight | vary | |
| Certification | CE ISO | Warranty | 1 Year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

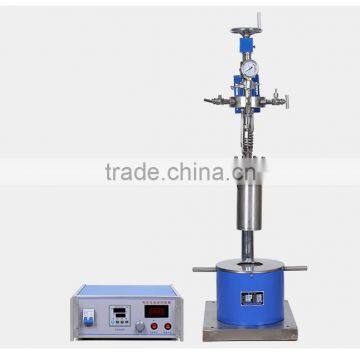

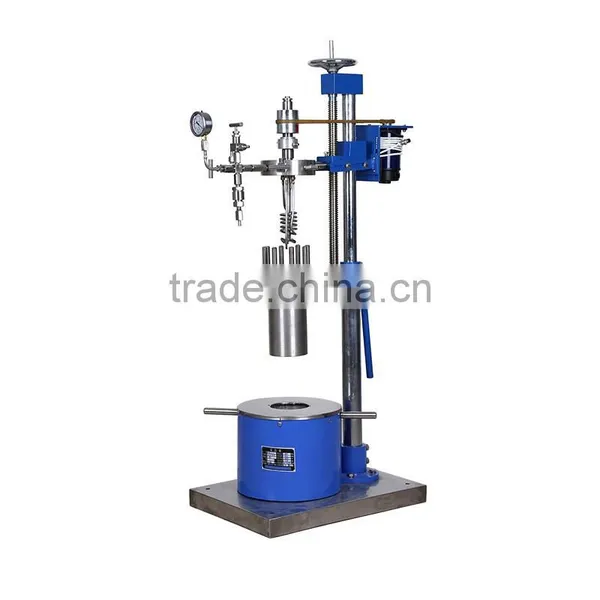

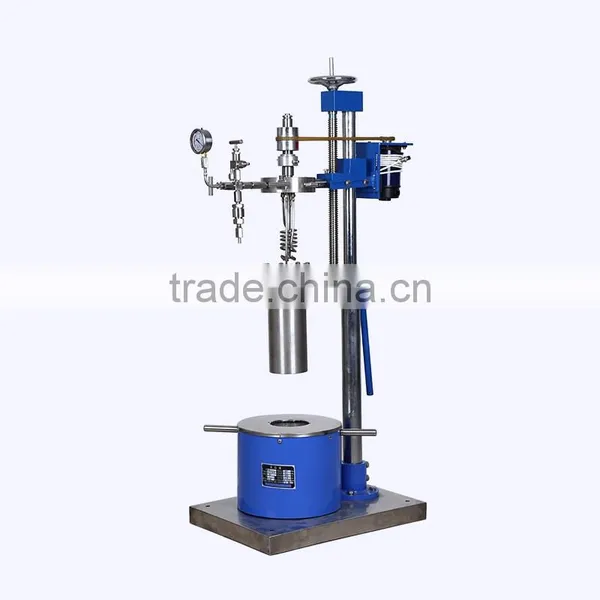

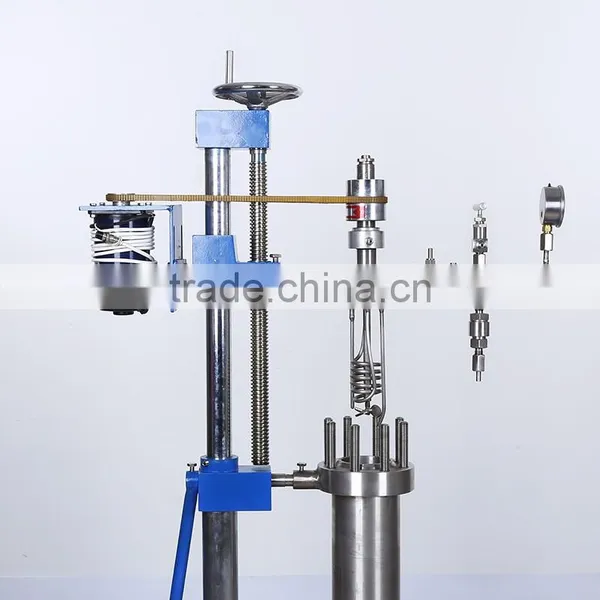

Flammable Media Stirred Magnetic Reactor High Pressure
Product discription
We design and manufacture high pressure stirred autoclave, pressure up to 35Mpa and temperatures up to 450℃ in various material of constructions like SS304/304l,SS316/316L, hastelloy B/C, monel, inconel,nickel and titanium from lab to pilotplant scale for many applications with the evolving needs of the industry for enhanced productivity and lower cost of production. This equipment is used for many
Applications such as chemical reactions like alkylation, amination, bromination,carboxylation,catalytic reduction, chlorination etc.,also for production of chemical in small quantity ,soaking of diaonds/precious stones, corrosion testing, reacting calorimetry etc
Features
l Static sealing structure
l With lifting device, big capacity can be customized as you demands
l High torque, zero leakage magnetic drive coupling
l Control system to continuously monitor temperature
Technical paremeter
Model | FCF-0.05 | FCF-0.1 | FCF-0.25 | FCF-O.5 | FCF-1 | FCF-2 | FCF-3 | FCF-5 | FCF-10 | FCF-20 | FCF-30 |
Capacity(L) | 0.05 | 0.1 | 0.25 | 0.5 | 1 | 2 | 3 | 5 | 10 | 20 | 30 |
Setting pressure | 22 | ||||||||||
Setting temperature | 350 | ||||||||||
Accuracy of temperature control (℃) | ±1 | ||||||||||
Heating method | General electric heating, others are far-infrared, thermal oil, steam, circulating water, etc. | ||||||||||
Stirring torque(N. cm) | 120 | ||||||||||
Heating power(kW) | 0.6
| 0.8 | 1.5 | 2 | 2.5 | 4 | 7 | 10 | |||
Temperature controller | Real- time display and adjust the speed, temperature ,time ,with standard PID automatic temperature adjustment meter | ||||||||||
Working environment | Ambient Temperature ,Relatively Humidity 30-80% | ||||||||||
Voltage(V/Hz) | 220 50/60 | ||||||||||
Packing and shipping
Shipping is up to you!!! Keda supports all requirements of you!!!
Packaging
-Export wooden or carton packing
-Both neutral and customized packaging can be available
Shipping
-We can ship the goods to you per the below shipping methods and you can choose the appropriate one
based on your timeline and budget. Also you can definitely choose to use your own shipping agent.
our services
Company information
FAQ
1.What's the minimum order quantity?
One set at present
2.What kind of payment term do you accept?
Normally we accept TT, Paypal, Western Union, Alibaba Escrow, and L/C. The exactly term with be discussed during the deal.
3. How will you delivery these goods?
It will be decided according to your quantity. Normally we will choose International Express, Air and sea.
4.How will package glass equipment?
We package these glass equipment in good and Non fumigation standard wooden case
5.Can you accept OEM terms?
Sure.
For more details about please contact us we will reply to you within 24 hours,any inquiry is warmly welcomed!
Contact Us
- Zhengzhou Keda Machinery And Instrument Equipment Co., Ltd.
- Contact nameAlice Lee Chat Now
- Phone86-0371-87783156
- Address Room 201 Block B #2 Building, the National 863 Software Park, CuiZhu Street #6, Zhengzhou, Henan
