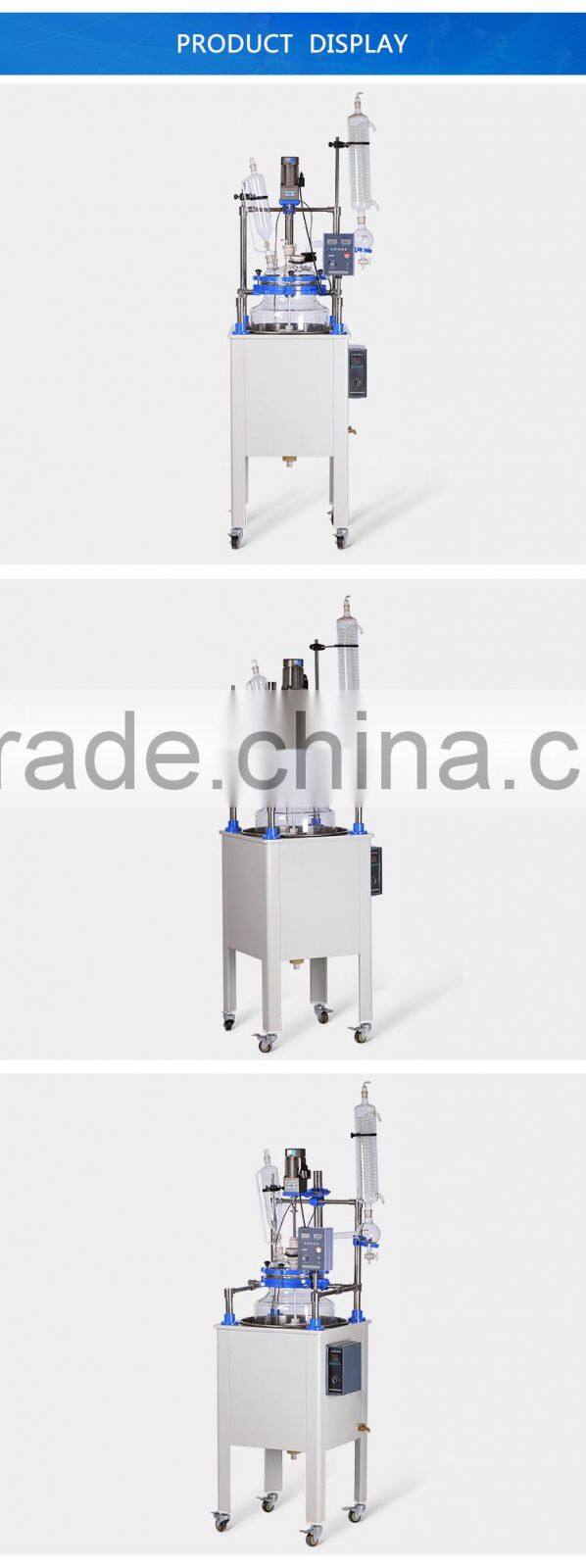

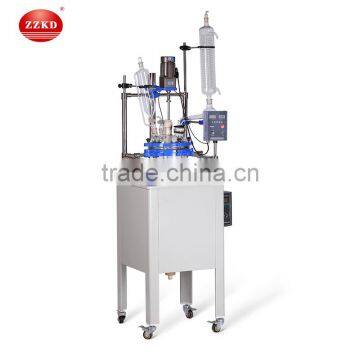

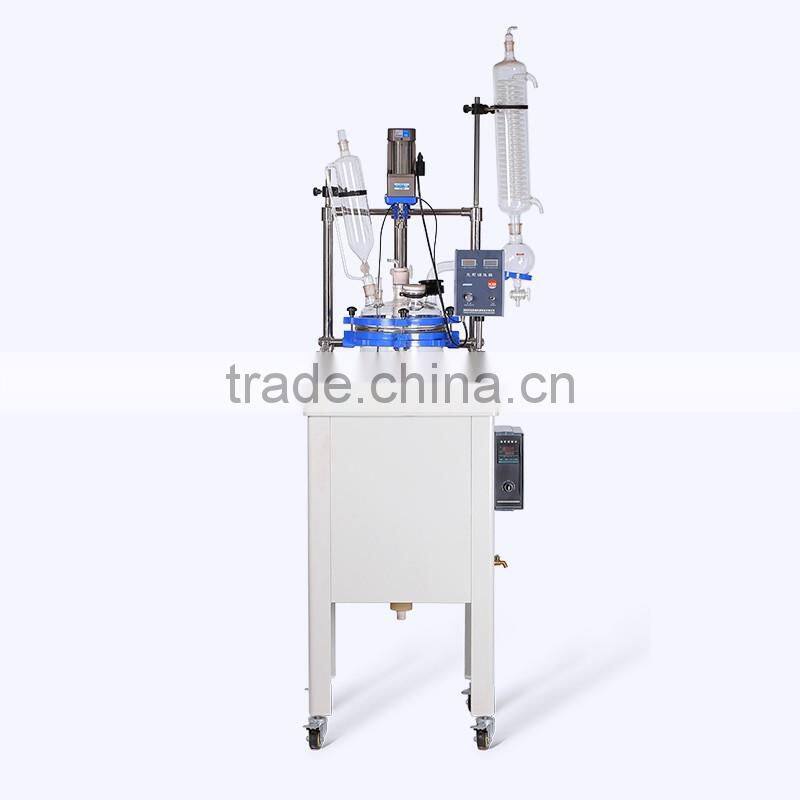

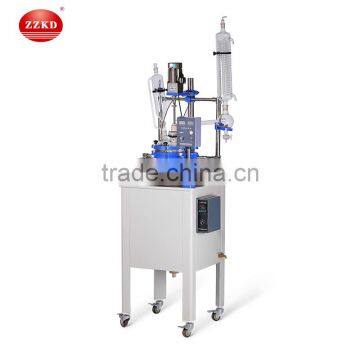

Single Layer Glass Reactor Vessel

Function Introduction

♦ Single layer glass reactor is an equipment which is a collaboration of vacuum state, distillation, reflux, stirring, oil/water heating, heating mantle. It can do all kinds of biochemical reactions and synthesis reactions at a constant temperature condition. It is also a colsed system on the whole.

♦ The single layer glass reactor has water/oil heating bath or heating mantle itself. Water/oil bath temperature is digital display, which can meet constant temperature state,fast temp. rising, accurate controllers.1-50L is circular and more than 50L is cylinder. After heating we can add the cooling coil in the tank to cool the material in short time.

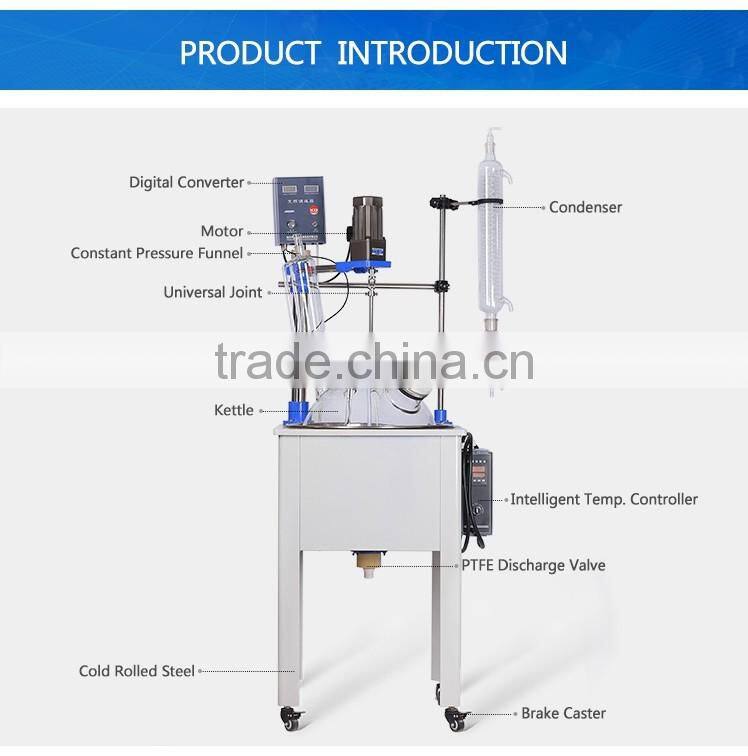

Features

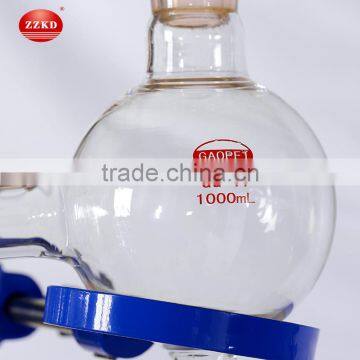

1. GG17 high-borosilicate glass with good physical-chemical properties.

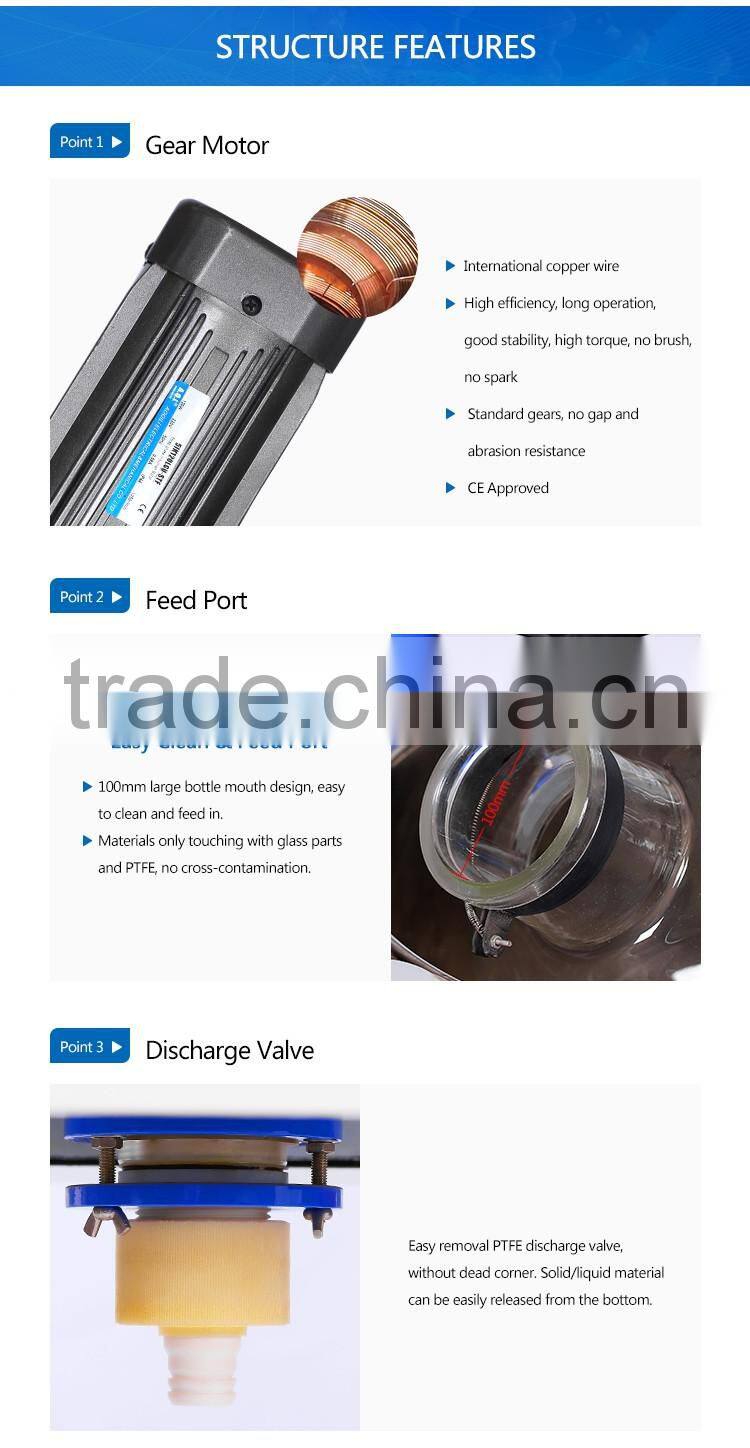

2. Frequency control speed gear motor, smooth running, high torque, automatically give force, no spark, no noise, long service life.

3. PTFE sealing, proprietary technology, to ensure good vacuum level and long service life.

4. Structural stability,and can be moved overall.

5. PTFE discharge valve, not only can meet no dead mixing, but also can quickly discharg no residue.

6. Kettle body and the interface can be customized according to customer requirements.

7. Whether cooling or heating, accessory products can be produced according to customer requirements.

8. The whole structure  innovative, practical and aesthetic,domestic industry-leading.

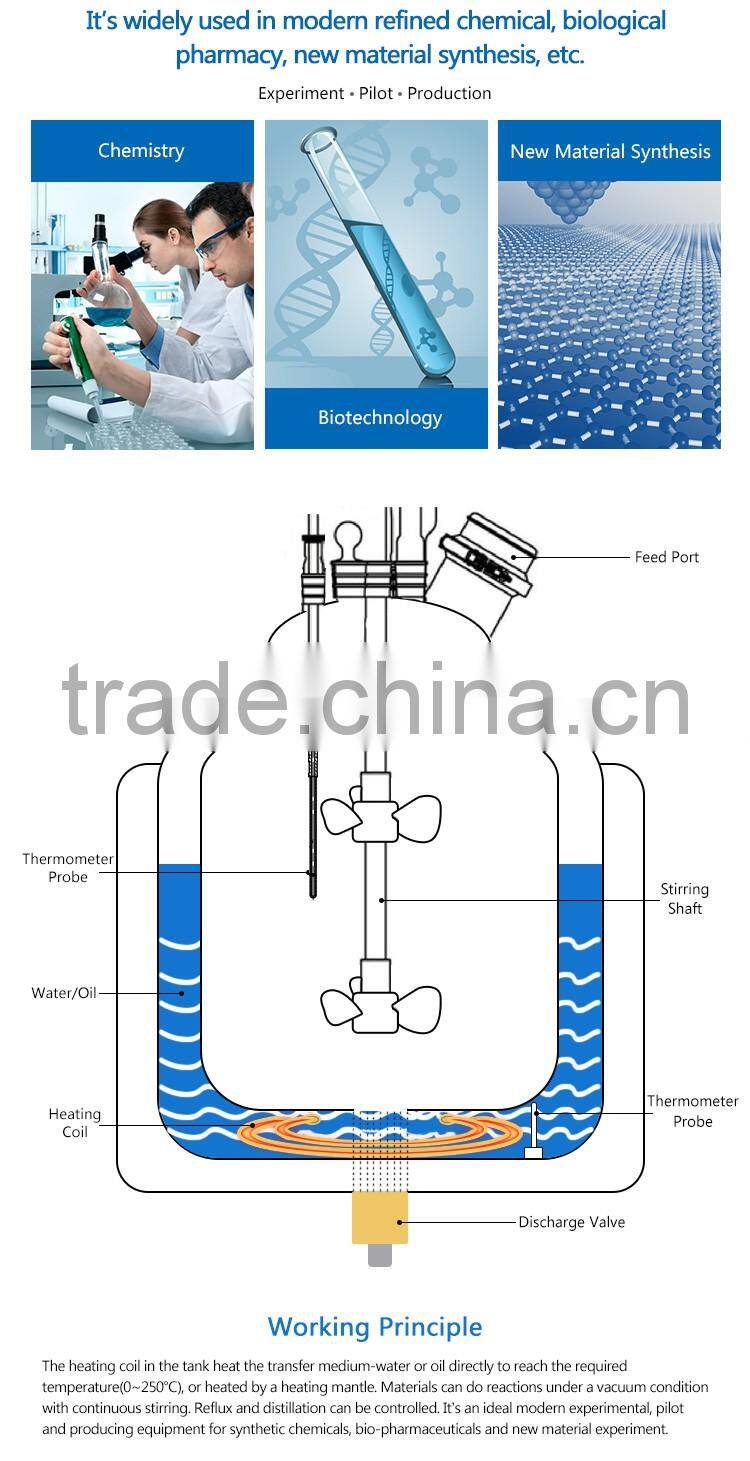

Heating Principle

Through the heating coil in the tank heat the transfer medium-water or oil heating,(or heating the kettle body by heating mantle diretly). Then the transfer medium pass its hot energy to reaction materials in the kettle.Constant temperature heating and stirring can proceed simultaneously. Materials for the reaction in the reactor, and can control the evaporation and reflux of the reaction solution.

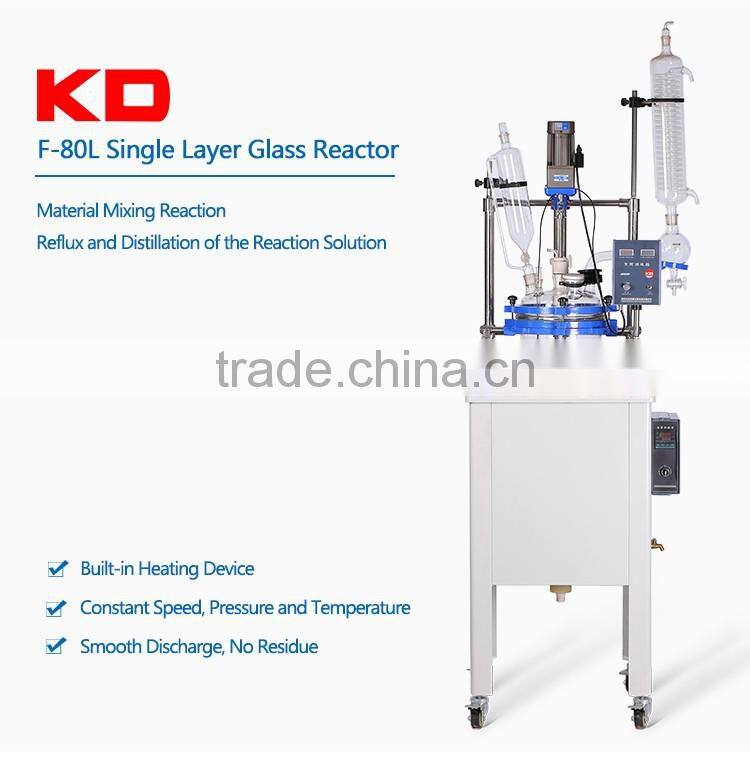

F-80L Technical Data

Voltage 110V or 380V is avaliable.

Mixing power, torgue can be customized according to customers’ demands.

Refrigeration components are optional.

Ancillary equipment

Circulating water vacuum pump: Used to provide a vacuum source.

Cooling  chiller: Reflux, condensation and cool the material.

Packaging
-After use cartons inside, outside with wooden case packaging;
-Both neutral and customized packaging can be available.
Shipping
-We can ship the goods to you by International Express such as DHL,TNT,EMS,FedEX and so on and you can also choose the appropriate one based on your timeline and budget. Besides, you can definitely choose to use your own shipping agent.

           Zhengzhou Keda Machinery and Instrument Equipment Co., Ltd.
Our company always adheres to the "quality casting brand, professional achieves service" business philosophy, and the main product  is rotary evaporator, jacketed glass reactor, single layer glass reactor, circulating water vacuum pump, low temperature reaction bath (slot), low temperature cooling fluid circulating pump(cooling chiller), vacuum drying oven, blast drying oven,high-pressure reaction kettle,freeze dryer(lyophilizer), water/oil bath,magnetic heating stirrer,hydrothermal synthesis reactor,heating mantle,lift platform, etc. Besides, we act as agents of some domestic and foreign famous enterprise products, sustaining high prais in domestic junior colleges and universities, scientific research units, etc. Our products are sold to USA, Australia, Asia, Brazil, Iran, Egypt etc.
The quality of the products, also full affirmation and praise by our domestic and foreign customers.

Business Type: Manufacturer, Trading Company;

Location: Henan,China (Mainland);

Year Established: 2009;

Total Revenue : US$1 Million - US$2.5 Million;

Registration No: 410105000067362;

Main Markets: Central America,Mid East,Oceania,Africa,South America and so on.

Service Promise

1. Products quality guarantee is for one year,after the product was sold.

2. In the warranty period, the users operate according to instruction but meet problems ,our company will maintain free of charge.

3. Beyond the warranty period ,products problems can also be solved by my company maintenance, but charge wiring components fees properly.

Technology Service
1. We have a mobile repair service team in our company , to carry out maintenance , consulting services in China for many years.

2. Users encounter problems when using our products , please contact us by telephone or email,we will be ready to provide consulting, maintenance and other services immediately.

CE Certification

1. What's the max temperature?

Usually the high borosilicate glass can withstand over 300 degree centigrade and the PTFE stirring bar can withstand about 200 degree centigrade

2. What's the size do you have?

We can offer you 1L,2L,5L, 10L, 20L, 30L, 50L, 100L,150L.

3. How many kinds of your glass reactor?

Two types: jacketed glass reactor and single layer glass reactor.

Explosion proof  is avaliable.

4. What’s the heating mode of single layer glass reactor?

Oil/water bath heating, and heating mantle

5. Can you offer the supporting facilities?

Yes, we can offer you the vacuum, heating and cooling system as you demand.

6. What's the minimum order quantity?

One set at present.

7. What kind of payment term do you accept?

Normally we accept TT, Paypal, Western Union, Alibaba Escrow, and L/C. The exactly term with be discussed during the deal.

8. How will you delivery these goods?

It will be decided according to your quantity. Normally we will choose International Express,  Air and sea.For small orders, we will send the goods by International Express like Fedex, DHL,TNT or UPS. Usually it takes 3~5 working days to arrive. If big quantities we will ship by Ocean transportation, it takes one month to arrive. If urgent, you can select shipping by Air, but freight charge will be more expensive.

9. How will package glass equipment?

We package these glass equipment in good and Non fumigation standard wooden case.
