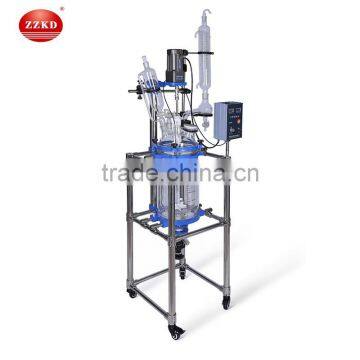

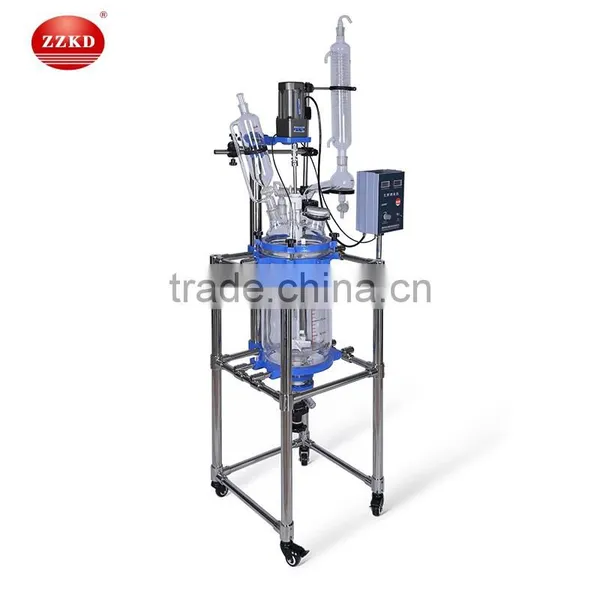

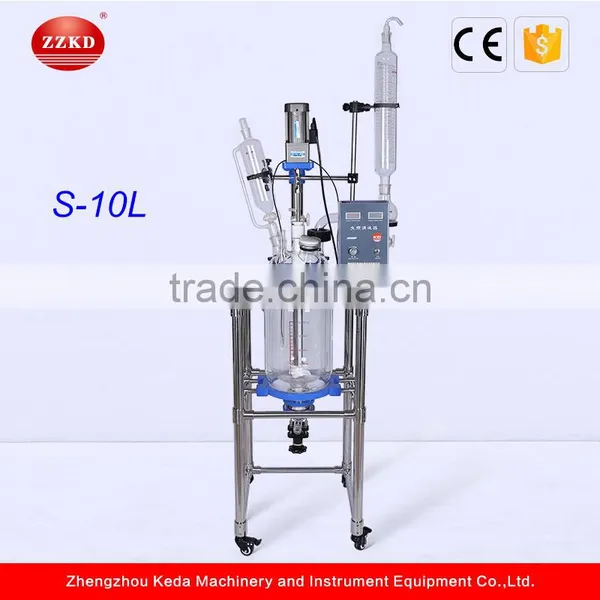

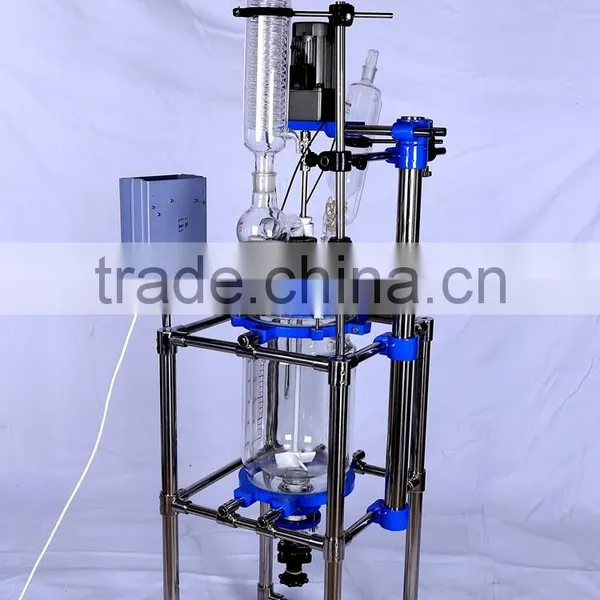

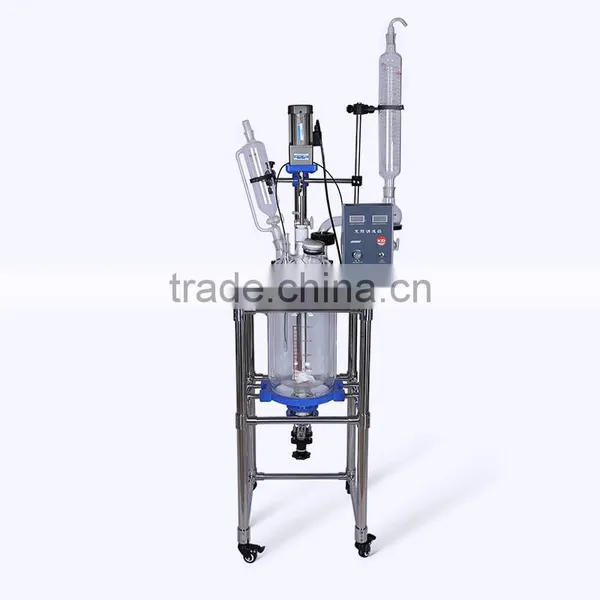

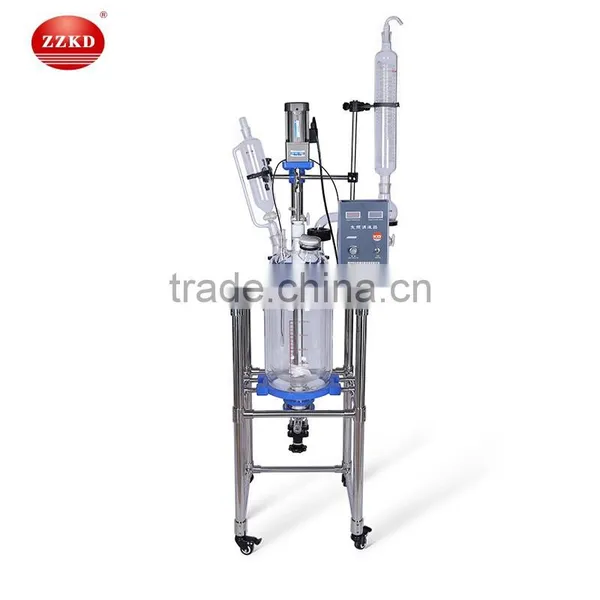

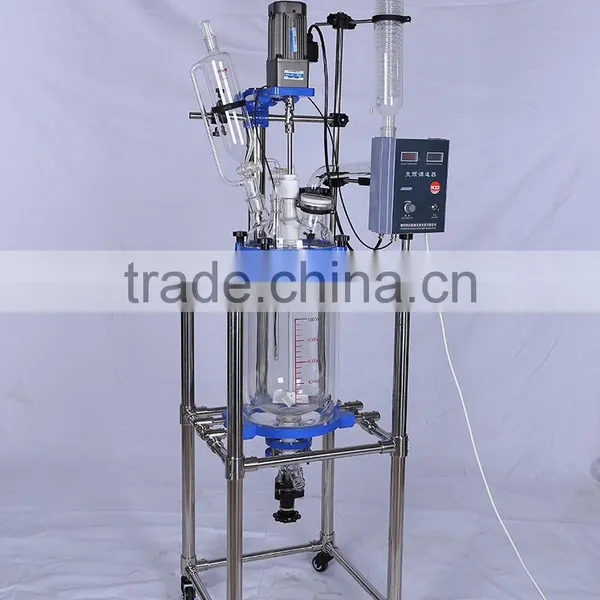

Help CenterKD Explosion-proof Continuous Stirred Tank Glass Reactor
Related Products
-
EXSF Explosion-proof Multi-function Stainless Steel Glass Reactor(single-layer)US$ 500 - 3,541MOQ: 1 Set -
Explosion-proof Multi-function Jacketed Batch Glass ReactorUS$ 1 - 3,680MOQ: 1 Set
-
EXSF Explosion-proof Pilot Plant Glass ReactorUS$ 1 - 3,920MOQ: 1 Set
-
EXSF Explosion-proof Multi-function Jacketed Glass ReactorUS$ 1 - 3,300MOQ: 1 Set
-
EXSF Explosion-proof Multi-function Jacketed Glass Lined ReactorUS$ 1 - 3,980MOQ: 1 Set

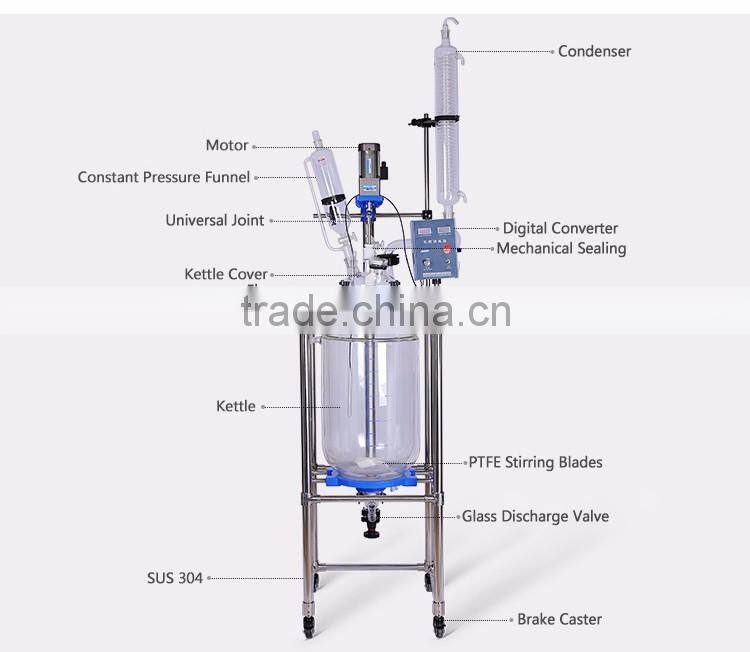

Brief introduction
Jacketed glass reactor with Explosion Proof device, can prevent flammable and explosive gases from the environment into the Eletrical box, prevent and reduce the accident, ensure the experiment will be safe and smooth.
Feature
1. GG17 high-borosilicate glass, resistant to strong acidic properties of materials; experiment temperature -80 to 250 degree C;
2. Cover is convenient to disassemble, clean and install.
3. Stirring mechanical sealing, keeps higher vacuum degree.
4. Glass(PTFE)discharge valve, non-dead angle mixing, fast emptying, no residue.
5. Frequency control speed gear motor, smooth running, high torque, automatic booster, no spark, noise free, long life.
Technical parameter
Model |
(EX)-10L |
(EX)-20L |
(EX)-30L |
(EX)-50L |
(EX)-100L |
Voltage(V/Hz) |
220 50/60 |
||||
Stirring Power(W) |
180 |
370 |
|||
Stirring Speed(rmp) |
0~600(Max.1300) |
||||
Capacity(L) |
10 |
20 |
30 |
50 |
100 |
Stirring Shaft Diameter(mm) |
12 |
15 |
|||
Motor Torque(g/cm) |
1000 |
1200 |
1200 |
1500 |
3000 |
Note |
304 all stainless frame |
||||
Product details
Packaging
-Plywood or carton packaging;
-Both neutral and customized packaging can be available.
Shipping
-We can ship the goods to you by International Express such as DHL, TNT, EMS, FedEX and so on and you can also choose the appropriate one based on your timeline and budget. Besides, you can definitely choose to use your own shipping agent.
1. Pre-service
24 Hours online service for your consult.
Help choose right model and a series of service, person advise.
2. Middle service
--Give you best offer
--Provide discount for many sets order
--Do customer's request:
--Choose payment term you convienent.
--Promptly production and delivery, inform you in time.
--Can provide invoice value as you like to decrease your tax.
3. After sale service
--1 year warranty service and all life maintenance.
--Technical Egineer are avalible for oversea trainning.
--Free change for some parts
--Remote control technical consult
--Free installation DVD
--Maintenance plan
4. Good Packaging
All products are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.
5. CE Certification
Zhengzhou Keda Machinery and Instrument Equipment Co., Ltd.
Our company always adheres to the "quality casting brand, professional achieves service" business philosophy, and the main product is rotary evaporator, jacketed glass reactor, single layer glass reactor, circulating water vacuum pump, low temperature reaction bath (slot), low temperature cooling fluid circulating pump(cooling chiller), vacuum drying oven, blast drying oven, high-pressure reaction kettle, freeze dryer(lyophilizer), water/oil bath, magnetic heating stirrer, hydrothermal synthesis reactor, heating mantle, lift jack, etc. Besides, we act as agents of some domestic and foreign famous enterprise products, sustaining high prais in domestic junior colleges and universities, scientific research units, etc. Our products are sold to USA, Australia, Asia, Brazil, Iran, Egypt etc.
The quality of the products, also full affirmation andpraise by our domestic and foreign customers.
1. What's the max temperature?
Usually the high borosilicate glass can withstand over 300 degree centigrade and the PTFE stirring bar can withstand about 200 degree centigrade
2. What's the size do you have?
We can offer you 1L, 2L, 5L, 10L, 20L, 30L, 50L, 100L,150L.
3. How many kinds of your glass reactor?
Two types: jacketed glass reactor and single layer glass reactor.
Explosion proof is available.
4. What’s the heating mode of single layer glass reactor?
Oil/water bath heating, and heating mantle.
5. Can you offer the supporting facilities?
Yes, we can offer you the vacuum, heating and cooling system as you demand.
6. What's the minimum order quantity?
One set at present.
