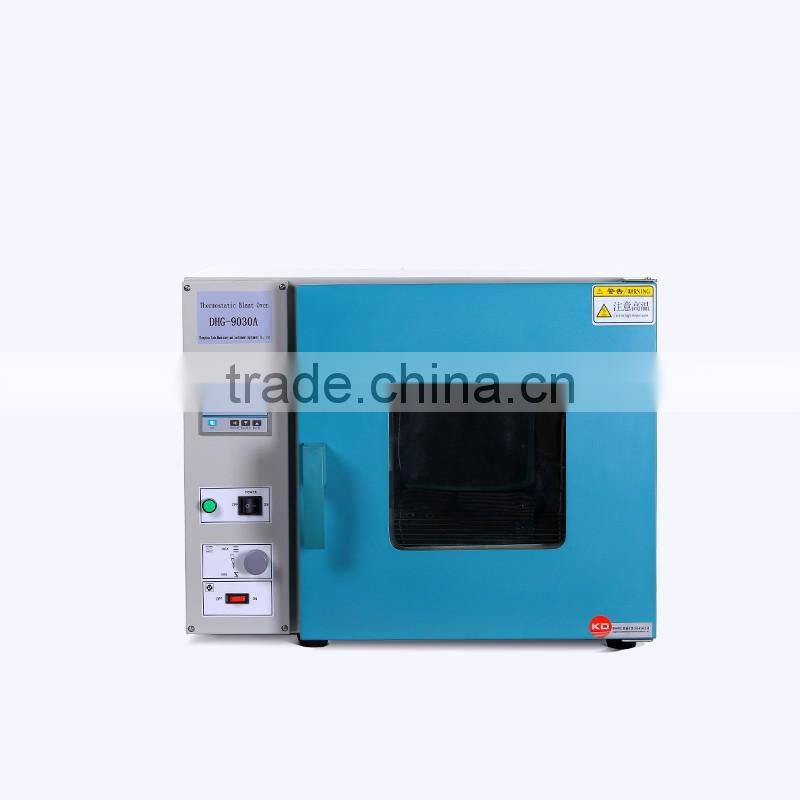

Micro-computer Control Electric Blowing Drying Box
Detailed description
Electric blowing dry box is used for drying, baking and sterilization for industrial in mining enterprises, laboratories, reasearch units, etc.
Specifications
1, Inside the oven adopts mirror stainless steel argon arc welding, shell, high quality steel, attractive appearance, novel.

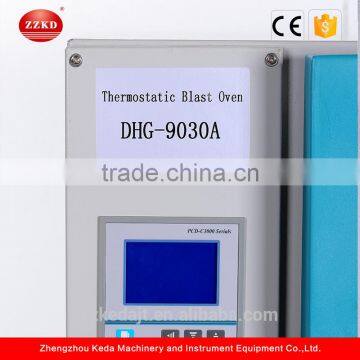

2, Adopt micro~computer PID temperature controller with over temperature deviation protection and digital. Timing function, temperature control precise and reliable(intelligent LCD programming temperatures controller optional).
3, Heated air circulating system consists of air blower and suitable air flue, continuous operation at high temperature, improve temperature uniformity.
4, Independent temperature limit warning system, exceeding the limit temperature shall be automatically interrupted, ensure the experiments operation safety.(optional)
5, Have printer or RS485 interface can be connected to printer or computer, record the changes of temperature parameters.(optional)
6, Temperature control instrument for intelligent digital display and digital display two for users to choose.
Model | DHG-9030A | DHG-9070A | DHG-9140A | DHG-9240A | DHG- 9420A | DHG- 9620A | DHG- 9920A |
Power Supply | 220V 50/60Hz | ||||||
Shell Material | Spray-paint Anti-corrosion | ||||||
Liner Material | 304 Stainless Steel | ||||||
Temp. Range | RT+10~250°C | RT+10~300°C | |||||
Temp. Stability | ±1.0°C | ||||||
Temp. Analysis | 0.1°C | ||||||
Working Temp. | +5~40°C | ||||||
Input Power (W) | 850 | 1100 | 1550 | 2050 | 3500 | 4000 | 6000 |
Chamber Capacity (L) | 40 | 72 | 151 | 216 | 393 | 672 | 960 |
Inner Dimension (W*D*H, mm) | 340*340*340 | 400*400*450 | 550*500*550 | 600*600*600 | 750*750*700 | 840*600*1335 | 1000*600*1600 |
Overall Dimension (W*D*H, mm) | 630*600*500 | 680*690*630 | 830*800*720 | 900*870*840 | 1050*950*920 | 980*800*1710 | 1140*800*2150 |
Shelves (Pcs) | 1 | 2 | 3 | 4 | 5 | ||
Time Range | 1~9999 min | ||||||
Optional Configuration | Explosion-proof | ||||||
Zhengzhou Keda Machinery and Instrument Equipment Co., Ltd
Our company always adheres to the "quality casting brand, professional achieves service"
business philosophy, and the main product is rotary evaporator, jacketed glass reactor, single layer glass reactor, circulating water vacuum pump, low temperature reaction bath (slot), cooling chiller, vacuum drying oven, blast drying oven, high-pressure reaction kettle, microwave chemical reactor, freeze dryer(lyophilizer), water/oil bath, magnetic heating stirrer, hydrothermal synthesis reactor, heating mantle, lift jack, etc. Besides, we act as agents of some domestic and foreign famous enterprise products, sustaining high prais in domestic junior colleges and universities, scientific research units, etc. Our products are sold to USA, Australia, Asia, Brazil, Iran, Egypt etc.
The quality of the products, also full affirmation and praise by our domestic and foreign customers.
Business Type: Manufacturer, Trading Company.
Location: Henan, China (Mainland).
Year Established: 2009.
Total Revenue : US$1 Million - US$2.5 Million.
Registration No: 410105000067362.
Main Markets: Central America, Mid East, Oceania, Africa, South America and so on.
Packaging
-Wooden case packaging;
-Both neutral and customized packaging can be available.
Shipping
-We can ship the goods to you by International Express such as DHL, TNT, EMS, FedEX and so on and you can also choose the appropriate one based on your timeline and budget. Besides, you can definitely choose to use your own shipping agent.
Service Promise
1. Products quality guarantee is for one year,after the product was sold.
2. In the warranty period, the users operate according to instruction but meet problems ,our company will maintain free of charge.
3. Beyond the warranty period ,products problems can also be solved by my company maintenance, but charge wiring components fees properly.
Technology Service
1. We have a mobile repair service team in our company , to carry out maintenance , consulting services in China for many years.
2. Users encounter problems when using our products , please contact us by telephone or email,we will be ready to provide consulting, maintenance and other services immediately.
CE Certification
1. How many shelves does your oven can hold?
Different models hold different number shelves like 1, 2, 3, 4 shelves. That will be according to the models.
2. What is your max temperature?
Max 250 degree C, 200 degree C is normal.
3. What kind of size do you have?
We have 8L(0.28 cu ft), 25L(0.9 cu ft), 55L(1.9 cu ft) and 91L(3.2 cu ft). They are normal and popular models. If you need bigger size we can supply it too.
4. Can you make 110V versions?
Yes, we can make it.
5. How is your oven heated?
There are many heating electric pipes surround the chamber inside, to keep the high temperature.
6. Could you make the temperature shows in Fahrenheit?
Yes, we can make it.
