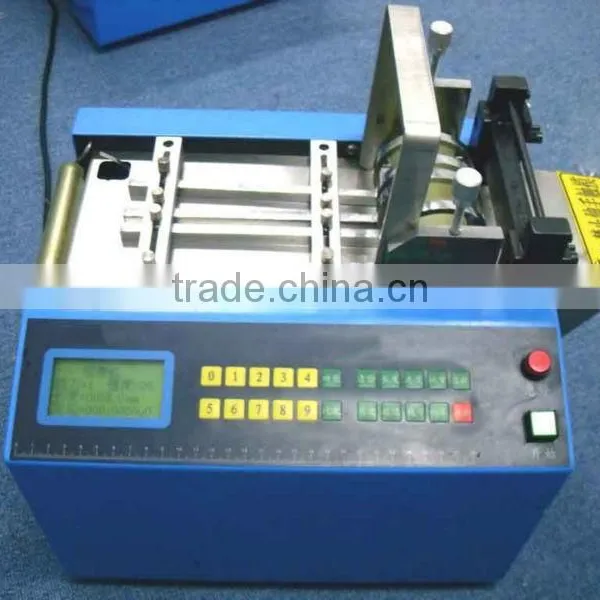

Automatic Small Cutting Machine For PVC Pipe With Microcmputer

This machine can be used to cut the shrinkable tube,cable ties,silicone tube,pvc tube,wiring,plastic hosepipe,teflon tube,chequered tube,velcro,insulated sleeve,insulation paper,copper foil and so on.It is fit for fixed-scale cutting the banding,strip,tubulous material.

Features

1.Automatic shutdown when lack of material, unattended

2.Automatic group counting & total counting

3.Batch suspension and delay time can be set

4.A variety of manual operation is equipped, convenient for debugging

5.With LCD screen display,it is simple and convenient to operate.

6.This machine can be used to automatically cut any kinds of tubular, ribbon, thread-like material

7.The transmit material is controlled by the computer program,with high speed and the precision can reach at 0.1MM.

8.Equipped with high-speed stepping motor which can exactly control the length you want to cut.The cut length and speed can be adjusted as your need.

9.It can set up a suspend time when finished a cut quantity, and it can stop by itself when completed,no need the woker to watch it.

10.It uses the appropriative mechanical structrue and high speed steel tool bit,at the same time with the appropriative software control system,reach the standard of smooth cutting margin and precise cutting length.

1.Power:220V 50/60HZ

2.Cutting length:0.1-9999.9mm

3.Cutting width:1-100mm

4.Measurement:L360*W300*H350mm

5.Weight:26kgs
