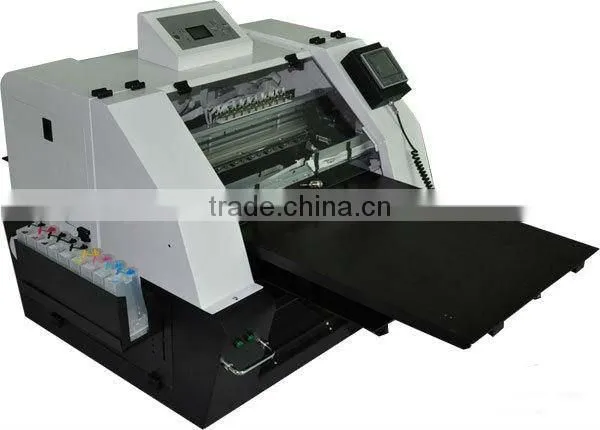

TH-A2 Flatbed Inkjet Color Printer

TH-A2 Flatbed Inkjet Color Printer thumbnail-1
TH-A2 Flatbed Inkjet Color Printer photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Plate Type:
Flatbed Printer
Place of Origin:
Zhejiang, China
Contact Supplier Request Quote Chat Now
Yiwu Tonghe Imp. & Exp. Trading Firm
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo or Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Plate Type Flatbed Printer
Place of Origin Zhejiang, China
Brand Name Tonghe
Model Number TH-A2
Usage Other, All kinds of materials
Automatic Grade Semi-Automatic
Voltage AC220V~240V/AC110V~120V
Gross Power 35W
Dimensions(L*W*H) 115CM*74CM*55CM
Weight 80KG
Certification ISO
After-sales Service Provided Engineers available to service machinery overseas

Print way                               Non-contact ink-jet printing(Micro Piezo printing technology)
Print direction                        Automatic single / bi-directional printing
Nozzle deploys                      Technology 1440 nozzles (180 nozzles*8 color)
Minimum ink droplet size       3.5 pico-liter
Maximum dpi                         2880*1400dpi
Print speed:
A3+(2880dpi)         About 4 munites
Ink deploys:
Ink System                Continuous Refill Ink Type
Colour deploys          Y(T0544)Yellow
                                  M(T0543)Carmine
                                  C(T0542)Cyan
                                  MK(T0548)Rough black
                                  PK(T0541)Photo Black
                                  R(T0547)Red
                                  B(T0549)Blue
Print specification & size:
Maximal print area                              431.8MM*750MM
the height of print up and down         1MM~170MM(Can be designed according to customer demand)
Print shower nozzle distance              1MM~5MM
working environment:
Temperature requirements  10 ~ 35 degrees
Humidity requirements   20~80%RH
Environmental requirements  A relatively dust-free workshop
Wind power  requirements  Wind-force is by no means too heavy
Electric specification:
Rated voltage   AC220V~240V/AC110V~120V
Rated Frequency   50HZ~60HZ
Power consumption  Runtime 35W
Control system:
Jacking system   Stepper electric motor + Screw with belt
Feeding system   Stepper motor with timing belt 3GT Italy
Altitude checks   IC entire automatic monitoring prints altitude
Control mode   Intelligent Germany touch screen
Nozzle Protection  Infrared detection of automatic adjustment
Language   Deligent touch-screen arbitrary switching in foreign languages
Data transmission:
Interface deploy  USB2.0 (high speed)/ IEEE1394
Input buffer   256K
Transmission speed  400MBPS
Equipment size:
External form dimension   115CM*74CM*55CM
Carton dimension             125CM*85CM*85CM
Equipment net weight   80KG
Equipment gross weight   110KG
Random purchase accessories:
Printer Driver CD   EPSONR1800 Drive
Product instruction   The operation guide/ trouble removal waits
The corresponding mapping software Adobe Photoshop CS3, Illustrator, etc.
USB2.0/3M / Transparent Blue  A bar
1.5 M of power source line  A bar
Special use ink   A set of 150 ML (C , M , Y , K , PK , MK , R , B)
Special Coating   One bottle
Warranty Card
Accessories   Needle tube 50 ML/5ML
                     CleaningCleaning liquid / moisturizing liquid
