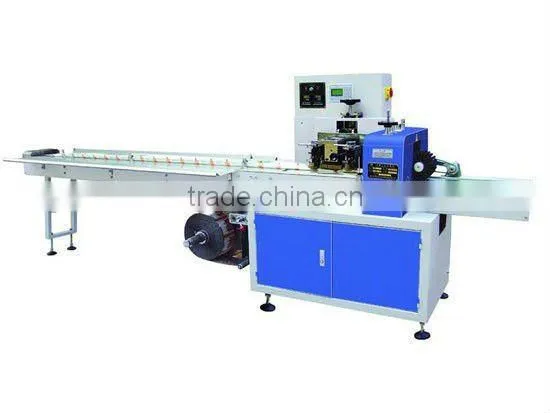

Automatic Horizontal Hotel Disposable Flow Packing Machine (Toothbrush/Soap/Spoon/Fork)

Specifications

Suitable for packing soft,strip & unorganized objects like towels,tissues,noodles,egg rolls,sausages,sleeve-fish,popsicle,etc

Scope of application

Suitable for packaging soft, strip & unorganized objects like towels,

tissues, noodles, egg rolls, sausages, sleeve-fish, popsicle, soft

candies, biscuits, fresh fruits etc.

Features

1.Compact structure, stable function and simple operation.

2.Double frequency converter controller,length of package will cut immediately once setting,adjustment needless, saving time and film

3.It adopts imported electric appliance, touch manmachine interface, convenient arameter setting .

4.Self-checking function,troubles can be read easily.

5.High sensor photoelectric color chart tracking, make the cutting position more correctly.

6.Dependant temperature PID controlling suitable for variousmaterials of packaging mambrane.

7.Position stop function,no adhesive and no waste o membrane.

8.Clean rotation system, more reliable operation and more convenient maintenance

9.All the controlling operates by the software, convenience for function adjustment and technical up grading.

Main Technical Parameters

Model	TH-260B	TH-260D	TH-180S
Film Width	Max.260mm		Max.180mm
Bag Length	65-190mm/120-280mm	90-220mm	45-90mm
Bag Width	30-110mm		30-80mm
Product Height	Max.40mm	Max. 55mm	Max.35mm
Film Roll Dia.	Max.320mm
Packing Speed	5-240bags/min.		10-330bags/min.
Power	220V,50/60HZ,2.4Kw
Overall Dimensions	(L)4000×(W)920×(H)1500mm
Weight	About 460Kg
Remark	Optional Air filling device
