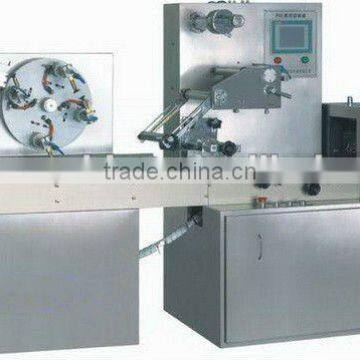

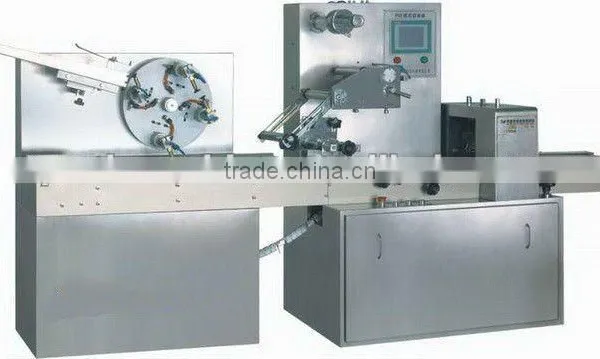

Automatic High Speed Chewing Gum Medical Patches Packing Machine

Specifications

Automatic High Speed Chewing Gum And Patches Packing Machine
Applied to feed automatically for cards,chewing gum,stickers

Applications

 It is applied to feed automatically for cards,chewing gum,stickers & patches,etc

Features
1. Dual frequency conversion control, bag length can be set and cut in one step, saving time and film.

2. It adopts imported electric appliance, man-machine touch interface,convenient parameter setting.

3.Compact structure,stable function & simple operation;
4. Self failure diagnosis, clear failure display.
5. High sensitivity photoelectric eye color tracing, numerical input of cutting.
6. Temperature independent PID control, more suitable for packaging different materials.
7. Positioned stop function, without sticking knife or wasting film.
8. Simple driving system, reliable working, convenient maintenance.
9. All control is realized through software, easy for function adjusting and technical upgrading.

Specifications

Type	TH-250C
Finished Bag Length	65-110mm
Finished Bag Width	30-280mm
Finished Bag Height	5-40mm
Sealing Strength	>15N/mm2
Film Width	80-250mm
Packaging Speed	40-230bags/min.
Voltage	220v 50/60Hz 2.4kw
Overall Dimensions(L*W*H)	3780*640*1560mm
Machine Weight	About 800kg
