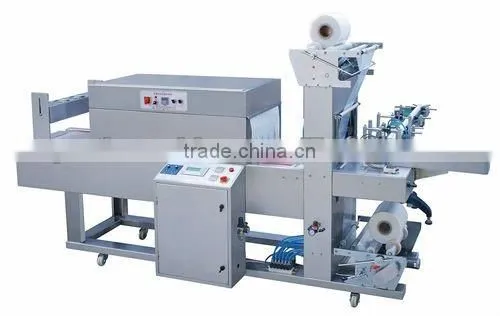

Automatic Heat Shrink Wrapping Machine For Medicine Bottle,Pill Box,Cosmetics Box

Automatic Heat Shrink Wrapping Machine For Medicine Bottle,Pill Box,Cosmetics Box photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Application:
Commodity
Packaging Type:
Cartons
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo or Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Application Commodity
Packaging Type Cartons
Packaging Material Plastic
Automatic Grade Automatic
Driven Type Electric
Voltage 380V
Power 9.5kw
Place of Origin Zhejiang, China
Brand Name Tonghe
Model Number TSP-600A
Weight 600KG
Certification CE/ISO
After-sales Service Provided Engineers available to service machinery overseas

Specifications

This machine can be used in the pharmaceutical, food, stationery, cosmetics for packing Bottles or tins in single or multi-row.

Use



This machine can be used in the pharmaceutical, food, stationery, cosmetics,etc for packing Bottles or tins in single-row or multi-row; It can be connected and work with auto labeling machine.





Automatic Heat Shrink Wrapping Machine For Medicine Bottle,Pill Box,Cosmetics Box



Features


1.Sleeve packing type

2.Controlled by PLC
3.Packed by shrink film can save manpower and packing material
4.Special transmission structure avoids brokenness
5.Protective device can effectively prevent from wrong cutting
6.Advanced technology of cold cutting reduces consumption of electrical power
7.Hot-air cycling system in the shrinking chamber makes products more compact and beautiful
8.Special conveyor structure can correct deviation completely



Main Technical Parameters



Sealing type

Sleeve Sealing

Power supply

380V/50-60Hz/3phase

Max. Product Size

320(L)*150(W)*200(H)mm

Max. Packing Capacity

25 packs/min.

Film Type

Polyethylene(PE)film

Max.Film Size

400(width)*280mm(outer diameter)

Power Consumption

9.5kW

Tunnel Oven Size

1200mm(L), entrance 450(W)*220(H)mm

Tunnel Conveyor Speed

Variable,40m/min

Tunnel Conveyor

Teflon mesh belt conveyor

Working Height

850-900mm

Air Pressure

≤0.5MPa(5 bar)

PLC

SIEMENS S7

Sealing System

permanently heated seal bar coated with Teflon

Operating Interface

Eview displayer

Machine Material

Stainless steel

Weight

600KG



 Automatic Heat Shrink Wrapping Machine For Medicine Bottle,Pill Box,Cosmetics Box
