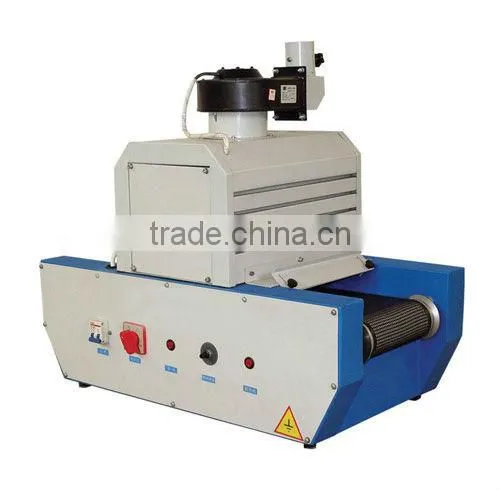

This UV curing machine can be widely used in UV surface paint coating of cellphone cover, disks, thin film switches and electronic plastic outer shells and curing of various UV dope and IMD injection product ink, and it's also can be used for curing electronic elements, liquid crystal plates, terminal glue sealing, handset component conglutination, plastic component conglutination and LCD, and so on.
Features
1. Beautiful shape, light volum, and it can save much space. It is used widely. Reliable quality, safe and easy to operate.
2. Adopts a closed structure and conveyor belt.
3. Import light reflector, the largest refracted UV light. Enhancing drying and curing effect
4. Advanced cooling system ensure the workpiece which is not affected by the temperature and extand lamp life.
Feeding Length |
170 mm |
Discharging Length |
170 mm |
Feeding Height |
232mm |
Feeding Inlet Height |
50mm (adjustable) |
Mesh Width |
200 mm |
Mesh Material |
Imported Teflon |
Lamp Power |
2.0KW/PC |
Lamp Shinning Width |
200 mm |
Lamp Service Life |
Average 1,000 hours |
Irradiation Area |
120-190mm adjustable |
Transmission Motor |
15W |
Exhaust Fan |
20W-1 unit, 40W-1 unit |
Transmission Speed |
0-12m/min |
Voltage |
ONE Phase 220V |
Total Power |
2.2KW |
N.W |
65KG |
Overall Dimensions |
L800*W430*H850mm |
