Creaser Matrix

Specifications

Application: Box making, to make your box or cartons perfectly and precisely.

1.It is made from modern materials with features of long lasting and accurate location;



2.It is effective and reliable matrix for die cutting and creasing, both save time and cost, it will bring you more easy die cutting job.

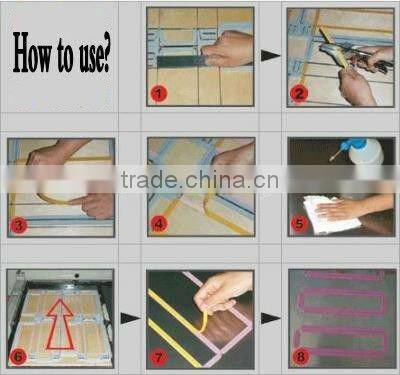

Use Steps





1.Measure the length of the creasing rule;
2.Mark the measurement and cut the matrix;
3.Mount the cut piece onto the creasing rule with locator;
4.Remove all the backing tapes;
5.Clean the counter plate to remove any residue from the previous job;
6.Transfer the matrix and the locator onto the counter plate;
7.Remove the locators.
8.Remove all of the locators.and fixedly all of the creasing

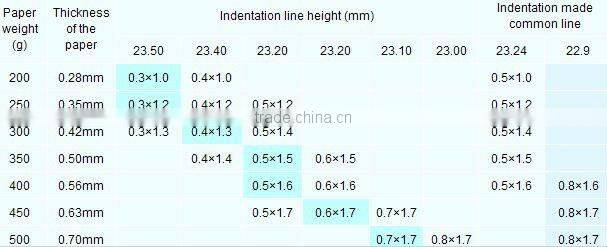

Selection of cardboard in the control (by beer-cutting knife to do a high standard 23.8mm)

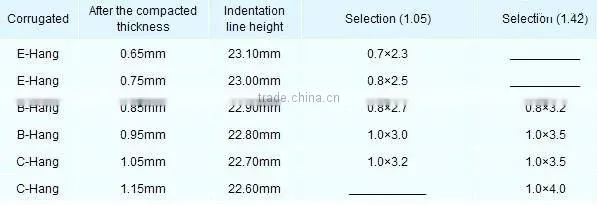

Corrugated selected in the control (by beer-cutting knife to do a high standard 23.8mm)
