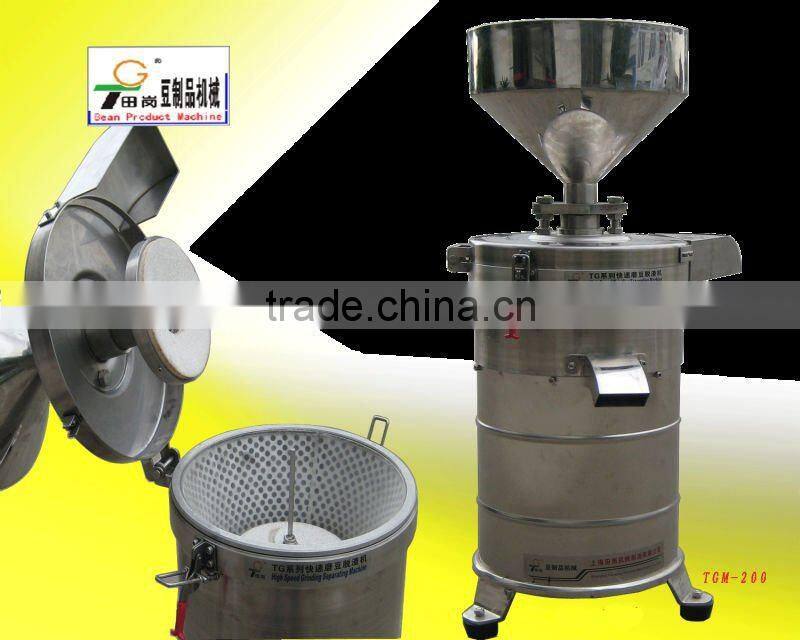

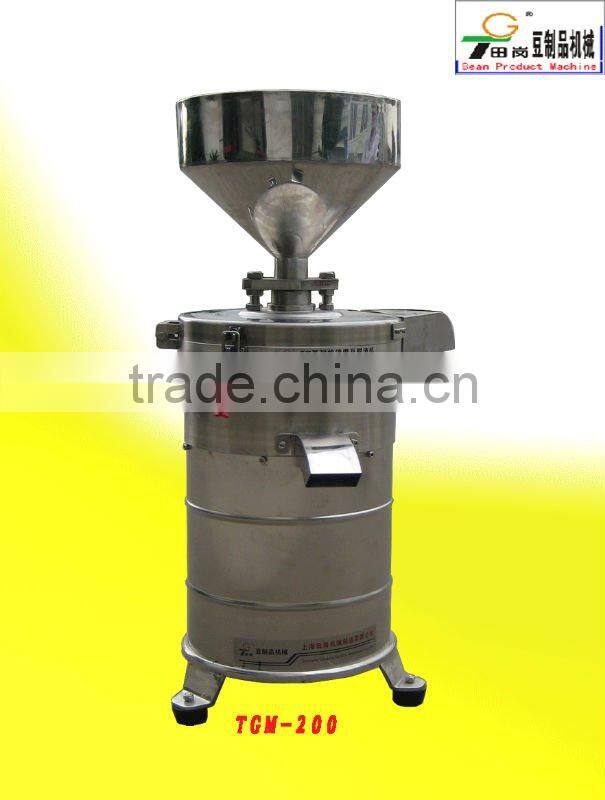

TGM-200 Shanghai High speed Soy Beans Grinding machine

TGM-200   High speed Beans and Rice Grinding machine

input:Soybean 175kgs/hr

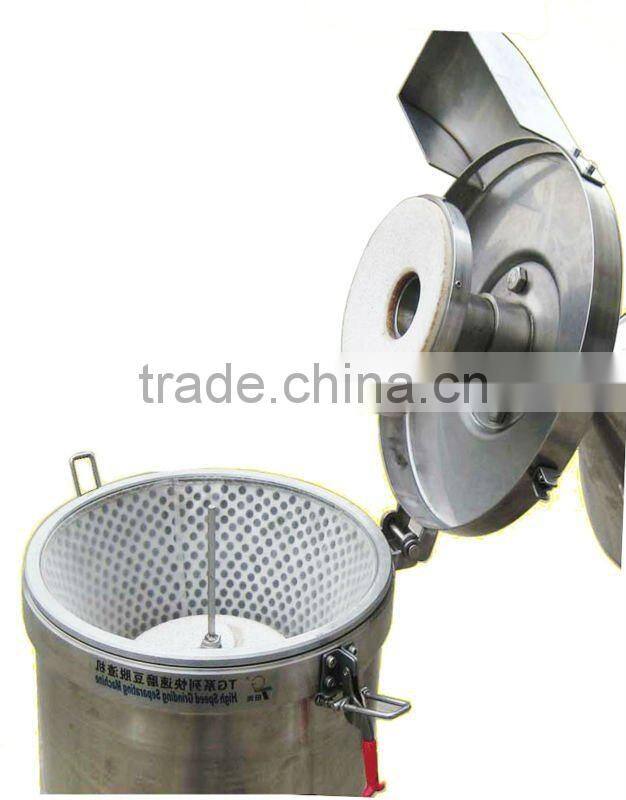

Diameter of the grinding stone :200mm,material of the grinding stone:white corundum.

Power:4kw Voltage:380v/50Hz

filter: 90 mesh

Speed:2800 R.P.M.

Net Weight:95kg

Machine Size :550*500*950mm

High Speed Grinding /Separating Machine
Applications: factories which make bean curd, spiced & dried bean curd, soybean milk, etc.
 Bean grinding, with thickly flavored bean paste emerging all at once, Okara removal accomplished in a single operation, and flaky Okara discharged at the same time.
Employing stainless steel and aluminum alloy, beautiful and endurable, no rust build-up, compact size, space saving and facilitates fast cleaning.
Applications wide and extensive including rice milling ,fine grinding of beans, and the soft-soaking of other items.

Company Introduction

Shanghai Tiangang Machine Manufacture Co., Ltd. integrates design, manufacture, sale and service. We specialize in manufacturing and selling soy bean machinery. Our main products are High speed grinding/separating machines, Commercial soybean Milk Machines, such as soya milk making machines, tofu making machines, dry bean curd machines, Japanese style tofu machines and related equipment.

We can offer soybean soaking & washing, auto exalting, grinding & separating, soymilk cooking & coagulating, forming & U.H.T sterilizing, cooling & packing whole systems.

We have a professional product development team and an after-sales service team. We are able to produce, install and adjust the machines, and can meet the requests of customers.
