JM-80 Shanghai Colloid mill Grains grinding machine
VERTICAL COLLOID MILL MACHINE
Working principle:
The working principle of the colloidal mill is that: Under the effect of centrifugal force and being run by relatively high speed between the rotating gear and the fixed gear, the liquid and the semi-liquid materials is efficiently emulsified, homogenized, dispersed and mixed during the course of being cut, milled and shocked with high frequency. After that you can get the satisfied and processed material.
Application Scope:
The colloidal mill is widely applied in sorts of products of many fields by its advantage such as foodstuffs industry, medicine industry, chemical industry and everyday chemical industry etc.; the products including soybean milk, fruit jam, peanut butter, artificial corn milk, cream, perfumery compound, pigment, greasing oil, dyestuff, pant, fish live oil, pollen, honey, tooth-paste and so on.
Multifunctional grinding machine
Application: Food industry, dairy, juice.
1, convenient to use
2, fine workmanship
3, Thin degree: 2 ~ 50μm

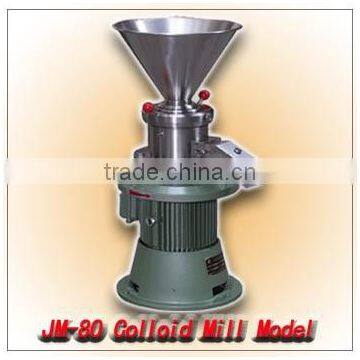

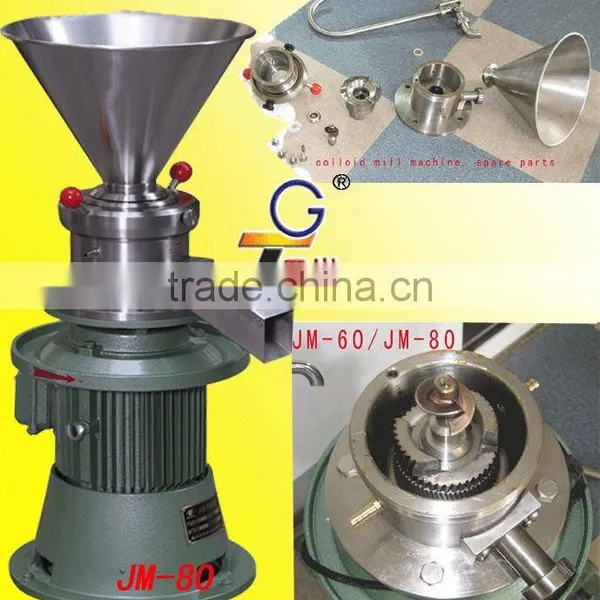

JM-80 colloid mill machine
Voltage: 380/50Hz
Power:4KW
Thin degree:2~50μm
Out put:0.2-1.5t/h (Varies According to Materials pioperteies)
Speed:2880r/min
Size:450*450*800mm
Weight:95kg
Technical Data |
Voltage |
Motor Power |
Input (According to Materials) |
Diameter of the grinding stone |
Weight |
Size |
FE-05 |
220V 50Hz |
1/2HP |
20-50Kg/Hr |
125mm Corundum |
22Kg |
490*299*1033mm |
FE-06 |
220V 50Hz |
1HP |
30-60Kg/Hr |
150mm Corundum |
29Kg |
531*333*1067mm |
FP-05 |
380V 50Hz |
1HP |
30-60Kg/Hr |
125mm Corundum |
29Kg |
500*280*1095mm |
JM-60 |
220V 50Hz |
1.5KW |
0.05-0.5T/Hr |
Conical stainless steel |
45Kg |
300*300*650mm |
JM-80 |
380V 50Hz |
4KW |
0.2-1.5T/Hr |
Conical stainless steel |
95Kg |
450*450*800mm |
JM-120 |
380V 50Hz |
7.5KW |
0.5-2T/Hr |
Conical stainless steel |
150Kg |
550*550*1300mm |
Container Load PCS:
| Model | 20' | 40' | 40'HQ |
| JM-80 | 108 | 224 | 244 |
1,Applications: factories which make bean curd, spiced & dried bean curd, soybean milk, etc.
2,Bean grinding, with thickly flavored bean paste emerging all at once, Okara removal accomplished in a single operation, and flaky Okara discharged at the same time.
3,Employing stainless steel and aluminum alloy, beautiful and endurable, no rust build-up, compact size, space saving and facilitates fast cleaning.
4,Special waterproof of motor and the international standard of CE, UL, CSA, ISO9002.
5,Applications wide and extensive including rice milling ,fine grinding of beans, and the soft-soaking of other items.
Company Introduction
Shanghai Tiangang Machine Manufacture Co., Ltd. integrates design, manufacture, sale and service. We specialize in manufacturing and selling soy bean machinery. Our main products are High speed grinding/separating machines, Commercial soybean Milk Machines, such as soya milk making machines, tofu making machines, dry bean curd machines, Japanese style tofu machines and related equipment.
We can offer soybean soaking & washing, auto exalting, grinding & separating, soymilk cooking & coagulating, forming & U.H.T sterilizing, cooling & packing whole systems.
We have a professional product development team and an after-sales service team. We are able to produce, install and adjust the machines, and can meet the requests of customers.
