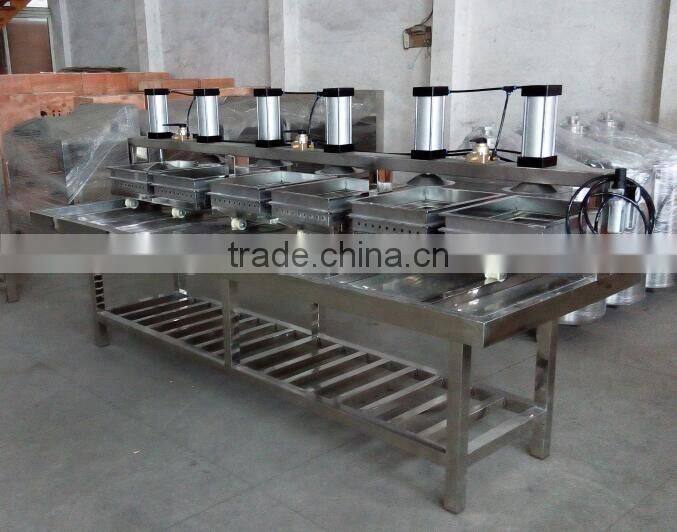

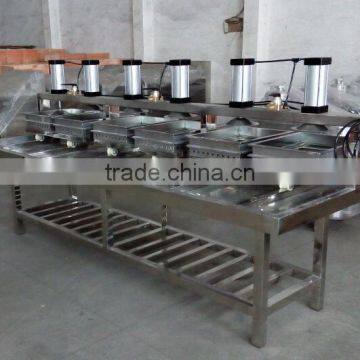

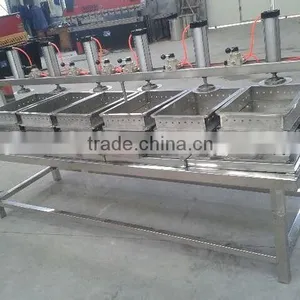

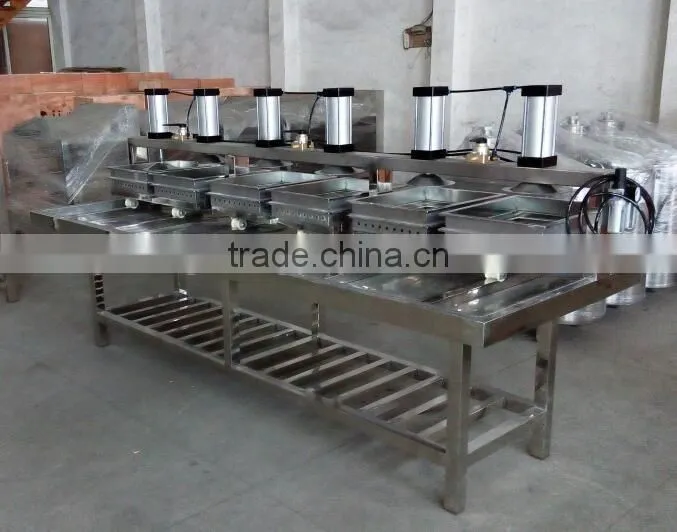

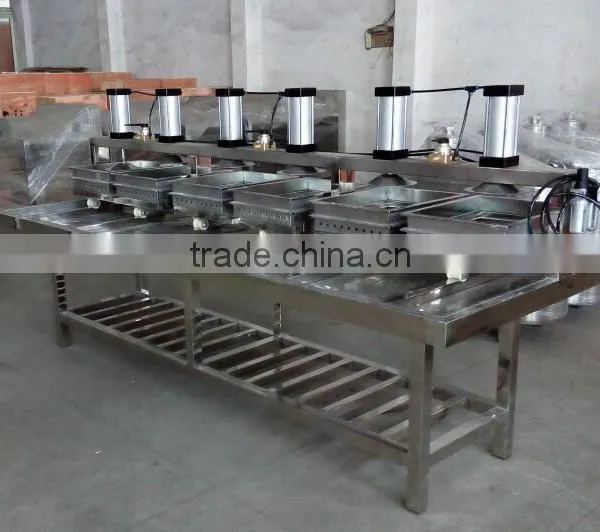

Y-3D3 tofu shaping and tofu machine
Description:
Consist of full stainless steel , rack, tofu mould ,pressure control system and air Compressor .Simple structure, easy to operate, wash convenient , the tofu press height can easy control, the tofu looks nice , production operations save time and strength.
Apply to Beancurd Mill,Large-scale chains shop, canteens, restaurants etc.
Technique datas:
diameter of air cylinder :80mm, route:150mm
Maximun pressure:0.8MPa
tofu mould:460*460*60mm
machine size:3500*980*1300mm
Y-3D3 can press Six mould once only.
Divided into three groups switch control
Mark:not include the air pump
Tofu Pressing Forming Machinery
Technical Data |
Pressure mode |
Table size |
Pressure stroke |
Maximum pressure |
Weight |
Size |
Y-4 |
Hoisting jack |
580*600mm |
400mm |
10T |
30Kg |
600*680*1300mm |
Y-6 / 6A |
Hydraulic pump |
600*800mm |
500mm |
16T |
50Kg |
800*850*1950mm |
Y-5 / 7 |
Air compressor |
Customized |
500mm |
0.8Mpa |
120Kg |
750*1250*1950mm |
Y-8 |
Hydraulic pump |
Customized |
500mm |
16T |
250Kg |
850*800*1950mm |
Tofu Pressing Forming Machinery
Technical Data |
Pressure mode |
Tofu Box Size |
Forming Quantity |
Weight |
Size |
Y-1 |
Hand operated |
320*420*80mm |
A box |
30Kg |
610*580*1200mm |
Y-2 |
Air compressor |
320*420*80mm |
A box |
50Kg |
610*580*1200mm |
Y-3 |
Air compressor |
320*420*80mm |
Two boxes |
120Kg |
950*950*1350mm |
Customized |
Air compressor |
According to demand |
Six boxes |
250Kg |
950*3000*1350mm |

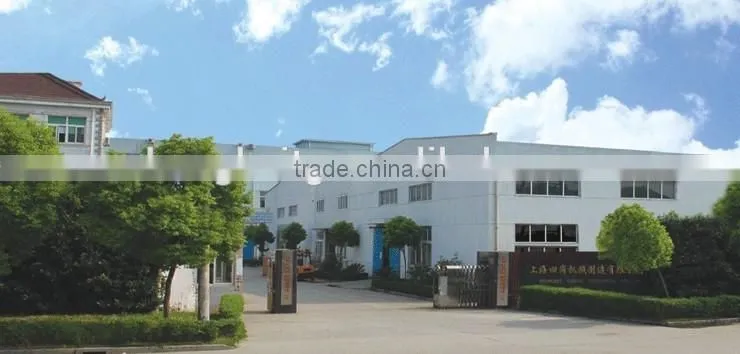

Company Brief:
Shanghai Tiangang Machine Manufacture Co., Ltd. Integrates design, manufacture, sale and service. We specialize in manufacturing and selling soy bean machinery. Our main products are High speed grinding/separating machines, Commercial soybean Milk Machines, such as soya milk making machines, tofu making machines, dry bean curd machines, Japanese style tofu machines and related equipment.
Our superiority:
We are manufacturer.we design it and produce it by ourselves, we could offer customers
more supports and more professional service.You could rest 100% assure by buying it
from us,because we could supply you with technical support.And we could help you to
fix problems.
Support Service:
we would offer 1year warranty,we would supply you the parts of cost price in 2 years. And
we would supply you with technical support.
