PS: When you interested in this machine. You should send us the sample (Size and shape ) of the box or bag that you would like to pack the Tofu or Soya milk, so could we design the modul for you.

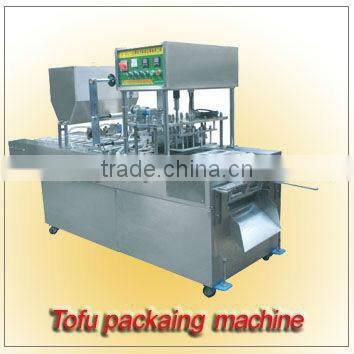

T-01/ 02 automatic soybean milk filling & sealing machine

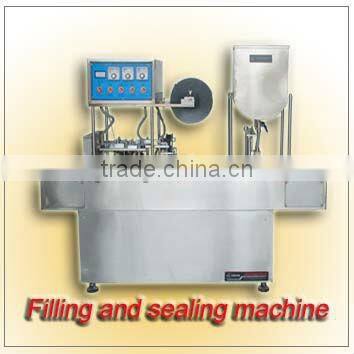

Cassette filling and sealing machine
The machine is suitable for a variety of shapes, plastic box container of liquid filling, sealing, trimming, automatic temperature control, waste suction volume, date printing. The factory will be designed according to user needs a different mold, filling, sealing, and so on.
This model can increase: with optical detection and falling cup device.
Technical data
Filling efficiency: 12 beats / min
Seal film width: 200mm Power 220V/50Hz
Drive motor power: 1.1KW
Coder Power: 40W
Thermostat range 0 °C -300 °C
Dimensions (L × W × H) 1800 × 530 × 1500mm
With photoelectric tracking models: size 2200 × 530 × 1500mm, need another with air pump.
Custom production according to customer demand, the customer must provide the specifications of the box or cup samples.
This series is made of stainless steel and is designed to meet the needs to can drinks into plastic bottles and cups of various shapes and the to seal , cut the edge , automatically control the temperature , print the production date and to sterilize with ultraviolet lay ,it is mainly used in the industries like :drinks , tofu , jelly , fruit juice , milk and cold drinks
Technical Data |
Voltage |
Motor Power |
Input |
Package pattern |
Weight |
Size |
SJY1000 |
220V 50Hz |
2kw |
15-30Kg/Hr |
packing bags |
360Kg |
750*700*1700mm |
DZ500/Z |
380V 50Hz |
2.8kw |
1-3 Patch/min |
Vacuum packing bags |
220Kg |
720*1200*965mm |
T-01 |
220V 50Hz |
3.5kw |
720Box/Hr |
boxed container |
350Kg |
1800*500*1550mm |
T-02 |
220V 50Hz |
3.5KW |
1440Cup/Hr |
Plastic cup |
400Kg |
2100*500*1550mm |
Hand operated |
220V 50Hz |
270W |
200-400Cup/Hr |
Plastic cup |
22Kg |
270*400*590mm |
Company Introduction.
Shanghai Tiangang Machine Manufacture Co.Ltd. has been engaged in manufacturing soybean processing machine for decades .Our products are widely used all over the world . Mainly including grinding machine,commercial soymilk machine,instant tofu making machine,dried tofu and many other soybean processing machine . Also,we can provide whole sets of soymilk and tofu processing line, consist of soybean soaking,suction of soybeans,grinding and separating,cooking,breaking,pressing and sterilization.
What’s more, we can design all kinds of machine according to customers’ special requirements. Our salesmen as well as engineers are know very well about our products,they will serve you with all their profession and sincerity.
Looking forward to cooperating with you in the near future !
