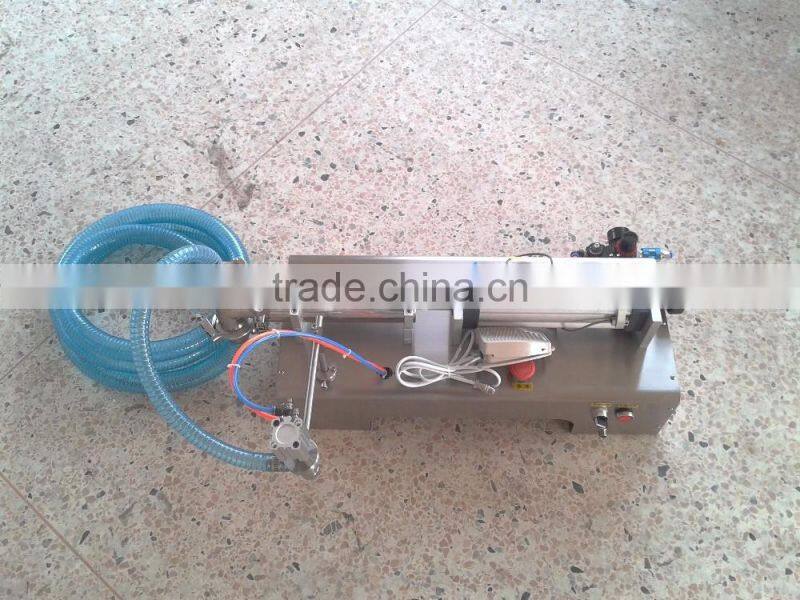

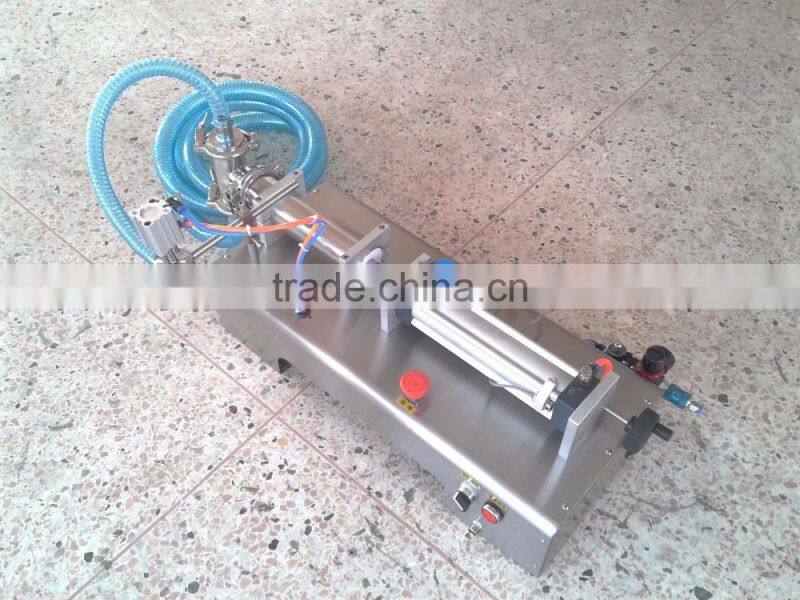

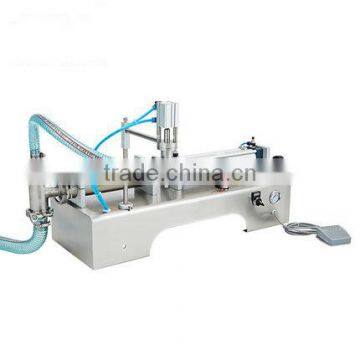

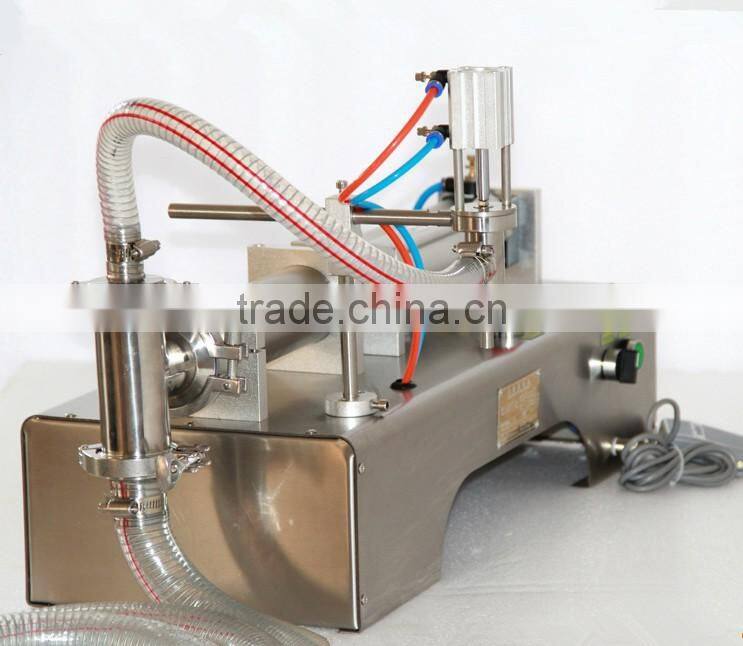

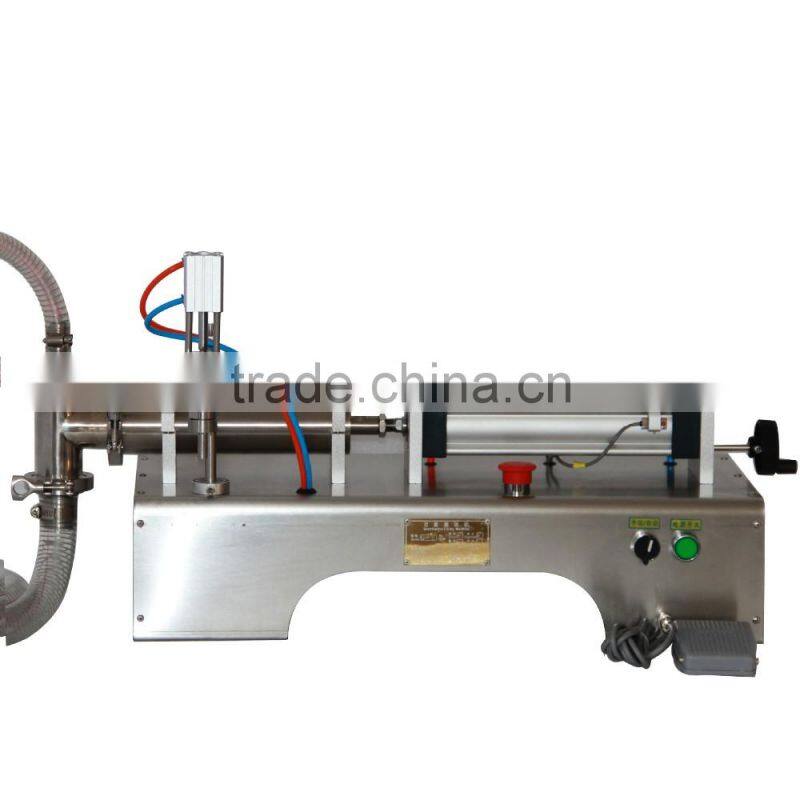

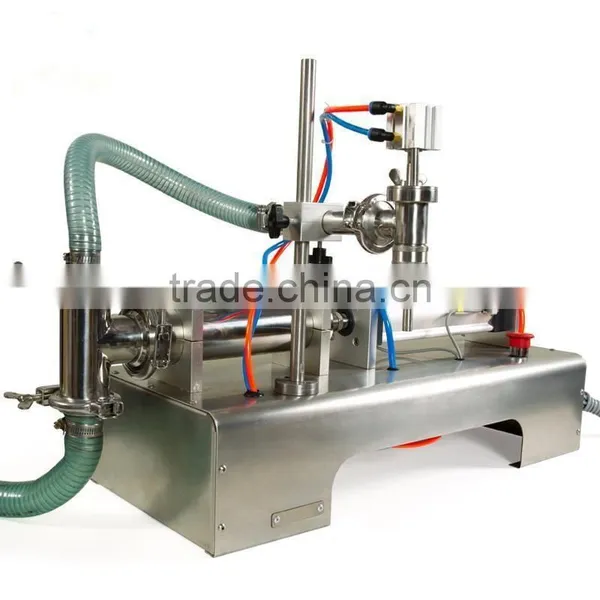

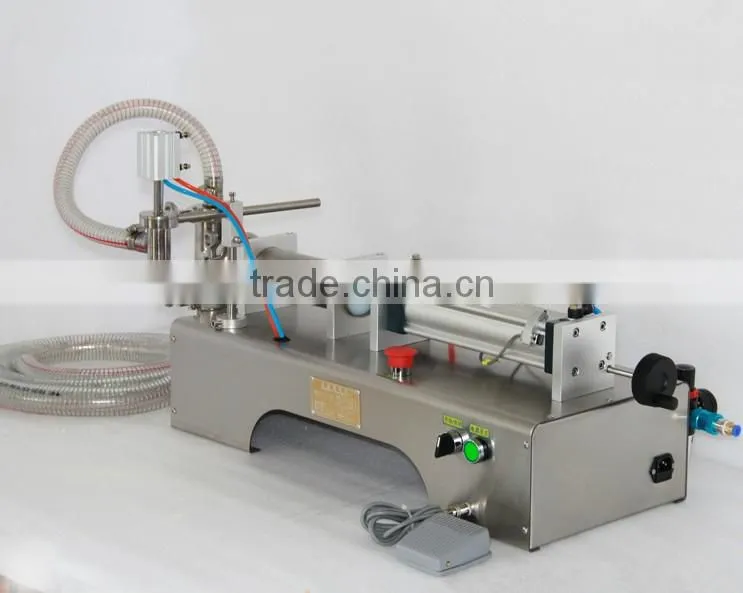

Hot sale semi automatic single head liquid filling machine for oil,perfume,mineral water,juice,soy milk G1WY
Parameters:
| Machine model | G1WY-100 | G1WY-300 | G1WY-500 | G1WY-1000 | G1WY-2500 | G1WY-5000 |
| Filling range | 5-100ml | 10-300ml | 50-500ml | 100-1000ml | 300-2500ml | 1000-5000ml |
| Filling speed | about 8-15 bottles/min | |||||
| Filling error | ≤±1% | |||||
| Voltage | AC 220V 50Hz / 110V 60Hz | |||||
| Air pressure | 1.5Hp air compressor ; 0.4-0.6mpa air pressure | |||||

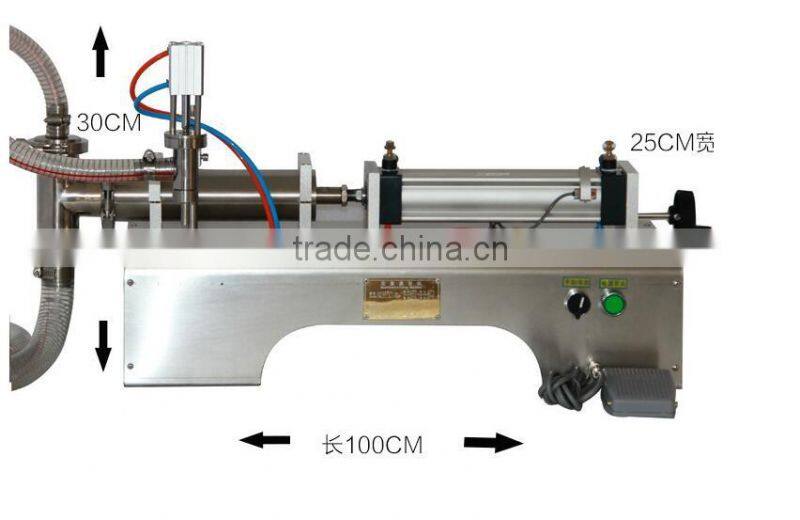

| Dimension(cm) | 86*29*30 | 86*30*30 | 89*33*32 | 92*34*32 | 94*35*38 | 95*48*45 |
| Net weight | 31kg | 32kg | 33kg | 35kg | 42kg | 50kg |
Application:
Piston type G1WY series liquid filling machine is drivened by electricity and air compressor,is suitable for filling good liquidity products,such as water, oil, beverage, juice, drink, oil, shampoo, perfume etc,widely applied to food,commodity,cosmetic, medicine, agriculture etc,it is an ideal quantitative liquid filling equipment for small and medium-sized enterprises.
Advantages:

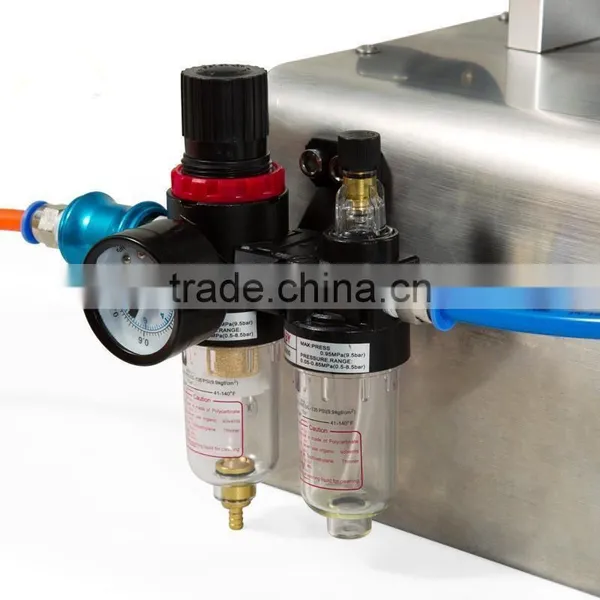

1. Adopts high end gas-pressure meter,operation is more accurate.
2. Machine dynamic structure section adopts Germany FESTO and Taiwan AirTAC etc pneumatic components,material contact parts are made of 304L stainless steel,meet GMP approval request.

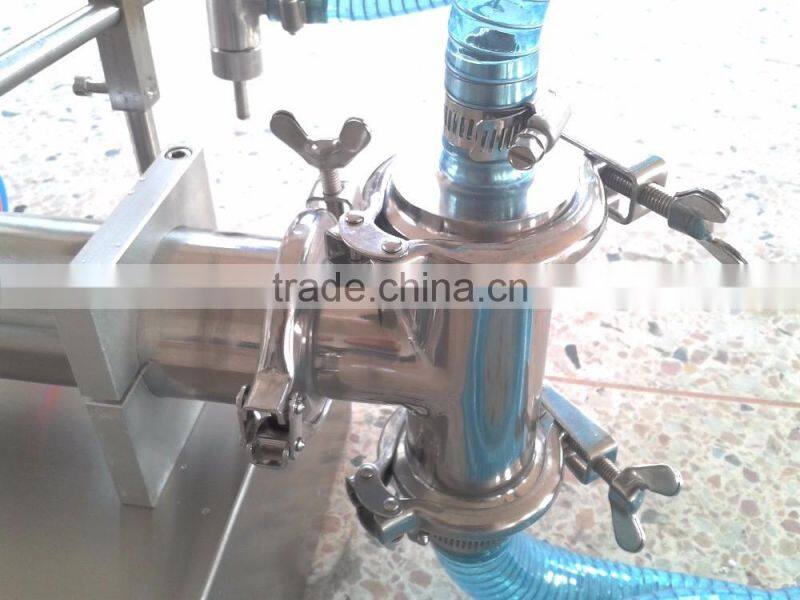

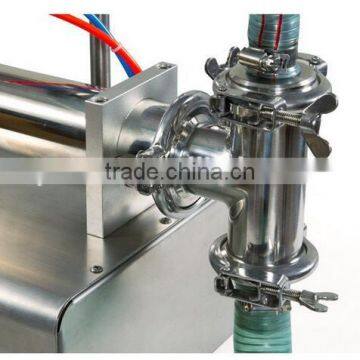

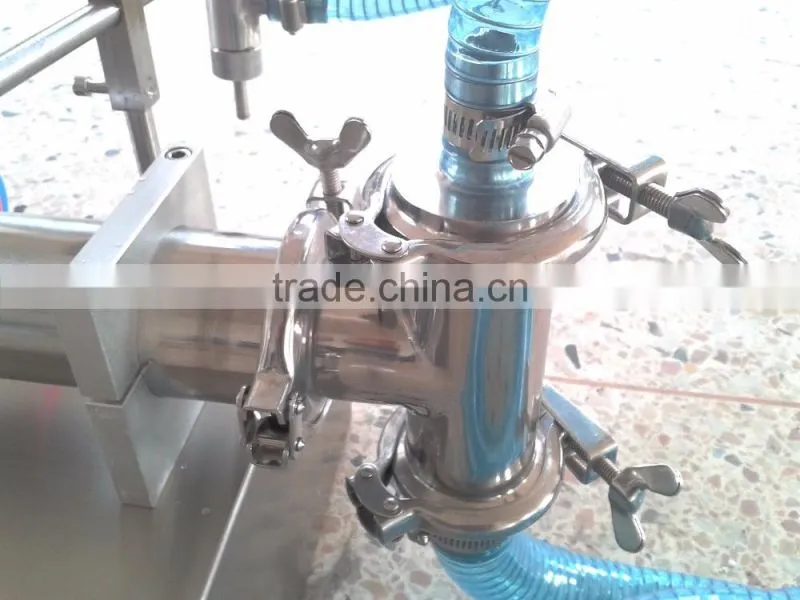

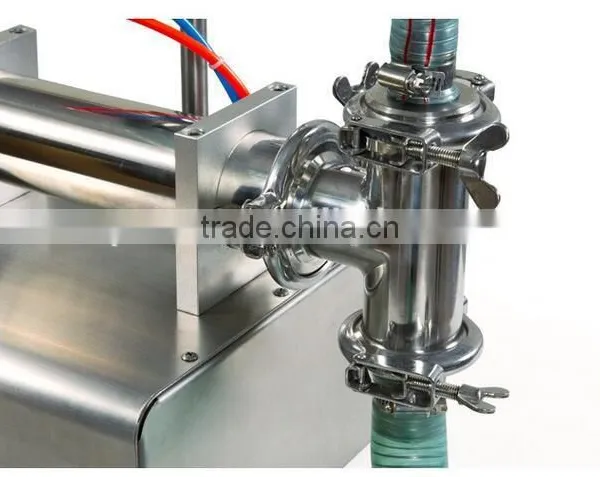

3. Precise check valve,long working life,ensure filling product can run smoothly.
4. Filling accuracy is high,within filling range,the filling volume and filling speed can be set at your option.

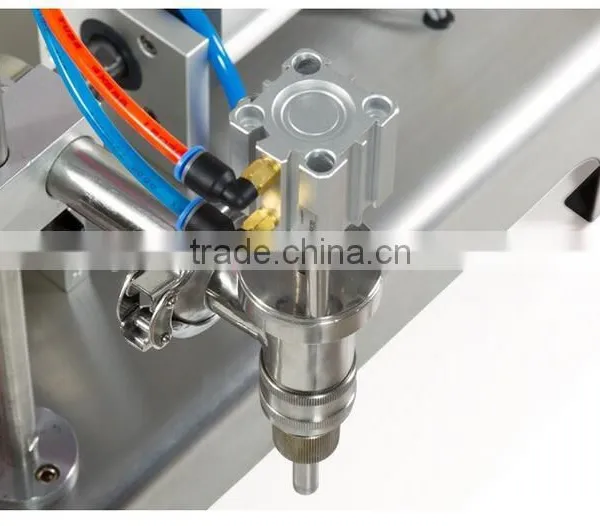

5. Filling heads adopt drip-proof and lifting filling device.
Working Principle
semi-automatic liquid filling machine piston filler. Driven by a cylinder and piston made from materials with FIVE-way valves control the flow of materials, and magnetic reed switch control cylinder itinerary can be regulated filling volume.
Rational design of the aircraft, model compact, easy to operate, are used pneumatic part of Germany and Taiwan AirTac FESTO the pneumatic components.
Some contact materials are used 316 L stainless steel materials, in line with the GMP requirements.
Filling volume and speed of filling can be arbitrary regulation, filling high
| Packaging details | Standard export packing, major products using export plywood case packing, small products use thick carton packing, ensure that the product packaging integrity and safety; |
| Shipping methods | 1. Shipping by sea(recommend big product or a lot of goods of the order) |
| 2. By air | |
| 3. By express: TNT, EMS, DHL, Fedex, UPS etc |
Q: Are you a factory or a trading company?
A: We are factory manufacturing packaging&printing machines and we provide perfect OEM and after-sale service.
Q: Can you send me the video to show how the machine works?
A: Certainly, we have made a video of every machine and uploaded them to Youtube.
Q: Is this machine a pneumatic machine?
A: We have a full pneumatic machine, electric pneumatic machine. It depends on customer's interest.
Q: I need an SUS316 machine, can you customize it?
A: Yes, SUS304 SUS316 are both customize-support.
Q: I need a machine with 6 heads, can you customize it, too?
A: Yes, 2, 4, 6, 8, 12 heads machine are all customize-support.
Q: My products need to be stirred, heated, can this machine do these?
A: We can add stirring, heating device on the machine to achieve these.
Q: What is the filling range of this machine?
A: 50~600ml. The maximum model can fill 5000ml.
Q: What can I fill with this machine?
A: Liquids as water, juice, oil (low viscosity) , soybean sauce, non-corrosive chemical liquid etc.
Q: How can I pay my order?
A: We accept T/T, Western Union, Alibaba Online Payment to pay. For those orders less than 1000USD, we accept PayPal to pay.
Q: Do you have a CE certificate?
A: For every model of machine, it has a CE certificate.
Quality Guarantee & Service:
1. Each machine is manufactured by professional experienced staff.
2. The production process is under strict supervision and adopts China and the world most top production engineering.
3. The warranty time is one year. Quick-wear part is excluded.
4. When warranty date expires, lifetime maintenance service is provided.
5. We can also offer PVC, PE films, BOPP films, stamping dies, hot foil papers etc.
Why You choose Us:
1.Factory manufacturer with competitive price,
2.over ten years' experience, we guarantee a higher quality and Techniques than others.
3.Long-term consultation and after-sale service,also provide videos directions.
4.Much more discount for done dealt customer for second purchase.
5.A very detailed manual operation in Chinese-English
6.With 24 hours online consulting service.
Price governs while the quality is the same.
Service governs while the price equals.
Vpower MACHINERY promise to offer perfect after-sale service!
