Specifications
industrial wood chipper:1. feed size: 180*500mm
2. capacity: 10 cubic meter
3. main power: 55kw
4. wood chi
Specifications
industrial wood chipper: 1. feed size: 180*500mm 2. capacity: 10 cubic meter 3. main power: 55kw 4. wood chip size: 2-8 mm

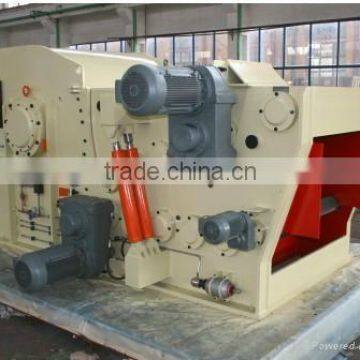

BX216 industrial wood chipper,drum wood chipper,drum rotary wood chipper
Specification:
1. It is the professional equipment for wood chips production process and used extensively in pulp and paper mills, which can be used as part of the wood handling process .
2. Material handled by this series of Drum Chipper includes raw wood logs, small diameter wood, residual material from wood harvesting( branches, twig), left over from timber processing( lath, slab, core, wood waste, etc.)
3. It is simple to operate, high throughput, wide adaptability of raw materials, produces high chips quality, reliable and safe, easy to maintain, and are the most advanced chippers currently available in China.
Our high quality equipments are complemented by high quality mechanical and electrical components: SKF bearings, SEW gear reducers, Siemens Control, HMI interface, FESTO hydraulic parts.
Main Technical Parameter:
Model | BX215 | BX216 | BX218 | BX2113 |
Inlet Size(m) | 160*400 | 230×500 | 300×680 | 450×700 |
Knife No.(pc) | 2 | 2 | 2 | 3 |
Knife roller rotate speed(rpm) | 592 | 590 | 650 | 500 |
Max Dia of raw material(mm) | 160 | 230 | 300 | 450 |
Wood chips size(mm) | 30 | 30 | 30 | 38 |
Capacity(t) | 3-4 | 7-8 | 12-15 | 15-30 |
Main Motor Power(kw) | 45 | 55 | 110 | 220 |
Feeder Motor Power(kw) | 2.2-3 | 3-4 | 4-5 | 7.5*2 |
Oil Pump Motor Power(kw) | 1.5×1 | 1.5×1 | 1.5×1 | 3*1 |
Weight(kg) | 2990 | 4070 | 7000 | 11840 |
Overall Dimension(mm) | 1470×1550×970 | 1800×1900×1210 | 3980×2150×1900 | 3670x2517x2050 |
Conveyor Motor Power(kw) | 3 | 3 | 3 | 3 |
