DC Converter 12V/24V(8.5-40V) To DC 5V/3A/15W, Open End

Parameters

Product Type: KREE-1224-5-15W

Input voltage: DC12V / 24V (Wide Voltage 8.5V-40V)

Output Voltage: DC: 5V
Output current: 3A, power 15W,Peak 4A 2A recommend the following long-term work better.

Full power, high conversion rate: more than 90%, the power consumption 20MA

Ripple: 40MV, adapt to the environment temperature: -40 ℃ ~ + 85 ℃ industrial grade,Waterproof and shockproof, ABS flame retardant plastic casing, epoxy potting.

Protection: Enter the instant pressure, output over-current, output short circuit, chip overheating protection.

Welding wire mode, the connection as follows:

Input: red (+) black line (-)

Output: the yellow line (+) black line (-)

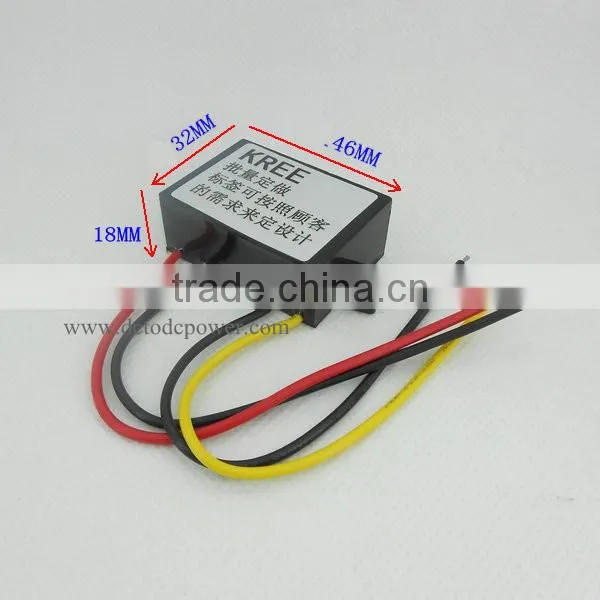

Slim volume: 46 * 32 * 18MM (L * W * H)
Weight: 53 g / month
Sale: normal use, shelf life of one year.

Pictures
